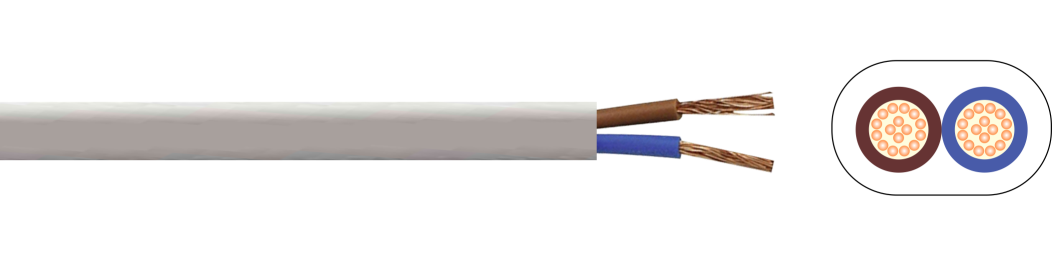

H03VVH2-F Flexible Power Cable

H03VVH2-F Flexible Cable

Application:

Cable Standards:

Light duty cable for use
in domestic premises, kitchens and offices.

For use as pendant light drops and light supply leads.

EN 50525-2-11, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Product Description:

Conductor

Class 5 flexible copper

Insulation

Polyvinyl Chloride (PVC)

Sheath

Polyvinyl Chloride (PVC)

Characteristics:

Voltage Rating Uo/U

300/300V

Temperature Rating

+5°C to +70°C

Minimum Bending Radius

Fixed: 8 x overall diameter

Core Identification:

2 Core:

Blue

Brown

Sheath Colour

White

Black

Dimensions:

Zion Code

No. Of
Cores

Nominal Cross Sectional Area(mm²)

Nominal Overall
Diameter
(mm)

Nominal Weight
(mm)

H03VVH2-F2x0.5

2

0.50

0.6

3.35x5

30

H03VVH2-F2x0.75

2

0.75

0.6

3.5x5

37

Conductors:

Nominal Cross Sectional Area(mm²)

Maximum Diameter
Of Wires In Conductor

MAXIMUM RESISTANCE OF CONDUCTOR AT 60ºC
ohms/km

Plain Wires

Metal-Coated Wires

0.5

0.21

39

40.1

0.75

0.21

26

36.7

The above table is in accordance with BS EN 60228 (previously BS 6360)

Current Carrying Capacity

Nominal Cross Sectional Area  (mm²)

Current Carrying Capacity Amps

Maximum Mass Supportable
By Twin Flexible Cord
 Kg

Single-Phase AC

Three-Phase AC

0.5

3.0

3.0

2

0.755

6.0

6.0

3

The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations.

Voltage Drop:

Nominal Cross Sectional Area  (mm²)

DC Or Single-phase AC
(mV/A/m)

Three-phase AC
(mV/A/m)

0.5

93.0

80.0

0.75

62.0

54.0

Conductor operating temperature: 60ºC
The above table is in accordance with Table 4F3B of the 18th Edition of IEE Wiring Regulations BS7671 and IEC 60364-5-52.
