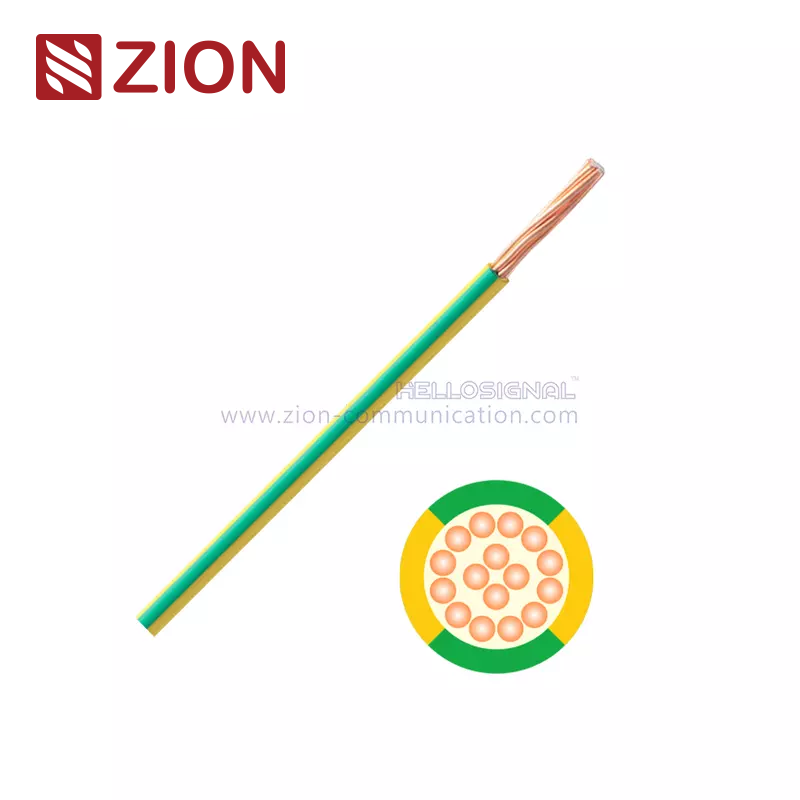

H05V-K / H07V-K Flexible Cable

H05V-K / H07V-K Flexible Cable

Application:

Cable Standards:

PVC panel wiring for use in the switch control, relay and
instrumentation panels of power switchgear and for purposes
such as internal connectors in rectifier equipment, motor
starters and controllers.

EN 50525-2-31, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Product Description:

Conductor

Class 5 flexible copper

Insulation

PVC (Polyvinyl Chloride)

Characteristics:

Voltage Rating Uo/U

H05V-K: 300/500V

H07V-K: 450/750V

Temperature Rating

-30°C to +70°C

-5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Core Identification:

1.5mm2 & 2.5mm2

Brown

Black

Green/Yellow

Grey

Blue

Violet

White

Orange

4mm2 upto 300mm2

Brown

Black

Green/Yellow

Grey

Blue

400mm2, 500mm2 & 630mm2

Green/Yellow

Should not be installed at temperatures below 0°C or above +40°C

H05V-K Dimensions:

Nominal Cross Sectional Area (mm²)

Nominal Cross Sectional Area  (mm²)

Nominal Overall Diameter Area  (mm)

NOMINAL WEIGHT
kg/km

H05V-K0.5

0.5

2.2

9.0

H05V-K0.8

0.8

2.4

11.0

H05V-K1.0

1.0

2.5

14.0

H07V-K Dimensions:

Nominal Cross Sectional Area (mm²)

Nominal Cross Sectional Area  (mm²)

Nominal Overall Diameter Area (mm)

NOMINAL WEIGHT
kg/km

H07V-K1.5

1.5

2.9

20.0

H07V-K2.5

2.5

3.6

31.0

H07V-K4.0

4.0

4.1

46.0

H07V-K6.0

6.0

4.7

75.0

H07V-K10

10.0

6.1

125.0

H07V-K16

16.0

7.3

199.0

H07V-K25

25.0

9.0

299.0

H07V-K35

35.0

10.2

421.0

H07V-K50

50.0

12.1

539.0

H07V-K70

70.0

13.8

730.0

H07V-K95

95.0

16.3

973.0

Conductors:

Nominal Cross Sectional Area  (mm²)

Maximum Diameter
Of Wires In Conductor
(mm)

Maximum Resistance Of Conductor At 20ºC

Plain Wires

Metal-Coated Wires

0.50

0.21

39.000

40.100

0.75

0.21

26.000

26.700

1.00

0.21

19.500

20.000

1.50

0.26

13.300

13.700

2.50

0.26

7.980

8.210

4.00

0.31

4.950

5.090

6.00

0.31

3.300

3.390

10.00

0.41

1.910

1.950

16.00

0.41

1.210

1.240

25.00

0.41

0.780

0.795

35.00

0.41

0.554

0.565

50.00

0.41

0.386

0.393

70.00

0.51

0.272

0.277

95.00

0.51

0.206

0.210

The above table is in accordance with EN 60228

Current Carrying Capacity

Nominal Cross
Sectional Area

In A Thermal Insulated Wall
Amps

On A Wall
Amps

In Free Air
Amps

2 Core

3 Core

2 Core

3 Core

1 Core

0.50

-

-

-

-

-

0.75

-

-

-

-

15

1.00

-

-

-

-

19

1.50

14.5

13.5

17.5

15.5

24

2.50

19.5

18

24

21

32

4.00

26

24

32

28

42

6.00

34

31

41

36

54

10.00

46

42

57

50

73

16.00

61

56

76

68

98

25.00

80

73

101

89

129

35.00

99

89

125

110

158

50.00

119

108

151

134

198

70.00

151

136

192

171

245

95.00

182

164

232

207

292
