ZR-RV Fire resistonce cable

▉ Application

This cable is suitable for controling and connecting electrical equipmen↑s and used as control and connecting cables in mechanical equipments. It apply to power distribu↑ion box or be used as electronic cable for transmission.

▉ Cable Construction

Conductors:  flexible stranded copper wire

Insulation:Heat and flame resistant PVC

Color:black,white,blue,red,green,yellow,yellow/green ect.

Produet reference standard:GB/T5023; GA 306.1

▉ Product Feature

    Good performance of flame retardant

    Good mechanical properties

    ZR-RV:Fire resistance meets GA306.1

▉ Technical data

      Temperature Range

Static    : -15℃~＋70℃

     Rated Voltage

IEC/VDE  ＜ 1.5mm² ;300/500V

IEC/VDE  ≥ 1.5mm² ;450/750V

     Test Voltage

＜ 1.5mm² : 2000V/5min;

≥1.5mm² : 2500V/5min;

▉ Cross Section

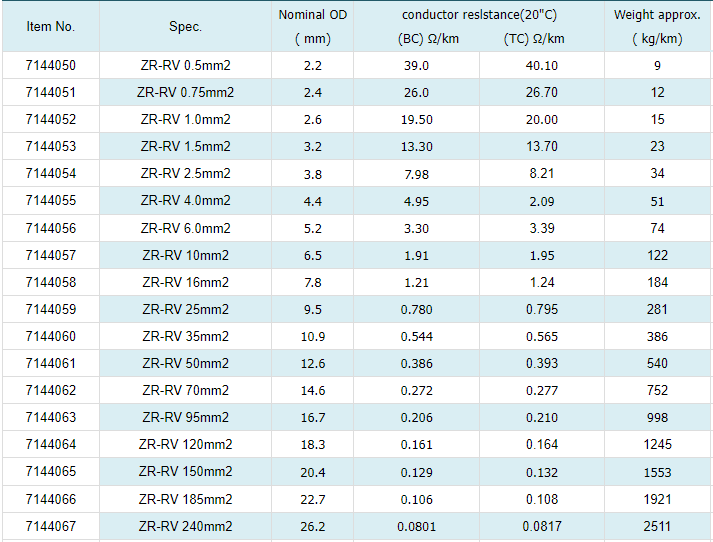

▉ Product List

Item No.

Spec.

Nominal OD
( mm)

conductor reslstance(20"C)
 (BC) Ω/km           (TC) Ω/km

Weight approx.
( kg/km)

7144050

ZR-RV 0.5mm2

2.2

39.0

40.10

9

7144051

ZR-RV 0.75mm2

2.4

26.0

26.70

12

7144052

ZR-RV 1.0mm2

2.6

19.50

20.00

15

7144053

ZR-RV 1.5mm2

3.2

13.30

13.70

23

7144054

ZR-RV 2.5mm2

3.8

7.98

8.21

34

7144055

ZR-RV 4.0mm2

4.4

4.95

2.09

51

7144056

ZR-RV 6.0mm2

5.2

3.30

3.39

74

7144057

ZR-RV 10mm2

6.5

1.91

1.95

122

7144058

ZR-RV 16mm2

7.8

1.21

1.24

184

7144059

ZR-RV 25mm2

9.5

0.780

0.795

281

7144060

ZR-RV 35mm2

10.9

0.544

0.565

386

7144061

ZR-RV 50mm2

12.6

0.386

0.393

540

7144062

ZR-RV 70mm2

14.6

0.272

0.277

752

7144063

ZR-RV 95mm2

16.7

0.206

0.210

998

7144064

ZR-RV 120mm2

18.3

0.161

0.164

1245

7144065

ZR-RV 150mm2

20.4

0.129

0.132

1553

7144066

ZR-RV 185mm2

22.7

0.106

0.108

1921

7144067

ZR-RV 240mm2

26.2

0.0801

0.0817

2511

▉ Order Informations

Marking

HELLOSIGNAL Fire resistonce cable(ZR-RV) XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
