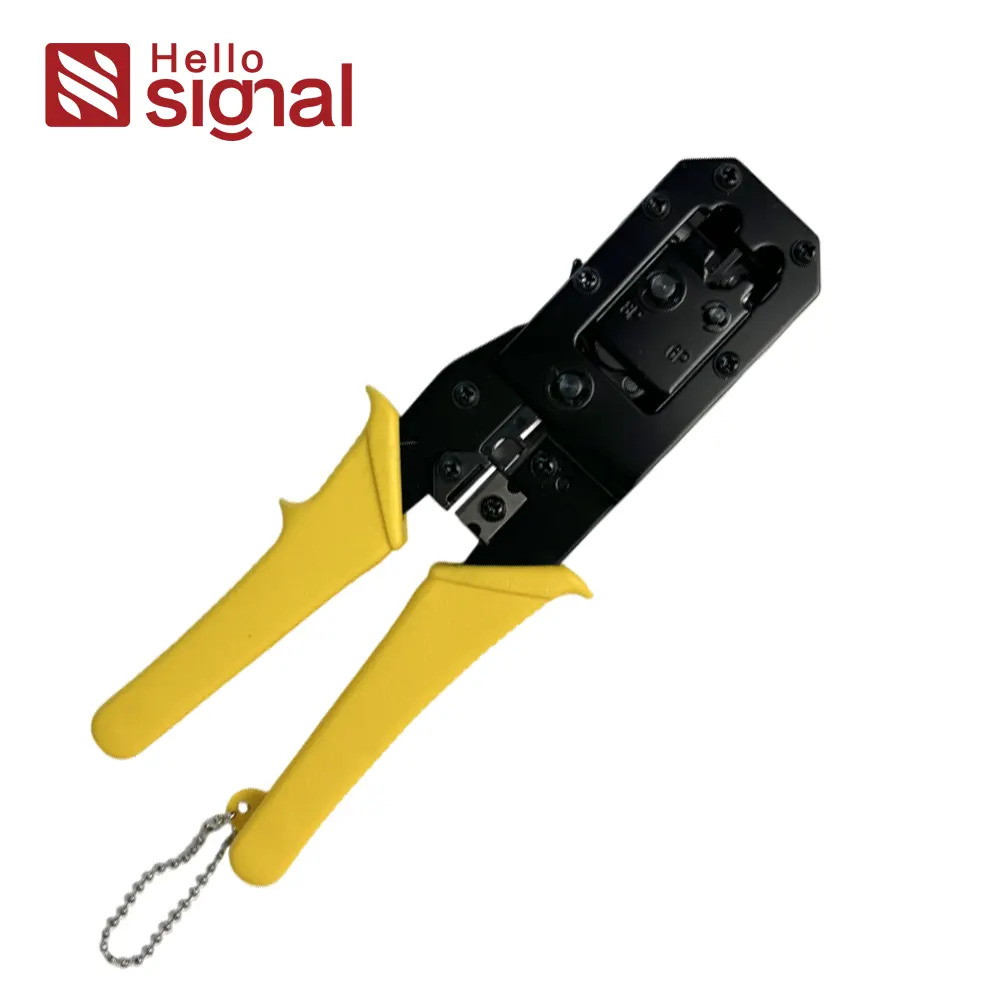

Modular Crimp Tool 6P+8P (EZ Pass-Through): Crimp, Strip & Cut for RJ45/RJ12

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

RJ45 / RJ12 Crimp Tool · Networking Tools & Accessories

Modular Plug Crimps · Strips & Cuts Tool 6P+8P – Selection & Application Guide

A practical guide for engineers and buyers to choose and deploy 6P/8P modular plug crimp tools that reduce rework, connector scrap, and downtime in structured cabling projects.

Network Installers System Integrators Cabling Contractors Data Center Engineers IT Maintenance Teams Procurement Managers

Request Datasheet / Sample More Ethernet Installation Accessories & Tools

Quick Takeaways

One tool handles both 8P8C (RJ45) and 6P (RJ11/RJ12) modular plugs for data and voice lines.
Parallel crimping and ratchet design help maintain stable contact pressure and reduce bad terminations.
Right tool selection cuts down rework, connector waste, and on-site troubleshooting time.

Contents

1) What Is a 6P+8P Modular Crimps, Strips & Cuts Tool?

2) Core Specifications & Construction

3) Connector Compatibility & Typical Applications

4) Decision Rules / Engineer’s Shortcut

5) Cost, Lifetime & Risk Considerations

6) Installation Workflow & Quality Checks

7) When to Use EZ / Pass-Through or Multi-Tools

8) Conclusion & Next Steps with ZION

■ 1) What Is a 6P+8P Modular Crimps, Strips & Cuts Tool?

A modular plug crimp tool for 6P+8P is a hand tool used to crimp, strip, and cut copper cables for modular plugs, mainly for Ethernet (RJ45, 8P8C) and telephone/low-speed control lines (RJ11/RJ12, 6P). It is a core tool in any copper cabling toolbox: from data centers and office wiring to home renovation and light industrial control.

Compared with single-purpose crimpers, a combined crimps + strips + cuts tool reduces tool changes on-site, speeds up termination, and lowers the chance of wiring mistakes during repetitive work.

Field Reality / Practical Rule

In real projects, most “mysterious” intermittent link issues come from poor terminations – not from the cable itself. A stable, ratcheting 6P+8P crimp tool with correct dies is one of the cheapest insurance policies against truck rolls and SLA penalties.

ZION COMMUNICATION can supply modular crimp tools paired with our copper cabling portfolio, helping you standardize terminations for CAT5e / CAT6 / CAT6A patch cords and telephone lines under one vendor.

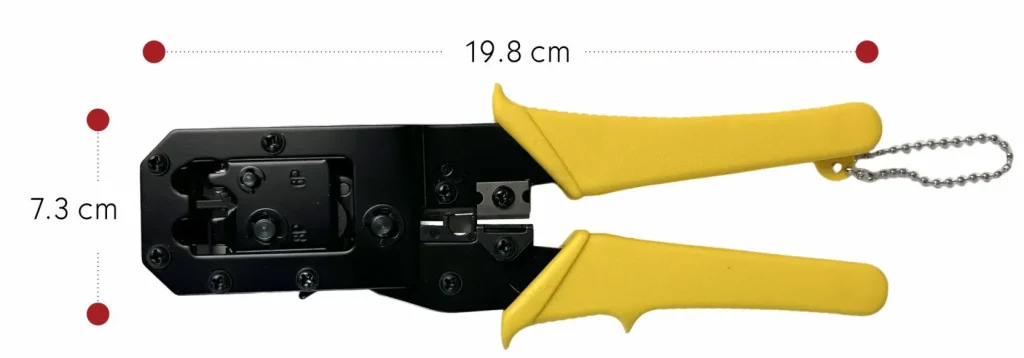

ZCCS002-Y-Product-Size-1024x358

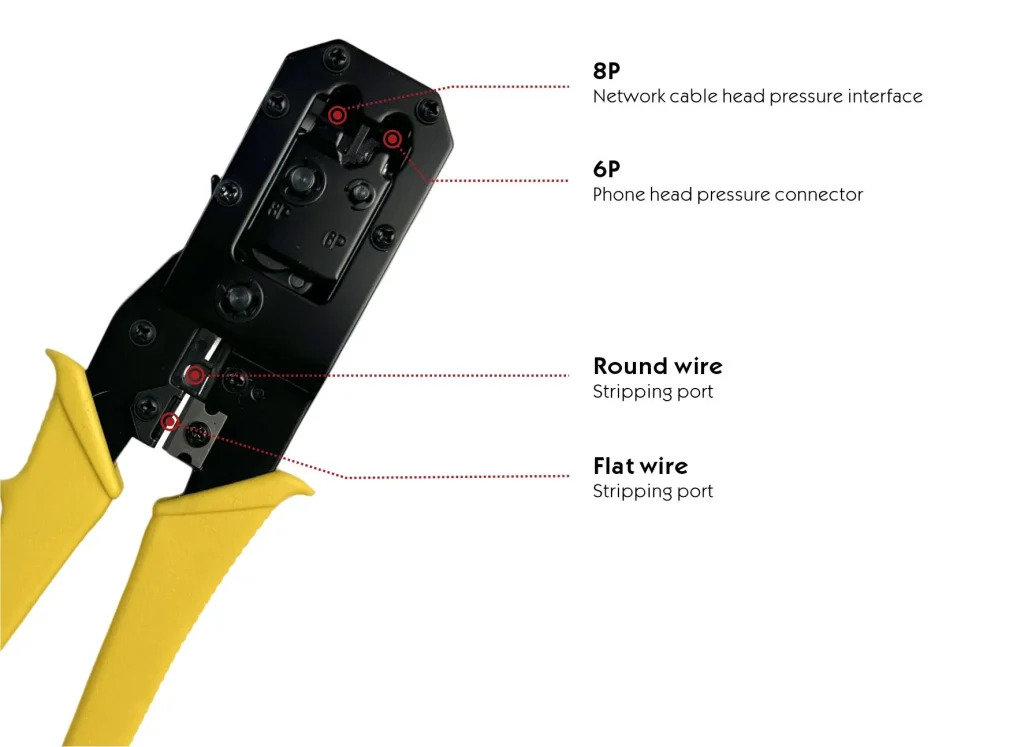

ZCCS002-Y-Product-Size2-1024x747

■ 2) Core Specifications & Construction

Typical ZION 6P+8P Modular Crimp Tool Configuration

The table below summarizes a representative configuration for a regular-type 6P+8P modular plug crimp tool suitable for RJ45/RJ12 field work.

Item	Typical Specification	Engineering Note
Tool Type	Modular crimps, strips & cuts tool, 6P+8P regular type	All-in-one operations: cut, strip, crimp for standard modular plugs.
Supported Connectors	8P8C (RJ45); 6P6C / 6P4C / 6P2C (RJ11/RJ12)	Covers Ethernet, telephone and some low-speed control lines.
Net Weight	Approx. 295 g (±5 g)	Balance between ruggedness and operator fatigue in long shifts.
Overall Size (L×W×H)	≈ 19.8 × 7.3 × 1.8 cm	Fits standard tool pouches; provides sufficient leverage for crimping.
Tool Body Material	Middle carbon steel, hardened, black-oxide finished	Ensures strength, wear resistance, and basic corrosion protection.
Handle Material & Color	PP (polypropylene), typically bi-color (e.g., yellow + black), customizable with MOQ	Non-slip grip; color customization helps identify teams or tool types.
Crimping Action	Parallel crimp with smooth ratcheting mechanism	Stable and repeatable contact force; less dependent on operator strength.
Additional Features	Cable cutting and stripping for round cables; safety lock for storage	Reduces additional tools; lock protects blades and prevents accidental opening.

ZION can adapt handle colors, logo printing, and packaging to your OEM or project requirements, aligning crimp tools with your copper patch cords and accessory portfolio.

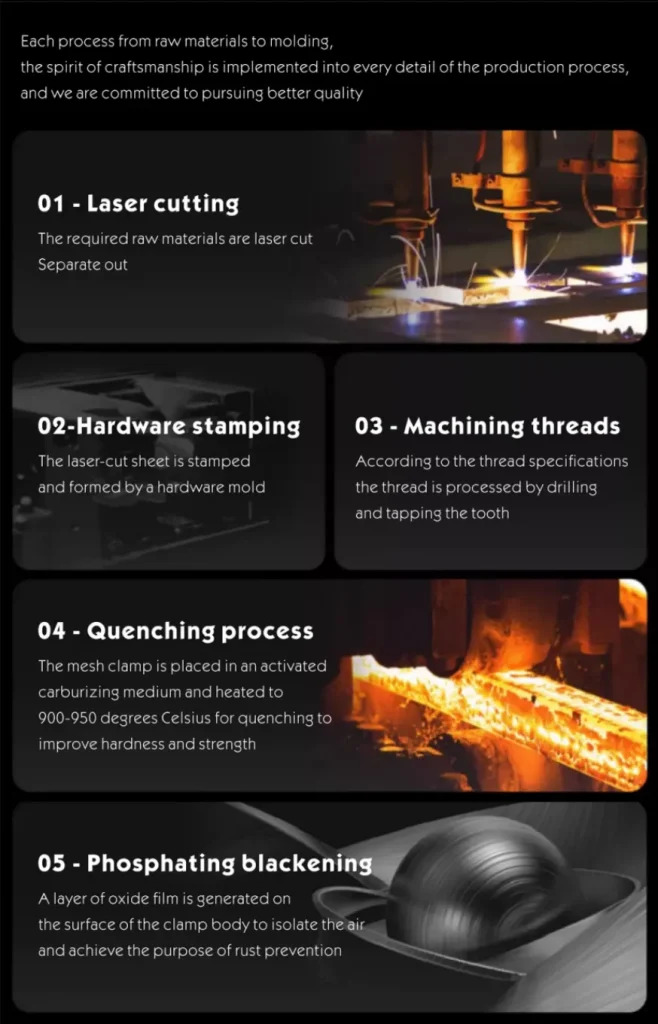

Production-Process-658x1024

■ 3) Connector Compatibility & Typical Applications

6P vs 8P Connectors – Where This Tool Is Used

A 6P+8P crimp tool is designed to support both 8-position Ethernet plugs and 6-position telephone or auxiliary connectors. The mapping below shows typical use cases to help your team standardize where each connector is allowed.

Connector Type	Positions / Contacts	Typical Cable	Typical Application	Notes
RJ45 (8P8C)	8 positions, 8 contacts	CAT5e/CAT6/CAT6A UTP or F/UTP round cable	LAN patch cords, router/switch connections, PoE devices	Requires correct plug type for conductor size and shielding.
RJ12 (6P6C)	6 positions, 6 contacts	Flat or round multi-core telephone/control cable	PBX systems, control panels, some alarm circuits	Use only where bandwidth and PoE are not required.
RJ11 (6P4C / 6P2C)	6 positions, 2–4 contacts used	Telephone drop or intercom cable	Legacy telephony, low-speed signalling	Avoid mixing with data outlets to prevent mispatching.
8P control plug	8 positions, 4–8 contacts used	Industrial or BMS control cable	Low-speed data, RS485 over modular jack, etc.	Check pinout and insulation diameter before crimping.

Key Takeaway

For Ethernet, only use 8P8C (RJ45) plugs crimped with the correct die. 6P plugs are reserved for telephone or low-speed control lines, even if the connector physically fits into an 8P socket.

■ 4) Decision Rules / Engineer’s Shortcut

How to Pick the Right 6P+8P Crimp Tool for Your Project

Use the table below as a quick decision matrix when preparing project BOQ, toolkits for installers, or distributor stock profiles.

Scenario	Recommended Tool Features	Engineer’s Shortcut
Small office / SOHO installs, low volume	Regular 6P+8P tool, basic ratchet, strip & cut function	Prioritize simplicity and cost; one tool per installer is enough.
Enterprise cabling / data center rollouts	High-quality ratchet, hardened dies, ergonomic handle, spare blade set	Crimp consistency matters more than tool price – prevent rework and downtime.
Mixed voice + data (RJ11/RJ12 + RJ45)	6P+8P crimping cavities, clear marking of 6P vs 8P positions	Label tool and jigs clearly to avoid crimping a data plug in the wrong cavity.
Field service / maintenance kits	Compact tool, integrated cutter/stripper, safety lock	Tool should fit small bags, be safe to carry, and work with most modular plugs.
High-density patch cord production	Professional-grade crimper or semi-automatic tooling, quality gauges, cable tester	Consider factory-terminated patch cords from ZION instead of on-site crimping.

Practical Rule for Procurement

As a rule of thumb, equip each installer with one 6P+8P crimper plus one spare per 5–8 installers to cover tool loss or blade wear during large projects.

Widely-used-in-engineering-home-improvement-843x1024

■ 5) Cost, Lifetime & Risk Considerations

Compared with the total cost of copper cables, patch panels, and active equipment, the cost of a good crimp tool is small. However, a poor-quality tool amplifies risks:

Hidden bad crimps causing random packet loss or PoE instability.
Higher connector scrap rate, especially with CAT6A or shielded plugs.
Extra truck rolls and troubleshooting time for field teams.

Tool Grade	Typical Use	Expected Lifetime*	Risk Profile
Entry-level	Occasional SOHO or home DIY	Hundreds of crimps if used carefully	Higher variation in contact pressure; not recommended for SLA-based projects.
Professional regular 6P+8P	Daily use by installers and technicians	Thousands of crimps with proper maintenance	Balanced cost vs reliability; suitable for most enterprise projects.
High-end / OEM production	Patch cord factories, high-volume harness production	Tens of thousands of crimps, often with replaceable dies	Lowest variation, integrated QC; consider moving to factory-terminated cords.

*Lifetime is indicative; actual value depends on cable type, plug quality, and maintenance.

Key Takeaway

For any project where downtime is visible to your customer (offices, data centers, industrial lines), always budget for at least a professional-grade 6P+8P crimp tool – not the cheapest DIY version.

■ 6) Installation Workflow & Quality Checks

Step-by-Step Use of a 6P+8P Crimps, Strips & Cuts Tool

Below is a condensed workflow for terminating RJ45/RJ12 plugs using a combined crimp, strip and cut tool. Follow your local standards (e.g. T568A/T568B) and project documentation.

Step	Action	Key Checks / Tips
1. Prepare cable	Straighten the cable, untwist pairs only as needed, align conductor order.	Keep twist as close to the plug as possible for better NEXT performance.
2. Strip outer jacket	Use the built-in stripper; rotate gently around the cable and remove the jacket.	Do not nick the conductor insulation; adjust stripper depth if needed.
3. Trim conductors	Cut all conductors to an even length using the cutting blades.	Ensure they are perfectly aligned before inserting into the plug.
4. Insert into plug	Slide conductors into the 6P or 8P modular plug until they reach the front.	Visually confirm each conductor is in the correct slot and touches the plug nose.
5. Crimp	Place the plug into the matching 6P or 8P cavity and squeeze the ratcheting handles fully.	Do not release before the ratchet completes its cycle to ensure full contact.
6. Visual inspection	Check the contact blades and strain relief; confirm no bent pins or cracked plug.	The cable jacket should be clamped under the plug’s strain relief tab.
7. Test & label	Use a cable tester to verify continuity, wiring pattern and, if needed, performance.	Label both ends according to your cabling plan for easier maintenance.

Key Takeaway

Even with a good tool, testing every terminated cable (at least for continuity and pin-out) is mandatory in professional projects. The crimp tool and cable tester should always travel together.

■ 7) When to Use EZ / Pass-Through or Multi-Function Tools

Besides regular 6P+8P crimp tools, the market also offers EZ / pass-through plug systems and specialized crimpers for them. These allow conductors to pass through the front of the plug for easier visual inspection and trimming.

ZION can cooperate with you to define which tool families to combine in your catalog or project kits:

Regular 6P+8P crimp tool: Best for standard projects, distributors, and installers already familiar with CAT5e/CAT6 terminations.
EZ / pass-through tool: Recommended for teams that terminate large volumes of CAT6A or thick outdoor cables, where visual verification reduces errors.
Dedicated punching tools & strippers: For keystone jacks, patch panels, and coaxial cable tasks in the same toolkit.

Field Reality / Practical Rule

If your installers frequently struggle with thicker CAT6A or outdoor cables, adding a pass-through system and matching crimper can save more money in reduced scrap than the incremental tool cost within just one project.

■ 8) Conclusion & Next Steps with ZION

A 6P+8P modular plug crimp, strip and cut tool is a small item in your BOM but has a disproportionately large impact on link stability, installation speed, and customer satisfaction. By standardizing on a professional-grade tool with:

Support for both RJ45 (8P8C) and RJ11/RJ12 (6P) connectors,
Hardened steel body and reliable ratcheting mechanism,
Integrated cut/strip functions and safety lock,
And clear training on correct workflows and testing,

you give your field teams a consistent, repeatable way to terminate copper links that matches the performance of ZION’s Ethernet cable and connectivity components.

Share your target connector types (RJ45/RJ11/RJ12), expected termination volume, and preferred packaging with ZION’s sales team, and we will recommend matching crimp tools, modular plugs, and copper cable models as a complete solution.

Ready to Build Your Crimp Tool & Copper Cabling Bundle with ZION?

Send us your project specs (cable category, PoE level, connector types, expected volume), and our team will help you select the right 6P+8P crimp tools, modular plugs and Ethernet cables for a reliable, easy-to-install solution.

Request Datasheet / Quote Back to Top
