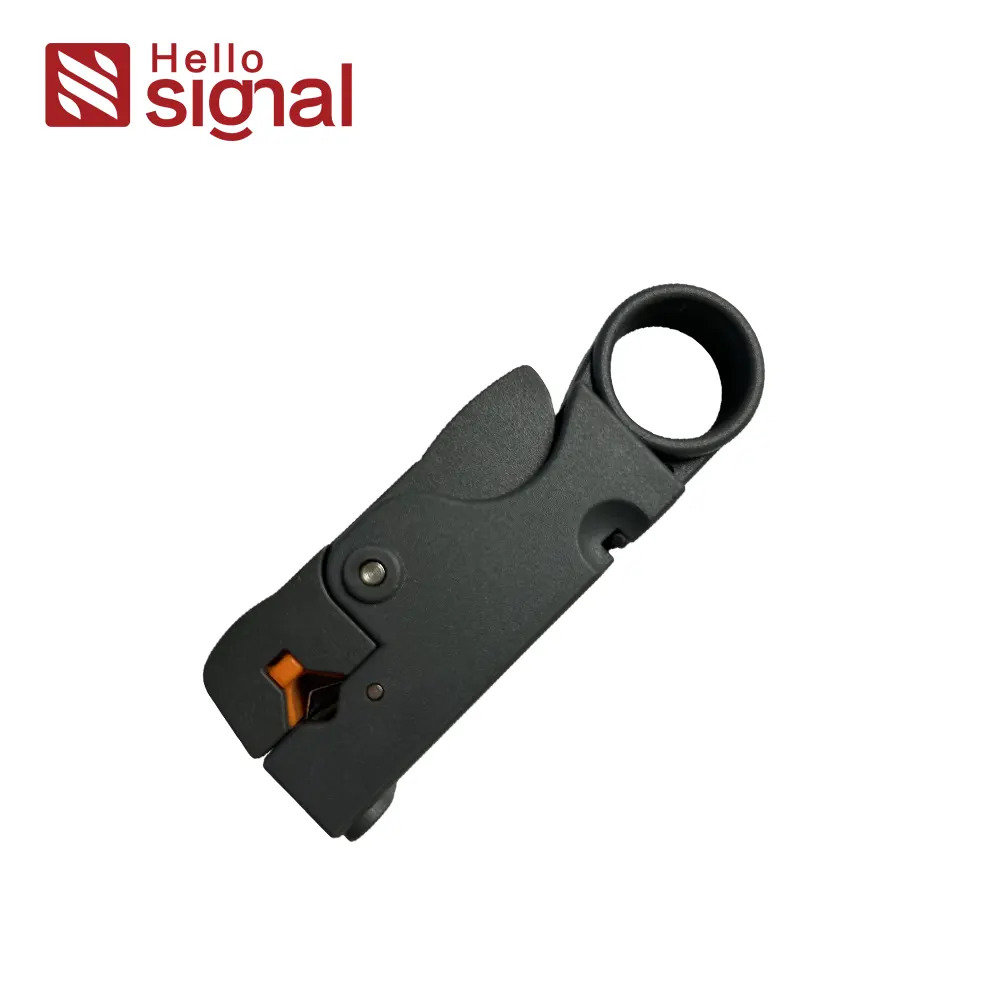

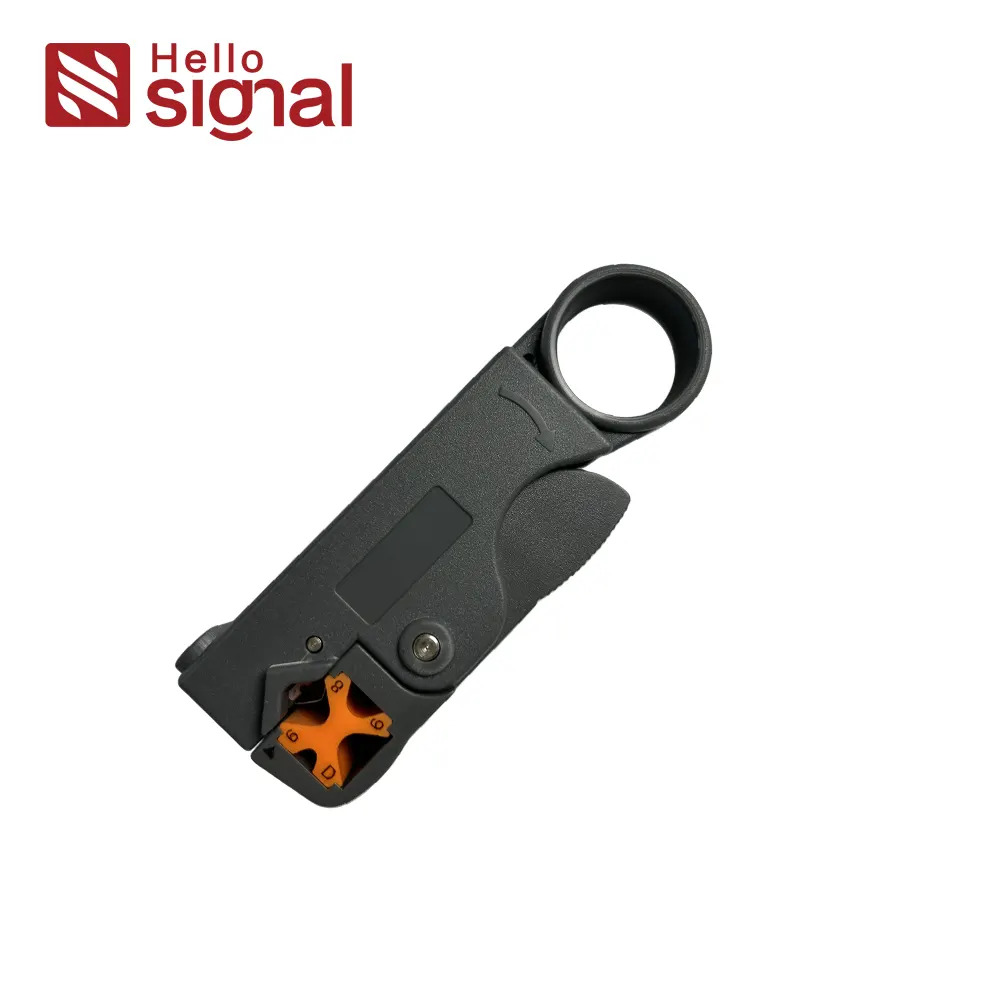

Rotary Coaxial Cable Stripper Tool ZCRCCS001-G | RG58 RG59 RG62 3C2V 4C 5C

Rotary Coaxial Cable Stripper Tool ZCRCCS001-G | RG58 RG59 RG62 3C2V 4C 5C

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Networking Tools & Accessories / Coax Preparation

Rotary Coaxial Cable Stripper-Cutter Tool (ZCRCCS001-G) for RG58/RG59/RG62/3C2V/4C/5C

A compact rotary stripper engineered for clean, repeatable coax prep—reducing connector failures, rework, and field callbacks.

Network Installers RF/Coax Technicians Procurement Project Managers OEM/ODM Buyers Maintenance Teams

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

Supports common coax families (RG58/59/62 and 3C2V/4C/5C) with adjustable blade depth.
Preset stripping length 6mm; switch to 4/6/8/12mm when your connector prep requires it.
Lightweight (35±5g) and compact (9.7×3.5×2.2cm) for fast site work and service calls.

Contents

What this tool does & when you need it
Key specifications
Features that protect signal integrity
Compatible cables & typical applications
Decision Rules / Engineer’s Shortcut
Setup & operation checklist
Procurement notes: cost, spares, risk
Conclusion & final CTA

■ 1) What this tool does & when you need it

A rotary coaxial cable stripper-cutter is designed to remove the outer jacket and shielding layers of coax cable with consistent depth and length—so your connectors seat correctly and the conductor/shield geometry stays intact. It’s a practical upgrade when you have recurring issues like braid damage, nicked dielectric, uneven strip lengths, or slow prep speed across a team.

Field reality / Practical rule

Most coax “mystery failures” at the connector are not cable defects—they’re termination defects. Standardizing stripping length + blade depth is one of the lowest-cost ways to reduce returns and field rework.

■ 2) Key specifications

Item	Specification	Why it matters in real projects
Model / Name	ZCRCCS001-G Rotary Coaxial Cable Stripper	Defines the blade structure and compatible prep method for your connector workflow.
Application	Suitable for RG-58/59/62 and 3C2V/4C/5C cable	Covers common CCTV, RF, and general coax service inventories.
Net weight	35 ± 5 g	Lighter tools reduce fatigue and speed up high-count terminations.
Material	Body: ABS + TPR	Grip + durability; reduces slipping that can over-cut braid/foil.
Color	Dark Gray + Orange	High-visibility tool helps reduce site loss/misplacement.
Size	9.7 × 3.5 × 2.2 cm	Pocket-friendly for service calls; practical for ladder/tight cabinet work.

Key takeaway

This model targets standard coax prep with adjustable blade depth and selectable strip lengths (4/6/8/12mm), helping teams lock in repeatable connector-ready geometry.

■ 3) Features that protect signal integrity

Feature	What it does	Risk it reduces
Selectable stripping lengths	Strips in four lengths: 4 / 6 / 8 / 12mm (preset length is 6mm)	Wrong prep length causing poor connector seating and intermittent contact.
Adjustable blade position	Move blade position to match your required strip length	Over/under-strip that leads to braid shorting or exposed dielectric.
Adjustable blade depth (hex wrench)	Use the built-in hex wrench to fine-tune blade depth for smaller or larger cable	Nick the dielectric/center conductor, or fail to cut jacket cleanly—both drive rework.

Field reality / Practical rule

If installers “eyeball” strip length, you will see variation across shifts and sites. Standardize one prep length per connector family (e.g., 6mm) and record the blade-depth setting in your work instruction.

■ 4) Compatible cables & typical applications

This rotary stripper supports RG-58/59/62 and 3C2V/4C/5C cable families. These are frequently used across CCTV, RF patching, indoor distribution, and general coax service work. The key is matching strip length and depth to the connector prep spec you are terminating.

Cable family	Common use cases	Termination priority
RG-59	CCTV drops, legacy video distribution, short indoor links	Avoid braid/foil tearing; consistent jacket cut for stable shielding.
RG-6 / 5C (where applicable)	CATV / broadband style coax inventories and multi-site maintenance	Two-layer cut accuracy; correct strip length for connector compression/crimp.
RG-58	RF jumpers, test benches, radios, small-coax patching	Blade depth control to prevent dielectric nicking.
RG-62 / 3C2V / 4C	Mixed coax service environments, older systems, specialized impedance needs	Repeatable geometry so impedance/shield continuity stays consistent at the connector.

■ 5) Decision Rules / Engineer’s Shortcut

Use the table below to decide quickly whether a rotary stripper is the right choice for your team, and how to set it up to avoid the most common termination risks.

Scenario	Recommended tool choice	Engineer’s rule	What to control
High-volume terminations across multiple technicians	Rotary stripper	Standardize one strip length per connector family; document blade depth setting.	Length (4/6/8/12mm), blade depth via hex wrench.
On-site maintenance with mixed cable sizes	Rotary stripper (adjustable)	Carry a quick-reference: cable type → depth/length setting; test on one sample first.	Depth calibration when switching RG families.
One-off emergency fix, no tooling available	Knife/manual stripping (last resort)	Expect higher defect risk; inspect conductor & braid meticulously.	Avoid conductor nick; keep braid intact.
High-quality connector performance requirement (low returns / strict QC)	Rotary stripper + documented work instruction	Audit strip geometry and connector seating during first article inspection.	Prep length, shield continuity, repeatability across operators.

■ 6) Setup & operation checklist

Pre-work checklist

Confirm cable family (RG-58/59/62 or 3C2V/4C/5C).
Confirm connector prep length required; start with the preset 6mm if unsure.
Run one trial strip and inspect: jacket cut, shield condition, dielectric surface.

Adjustment controls

Stripping length: selectable 4 / 6 / 8 / 12mm (preset length: 6mm).
Blade depth: use the hex wrench at the bottom; clockwise for smaller cable, counterclockwise for larger cable.
Repeat depth setting for the other blade to keep the cut balanced.

Key takeaway

The fastest way to reduce defects is not “more skill”—it’s one approved setting per cable/connector combo, verified by a simple first-article strip check.

■ 7) Procurement notes: cost, spares, risk

For procurement and project leads, the “tool price” is rarely the main cost. The real cost is labor time, rework, and field returns caused by inconsistent stripping. Use the table below to structure a practical buying decision.

Cost/Risk item	What can go wrong	Control / mitigation	What to request in RFQ
Rework time	Over-cut shield, nicked dielectric, uneven strip length	Lock strip length; tune blade depth with hex wrench; first-article check	Required strip length(s) and cable families used on site
Field callback risk	Intermittent contact or shield discontinuity at connector	Standardize procedure; inspect shield condition after strip	QC checkpoints: strip geometry + connector seating
Spare/maintenance	Blade wear reduces cut quality over time	Define service interval; keep spare blades/tools for high-volume teams	Expected monthly terminations; request spare plan
Training overhead	Different operators set different depths/lengths	One-page work instruction with settings; supervisor sign-off	Your connector type + cable list (RG/metric codes)

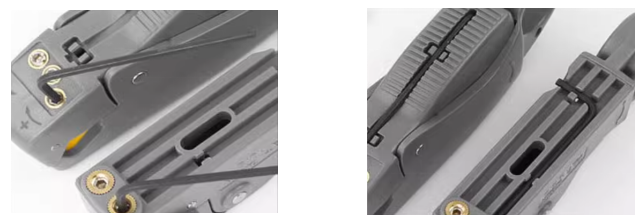

Adjust-the-stripping-hole-size-with-Allen-through-the-screw-hole-of-the-base

■ 8) Conclusion & final CTA

If your project uses RG-58/59/62 or 3C2V/4C/5C coax, a rotary stripper with adjustable depth and selectable strip lengths is a low-cost way to improve termination consistency. For best results, define one approved strip length per connector family, validate blade depth on a sample cable, and document the setting for your installers—this typically reduces rework and improves long-term stability.

FINAL CTA — Send your parameters for a fast match

Please share: cable type (RG/3C2V/4C/5C), connector type, required strip length (4/6/8/12mm), and estimated quantity. We’ll recommend the best configuration and provide a datasheet/quotation.

Request Datasheet / Quote Back to Top

Reference product page data: Model ZCRCCS001-G, application RG-58/59/62/3C2V/4C/5C, net weight 35±5g, material ABS+TPR, size 9.7×3.5×2.2cm, stripping lengths 4/6/8/12mm (preset 6mm).
