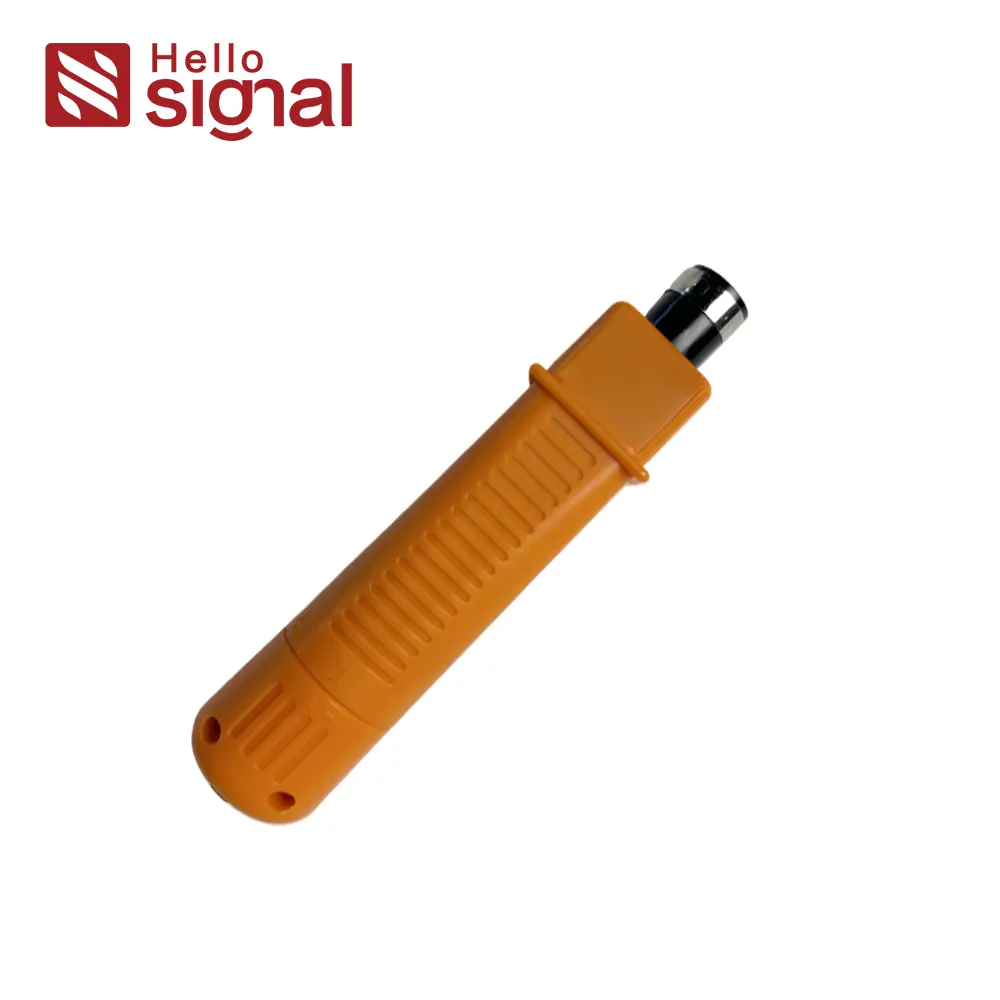

Punch Down Tool ZCPDT001-O | IDC Termination Tool for Patch Panels & Keystone Jacks

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Copper Cabling Infrastructure • Networking Tools & Accessories

Professional Punch Down Tool (ZCPDT001-O)

A compact IDC termination tool for network/telephone distribution frames, patch panels, and modules—built to improve seating accuracy, speed up installs, and reduce rework risk.

Structured Cabling Engineer Network Installer Telecom Technician MRO / Maintenance Procurement Project Lead

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

120±5g lightweight tool reduces fatigue during high-count terminations.
Dual-function blade concept supports punch + cut workflows with clean, flat trims (no residue).
Twist-lock holder + spare blade storage improves maintainability for field teams.

Contents

What This Tool Solves On Site
Key Specifications
Features That Matter (Field View)
Applications & Compatibility
Decision Rules / Engineer’s Shortcut
Workflow + QA Checklist
Procurement Notes (Cost & Risk)
Conclusion + Final CTA

■ 1) What This Tool Solves On Site

In copper cabling projects, the most common “mystery failures” come from the termination point: partially seated conductors, uneven trims, or damaged insulation. A professional punch down tool reduces variability by delivering controlled seating force, clean cutting, and repeatable results on IDC terminals.

Field reality

IDC terminations can look “fine” but still fail later—especially if the conductor is not fully seated or the trim leaves excess wire that causes shorts.

Key takeaway

A consistent punch + cut workflow is a low-cost way to reduce troubleshooting time and increase long-term maintainability.

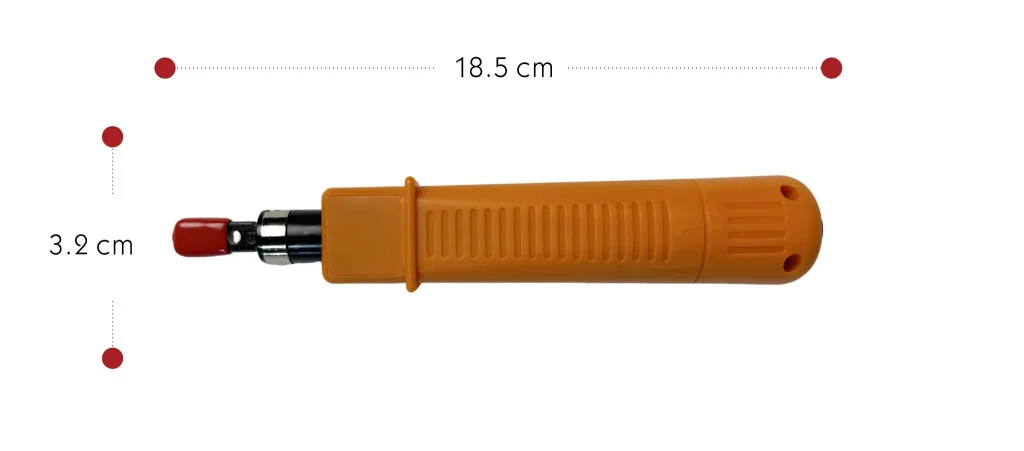

ZCPDT001-O2-1024x451

■ 2) Key Specifications

Item	Value	Why It Matters (Engineering/Procurement)
SKU	ZCPDT001-O	Locks BOM identity for purchasing, warehousing, and replacement planning.
Model / Name	ZCPDT001-O Punch Down Tool	Clear designation for IDC termination work (patch panels, frames, modules).
Application	Network distribution frame, telephone distribution frame, network module, telephone module, wire termination & tangent (cut)	Avoids mis-buying crimp tools when you actually need IDC tools for blocks/jacks.
Net weight	120 ± 5 g	Lower fatigue for repeated terminations and service work.
Material	Body: ABS + TPR; Color: Orange	ABS/TPR improves durability and grip control, reducing slip-related defects.
Size	15.7 × 3.2 × 3.2 cm	Compact for tool bags; suitable for tight cabinet/closet work.

■ 3) Features That Matter (Field View)

Practical rule

In IDC terminations, clean seating + clean trim is the reliability baseline. Treat punch-down tools like QC instruments, not “general hand tools.”

Feature list (why crews prefer it)

Spare blade storage chamber in the handle with cover (field-ready maintainability).
Twist-lock style holder for quick blade changes and pullout prevention.
Rubber grip handle for comfortable operation and better control.
ABS + TPR construction with rigid handle for durability.
Dual-end concept for punching/cutting tasks (swap as needed by workload).

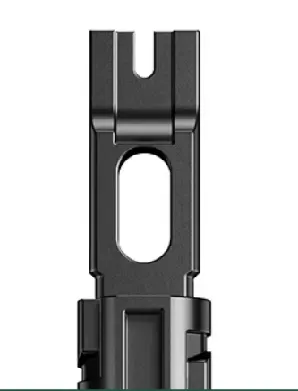

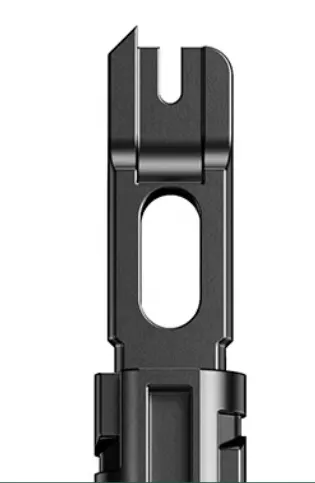

2-in-1-knife-head Threading-bunk

■ 4) Applications & Compatibility

ZCPDT001-O is positioned for day-to-day low-voltage termination work across network and telephone frames/modules. If your workflow includes frequent keystone/patch panel terminations, standardizing a reliable punch-down tool reduces defects and speeds up delivery.

Scenario	Typical components	What the tool does	Main risk it reduces
Telecom/Network distribution frame	Frames, terminal blocks, modules	Seats conductors into IDC slots; trims excess cleanly	Intermittent opens/shorts caused by partial seating or messy trims

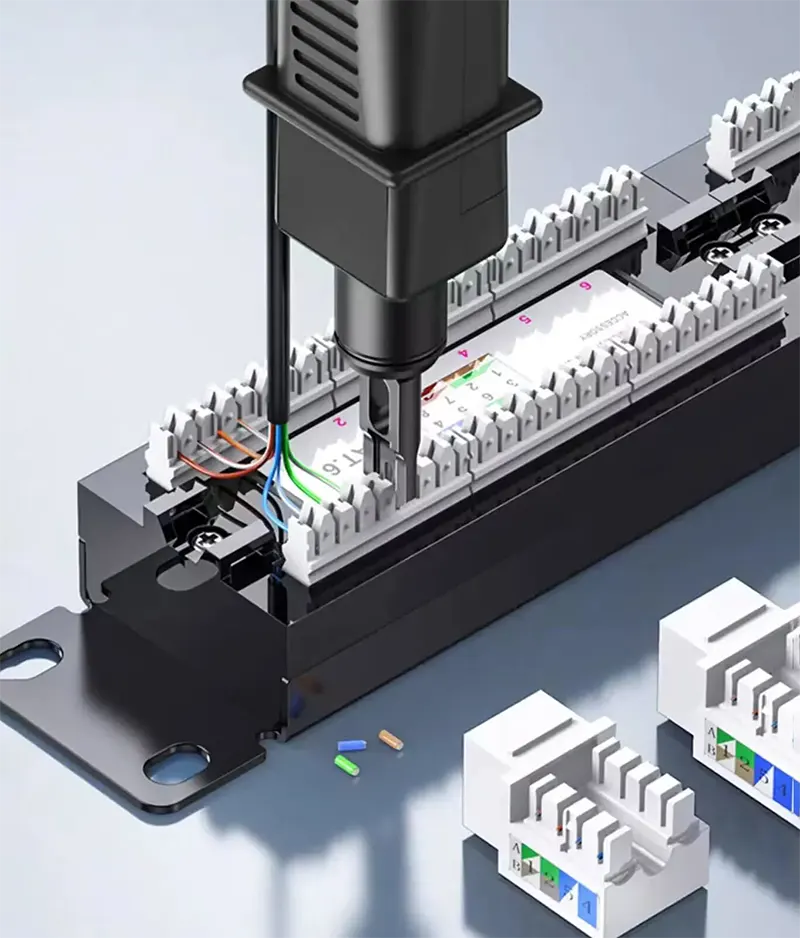

Patch panel termination	IDC patch panels, rack installs	Fast, repeatable punch-down across many pairs	Rework labor and acceptance-test delays
Module termination	Network/telephone modules	Accurate wire binding and flat cutting with no residue	Overhang that creates shorts or cabinet clutter

■ 5) Decision Rules / Engineer’s Shortcut

Use the table below to select the right punch-down tool by workload, failure tolerance, and maintenance expectations.

Decision factor	Choose ZCPDT001-O when…	Choose an impact/110-specific tool when…	What it changes (cost/risk)
Work scope	You do mixed network/telephone module terminations and want a compact, service-friendly tool.	You are standardizing purely on 110-style blocks/jacks and want impact force consistency.	Avoids tool mismatch and reduces training variability.
Volume & fatigue	Techs terminate frequently and prefer a lightweight tool (120±5g) with good grip.	Very high count terminations where spring impact tools improve speed per pair.	Lower fatigue reduces errors and callbacks.
Maintainability	You want spare blade storage and fast blade swapping (twist-lock).	You keep dedicated spare blades and tools in a fixed wiring station.	Reduces downtime when blades wear or get lost on site.
Failure tolerance	You need clean trims and consistent seating to reduce intermittent faults.	You have strict IDC standards and want a specialized blade type for a specific block.	Lower rework probability and better long-term stability.

Practical rule

Lock the tool + module pairing at project start. Mixing blade types and IDC standards across crews is a common source of inconsistent results.

Key takeaway

Your KPI is not tool price—it’s time-to-terminate + callback rate. Better seating and trim quality usually wins on total cost.

■ 6) Workflow + QA Checklist

A simple SOP prevents the most common IDC defects (partial seat, insulation damage, messy trims). Use the checklist below for consistent results.

Step	Action	Common failure mode	QC check
1	Prepare cable: strip jacket carefully; keep pair twists as close as practical to the IDC point.	Over-untwist, messy conductor layout, damaged insulation.	Visual check for clean insulation and correct pair routing.
2	Place conductor into the IDC slot fully (correct side and color order per module diagram).	Wrong slot / wrong color order; conductor not fully seated.	Confirm each conductor is centered in the slot before punching.
3	Punch down: apply straight, controlled force; complete the seat and trim cycle.	Angled punch causing partial seat or cracked plastic around IDC.	No conductor wobble; seat line looks uniform across positions.
4	Inspect trim: ensure cutting is flat with no excess wire and no residue.	Excess tails that can short; incomplete cuts.	Front/side view check under good lighting.
5	Test: continuity/verification per project plan (basic tester or certification where required).	Hidden opens/shorts from poor seating or damage.	Document pass/fail for traceability.

■ 7) Procurement Notes (Cost & Risk)

Purchasing punch-down tools is fundamentally a risk-control decision. The tool impacts labor minutes per termination, defect rate, and the cost of callbacks. Define the requirements clearly in the PO to avoid tool mismatch across crews.

Field reality

Cheap tools increase termination variability. Variability becomes downtime when the system is in service and hard to diagnose.

Key takeaway

Standardize one model per crew, add one spare per team, and specify blade/termination standard to stabilize outcomes.

Procurement item	Recommended requirement	Why it reduces cost/risk
SKU lock	ZCPDT001-O	Avoids receiving wrong tools and delaying site work.
Use case statement	Network/telephone distribution frames & modules; IDC termination + trim	Prevents buying crimp tools when IDC tools are required.
Blade readiness	Spare blade storage required; quick-change mechanism preferred	Reduces downtime in the field when blades wear or get lost.
QC expectation	Define verification method (basic continuity or project certification)	Aligns installation SOP with acceptance criteria and reduces callbacks.

■ 8) Conclusion + Final CTA

If your project includes network/telephone distribution frames, modules, or IDC-based terminations, ZCPDT001-O is a practical punch-down tool choice to improve termination consistency and reduce rework. Standardize the tool model, follow a simple punch + trim SOP, and verify with testing to control long-term maintenance risk.

FINAL CTA — Send Your Parameters for Fast Quoting

Please share your application (patch panel / distribution frame / module type), cable type (UTP/STP category), quantity, and any project acceptance requirement to receive the right recommendation.
