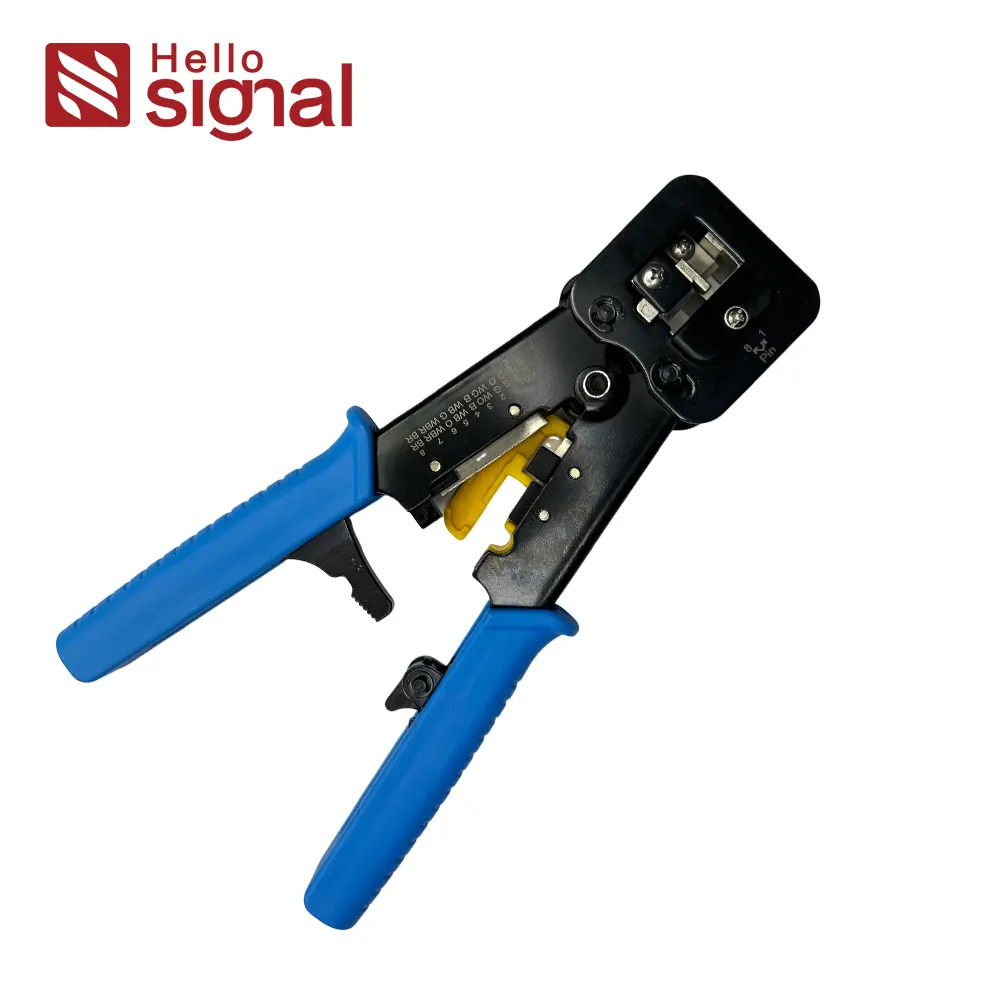

Modular Crimping Tool 6P+8P: Fast RJ45/RJ12 Crimp, Strip & Cut for Installers

Modular Crimping Tool 6P+8P: Fast RJ45/RJ12 Crimp, Strip & Cut for Installers

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Copper Cabling Infrastructure • Networking Tools & Accessories

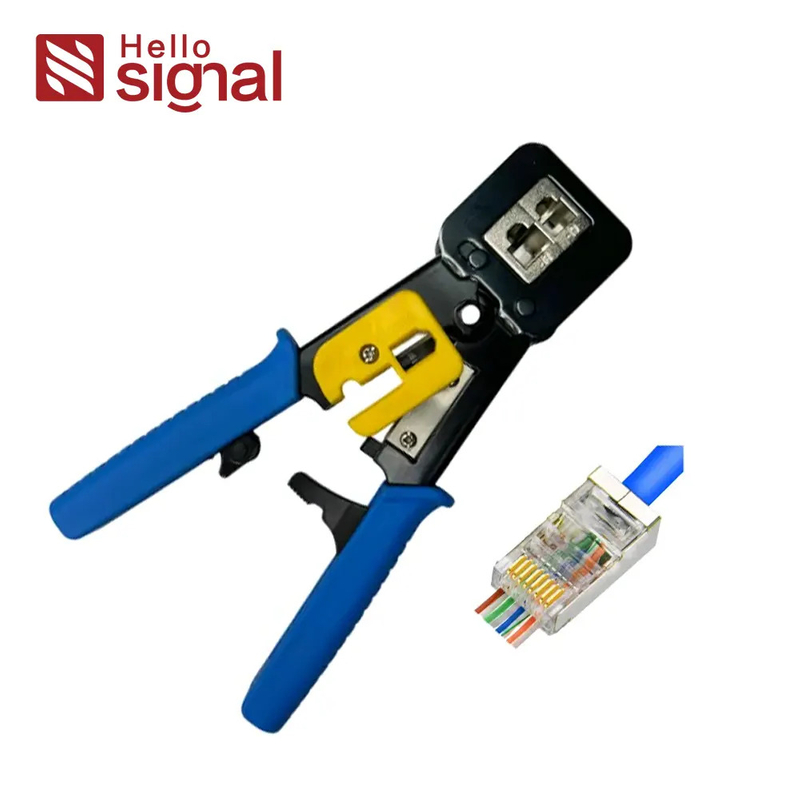

Modular Crimps, Strips & Cuts Tool 6P+8P (EZ / End Pass Through)

A field-ready network crimper that cuts, strips, and crimps 6P/8P modular plugs with a ratcheting mechanism—built to reduce rework, connector waste, and termination risk.

Structured Cabling EngineerNetwork InstallerTelecom TechnicianData Center OpsProcurementProject Lead

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

Supports 8P8C (RJ45) and 6P family terminations for daily Ethernet/telephone work.
One tool for cut + strip + crimp helps control labor time and connector scrap rate.
Ratcheting action improves termination consistency—critical for maintenance and QA acceptance.

Contents

What This Tool Solves On Site
Key Specifications
Features That Matter (Field View)
Connector & Cable Compatibility
Decision Rules / Engineer’s Shortcut
Workflow + QA Checklist
Procurement Notes (Cost & Risk)
Conclusion + Final CTA

■ 1) What This Tool Solves On Site

In structured cabling, most failures happen at the termination point: uneven conductor insertion, incomplete crimp, or damaged jacket after stripping. A modular crimping tool that integrates cut + strip + crimp reduces handoffs and variability, especially when you’re producing consistent patch cords or doing large-scale on-site terminations under time pressure.

Field reality

If your installer needs to “re-crimp” or “re-seat” connectors, you are paying twice: extra labor + extra plugs + potential downtime during troubleshooting.

Key takeaway

A ratcheting, parallel-action crimper is a low-cost insurance policy against termination defects—especially for repeatable RJ45 work.

■ 2) Key Specifications

Item	Value	Why It Matters
SKU	ZCCS003-B	Use for quoting, warehouse picking, and project BOM traceability.
Model + Name	ZCCS003-BE Modular Crimps Strips & Cuts Tool 6P+8P – EZ / End Pass Through	Model identification helps align with connector type (pass-through vs standard).
Supported plugs	8P8C (RJ45); 6P6C / 6P4C / 6P2C (RJ12 family)	Avoid wrong die selection—reduces rework and intermittent faults.
Net weight	455 ± 5 g	Weight impacts fatigue for high-volume terminations.
Material	Body: carbon steel; Handle: polypropylene (PP), blue	Carbon steel frame improves durability; PP handle improves grip and insulation.
Size	21 × 6.8 × 2.5 cm	Compact size supports tool-bag portability and ladder work.

■ 3) Features That Matter (Field View)

Practical rule

Prioritize tools that maintain consistent crimp depth across technicians. Ratcheting action helps prevent “half-crimps” that pass visual checks but fail continuity tests.

Feature list (what you should care about)

Parallel-action crimping for modular plugs.
Cuts, strips, and crimps without changing the modular (DIE) set.
Smooth ratcheting mechanism to help ensure positive connections.
Middle carbon steel frame, hardened and black oxide finished.
Lightweight, durable, compact; includes a locker for storage after work.
Supports stripping round cables.

■ 4) Connector & Cable Compatibility

Match the tool to the plug family you actually terminate. The fastest way to blow a schedule is discovering late that your plugs require a different crimp profile.

Connector family	Positions / Contacts	Typical use	Engineer note
RJ45	8P8C	Ethernet patch cords, structured cabling terminations	Use with correct wiring standard (T568A/T568B). Always test continuity.
RJ12 family	6P6C / 6P4C / 6P2C	Telephone / low-pair modular applications	Confirm plug spec (contacts populated) to avoid mis-crimp and returns.
Round cable stripping	—	General round copper cable prep	Set stripping depth to avoid nicking conductors (hidden failure mode).

■ 5) Decision Rules / Engineer’s Shortcut

Choose the tool by connector type, volume, and failure tolerance. If the project is acceptance-tested (Fluke or equivalent), the cost of a bad termination is far higher than the tool delta.

Decision factor	Pick this 6P+8P EZ / End Pass Through tool when…	Consider other tools when…
Connector scope	You mainly terminate RJ45 + RJ12 family (6P/8P) on site.	You frequently need 4P plugs or special dies (shielded-only, specialty connectors).
Volume & labor control	You want one integrated tool to shorten termination cycle time and reduce handoffs.	You run a production line with dedicated stripping/cutting stations (separate tools may be faster).
Quality threshold	You need consistent crimps across technicians; ratcheting action reduces under-crimp risk.	Your work is non-critical and re-termination cost is low (temporary cabling).
Cost of failure	Failures mean truck rolls, downtime, or acceptance delays—tool reliability is the cheaper option.	If the environment is controlled and every cable is 100% bench-tested, the tool choice is less sensitive.

Practical rule

If your site requires certification testing, standardize on one crimper model per team to minimize “tech-to-tech variability.”

Key takeaway

The best crimper is the one that reduces re-termination probability—not the one with the lowest unit price.

■ 6) Workflow + QA Checklist

A repeatable workflow prevents hidden defects. Use the steps below as a standard operating procedure for RJ45 terminations (and apply similar discipline to 6P connectors).

Step	Action	Common failure mode	QC check
1	Prepare cable: straighten conductors; keep twists as close as possible to the plug.	Excess untwist causing performance drop (NEXT / return loss).	Measure untwist length; enforce site rule.
2	Strip jacket using built-in stripper; avoid nicking insulation.	Nicked conductors (intermittent opens).	Visual inspection under good lighting.
3	Trim conductors evenly (square cut) before insertion.	Uneven conductor ends; poor pin contact.	All conductors flush at plug front (per plug design).
4	Insert conductors into plug following the required wiring order (e.g., T568A/T568B for RJ45).	Crossed pairs; miswire.	Verify color order before crimp.
5	Crimp: place plug into die and squeeze handles fully (ratchet completes cycle).	Under-crimp / half-crimp.	Ensure full ratchet release and uniform pin set.
6	Inspect & test: check pin alignment; run continuity test with a cable tester.	Hidden opens/shorts; intermittent contact.	Document pass/fail for acceptance and traceability.

■ 7) Procurement Notes (Cost & Risk)

Field reality

Tool cost is rarely the budget risk. The risk is connector waste, failed acceptance tests, and the schedule impact of rework.

Key takeaway

Specify the plug types (RJ45 pass-through or standard), testing method, and handle-color requirements in the PO to avoid mismatches.

Procurement item	Recommended requirement	Why it reduces risk
Connector scope	Confirm 8P8C (RJ45) + 6P family; clarify pass-through use case.	Prevents wrong die profile and avoids large-scale re-termination.
Handle color	Standard: blue PP; custom color available (MOQ: 3000 pcs).	Avoids branding/standardization disputes across multi-team deployments.
QA method	Define minimum test: continuity; for projects: certification testing plan.	Aligns tool choice with acceptance criteria and reduces callback rate.
Spare planning	Standardize one model per crew; keep at least 1 spare tool per team for critical projects.	Avoids downtime if a tool is lost/damaged mid-deployment.

■ 8) Conclusion + Final CTA

For RJ45 and 6P modular terminations, a combined cut/strip/crimp tool with a smooth ratcheting mechanism is a practical way to control termination quality and reduce rework. If your project is acceptance-tested or operates in maintenance-sensitive environments, standardizing your crimping workflow and tool model is a straightforward decision that improves long-term reliability.

FINAL CTA — Send Your Parameters for Fast Quoting

Share your connector type (RJ45 pass-through or standard), cable type (UTP/STP, OD range), quantity, and any customization (handle color) to receive the right recommendation.
