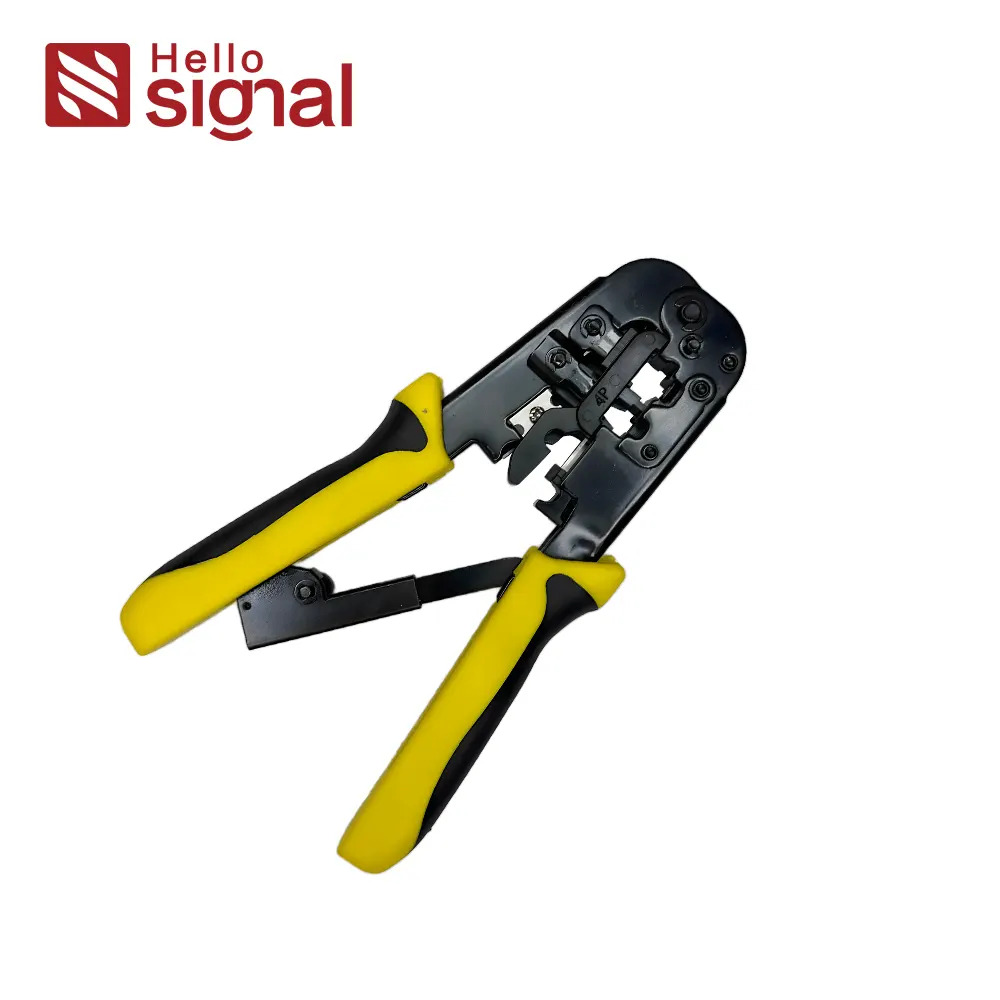

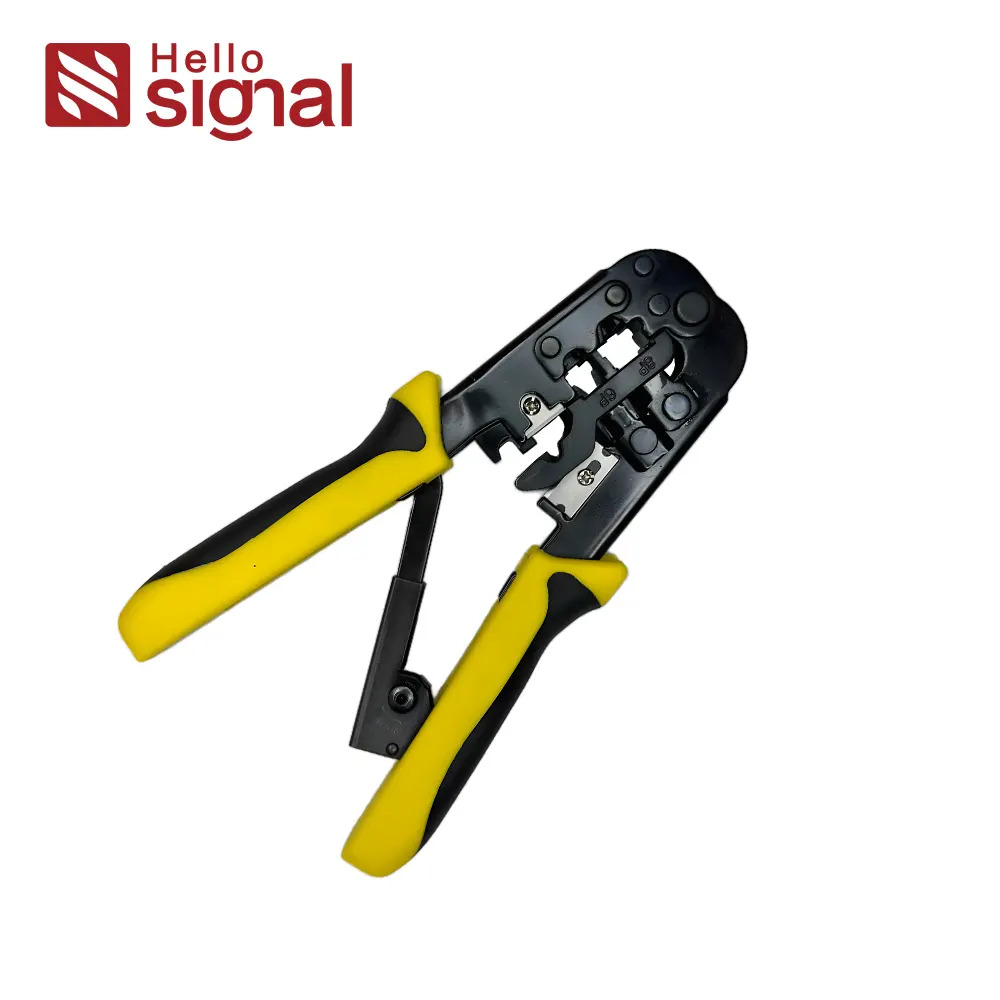

Modular Crimps Strips & Cuts Tool 4P 6P 8P (Normal Type) | RJ11 RJ12 RJ45 Crimper

Modular Crimps Strips & Cuts Tool 4P 6P 8P (Normal Type) | RJ11 RJ12 RJ45 Crimper

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Copper Cabling Infrastructure • Networking Tools & Accessories

Modular Crimps, Strips & Cuts Tool 4P+6P+8P (Normal Type)

One handheld tool to crimp + strip + cut modular plugs (RJ11/RJ12/RJ45). Built for faster terminations, lower connector scrap, and more consistent QA outcomes across crews.

Structured Cabling Engineer Network Installer Telecom Technician MRO / Maintenance Procurement Project Lead

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

4P + 6P + 8P coverage means fewer tools in the kit (handset/telephone/Ethernet modular work).
Ratcheting + parallel action helps reduce under-crimp defects that cause intermittent failures.
Integrated cut/strip/crimp lowers labor minutes per termination and reduces plug waste.

Contents

What This Tool Solves On Site
Key Specifications
Features That Matter (Field View)
Connector & Cable Compatibility
Decision Rules / Engineer’s Shortcut
Workflow + QA Checklist
Procurement Notes (Cost & Risk)
Conclusion + Final CTA

■ 1) What This Tool Solves On Site

Termination quality is often the hidden cost driver in copper projects. A single poor crimp can trigger repeated troubleshooting, cable re-pulls, or a failed acceptance test—especially when multiple technicians are terminating in parallel across floors or sites.

Field reality

“It works now” is not a pass condition. Under-crimp and jacket damage often show up later as intermittent drops, PoE issues, or noisy voice lines.

Key takeaway

A 4P/6P/8P all-in-one crimper reduces tool switching and standardizes crimp depth—helpful when crews handle mixed RJ11/RJ12/RJ45 work.

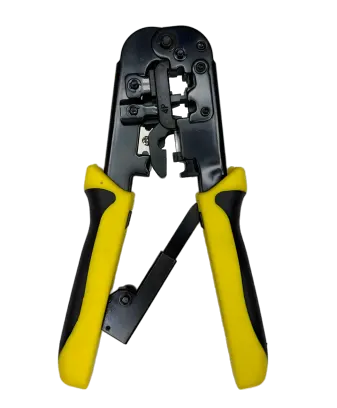

ZCCS003-Y

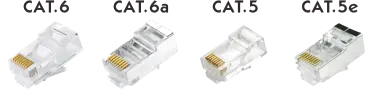

Modular (1)

■ 2) Key Specifications

Item	Value	Why It Matters (Engineering/Procurement)
SKU	ZCCS003-Y (listing may show ZCCS003-YB)	Use for RFQ, warehouse picking, and project BOM traceability.
Model / Name	ZCCS003-Y Modular Crimps Strips & Cuts Tool (4P+6P+8P Normal Type)	“Normal type” is typically used for standard modular plugs (not pass-through).
Supported plugs	8P8C (RJ45), 6P6C / 6P4C / 6P2C (RJ12 family), 4P4C (RJ11)	Covers telecom + datacom terminations with one tool.
Net weight	320 ± 5 g	Weight impacts fatigue for high-volume terminations and ladder work.
Material	Body: carbon steel; Handle: polypropylene (PP), yellow	Carbon steel improves durability; PP handle improves grip and insulation.
Size	19.8 × 7.3 × 1.8 cm	Compact enough for tool-bag carry; stable leverage for repeat crimps.

Practical rule

If your sites have mixed voice + data drops, choose a 4P/6P/8P tool to reduce inventory SKUs and avoid technicians using the wrong die set.

Key takeaway

Procurement should treat crimp tools as a quality-control asset: cheap tools cost more when rework and callbacks are counted.

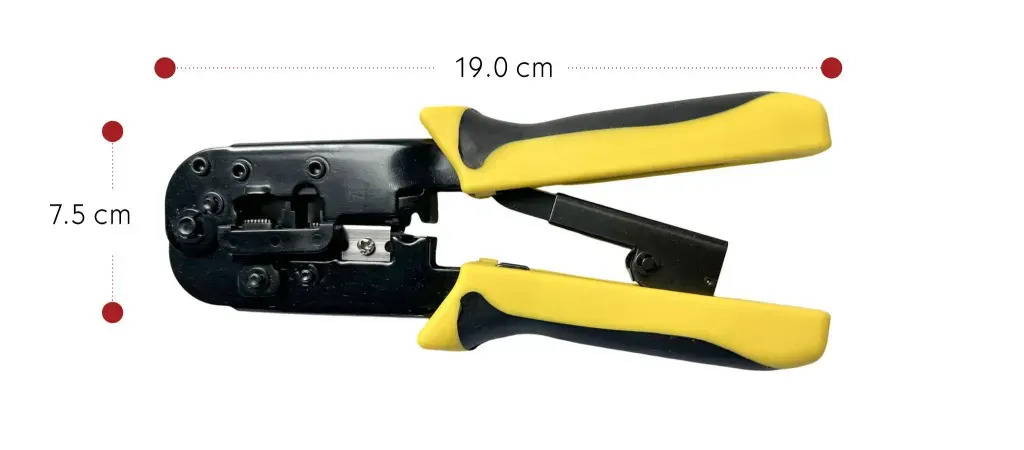

ZCCS003-Y-Product-Size

ZCCS003-Y-Product-Size2

■ 3) Features That Matter (Field View)

Field reality

Most “bad cables” are actually “bad terminations.” A consistent crimp cycle (ratchet) is one of the simplest ways to reduce hidden failures.

Feature list (what matters on projects)

For crimping modular plugs in parallel action.
Cuts, strips, and crimps modular plugs without changing the modular (DIE) set.
A smooth ratcheting mechanism helps ensure positive connections.
Middle carbon steel frame hardened & black oxide finish (durability + corrosion resistance).
Lightweight, durable, and compact for daily carry.
Additional locker for storage after work.
Strips round cables.

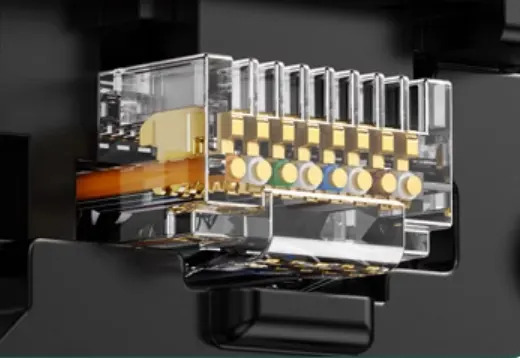

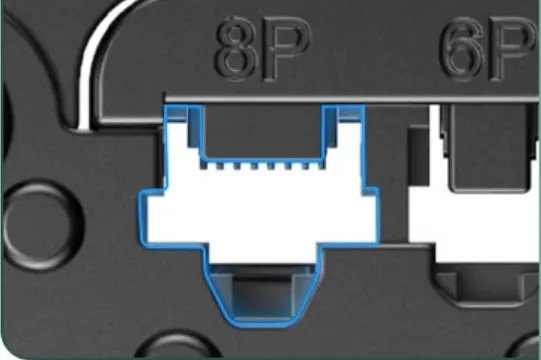

Press-to-port-display Demonstrated-after-crimping

■ 4) Connector & Cable Compatibility

Compatibility is your first decision gate. Confirm plug family (positions/contacts) and whether the plug is standard or pass-through before placing bulk orders.

Connector family	Positions / Contacts	Typical use	Risk point	Engineer check
RJ45	8P8C	Ethernet patch cords, structured cabling, PoE drops	Under-crimp & miswire causes intermittent link / PoE issues	Verify wiring (T568A/B), test continuity on every cable
RJ12 family	6P6C / 6P4C / 6P2C	Telephone / control / low-pair voice wiring	Wrong contact population creates dead lines	Confirm plug spec (how many contacts are loaded)
RJ11 handset	4P4C	Handset cords and legacy voice accessories	Using the wrong die profile damages plug latch or pins	Test fit + visual pin alignment after crimp
Cable stripping	Round cables	General cable prep for modular terminations	Nicked conductors = hidden intermittent failures	Set stripping depth and inspect under good lighting

■ 5) Decision Rules / Engineer’s Shortcut

Use the table below as a fast selection rule. The correct tool is the one that matches your connector mix and minimizes the probability of re-termination.

Decision factor	Choose this 4P+6P+8P Normal Type when…	Choose another option when…	Impact on cost & risk
Connector mix	You need RJ45 + RJ12 + RJ11 capability in one tool.	You only terminate RJ45 (then a dedicated RJ45 tool may be faster).	Fewer tools to manage; fewer wrong-tool incidents.
Plug type	Your project uses standard modular plugs (non pass-through).	You primarily use pass-through RJ45 plugs (use EZ/pass-through crimper).	Wrong match increases scrap rate and rework time.
QA threshold	You want repeatable crimps across technicians (ratchet helps).	You accept occasional re-termination (temporary/low-stakes cabling).	Higher consistency lowers callbacks and downtime.
Deployment scale	Multi-site / multi-team rollout where standardization matters.	Single tech, small job, low variation.	Standardization simplifies training and reduces variability.

Practical rule

If your work scope includes handset cords or legacy voice, do not force a 6P/8P-only tool—choose 4P/6P/8P to eliminate “tool mismatch” failures.

Key takeaway

The real KPI is re-termination probability. Lower it, and your total installed cost drops—even if the tool costs slightly more.

■ 6) Workflow + QA Checklist

Use a simple, repeatable workflow to reduce hidden defects. This checklist supports RJ45 terminations and can be adapted for 6P/4P modular plugs.

Step	Action	Typical defect	Quick QC
1	Prepare cable: keep pair twists close to the plug; straighten conductors only as needed.	Excess untwist (performance loss) or conductor deformation.	Set a site rule for maximum untwist; spot-check randomly.
2	Strip jacket using the tool stripper; avoid nicking insulation.	Nicked conductors (intermittent opens later).	Visual check under bright light; re-strip if damaged.
3	Trim conductors evenly; ensure proper conductor length for the plug type.	Uneven conductor ends; poor pin contact.	All conductors seat fully; jacket captured by strain relief.
4	Insert conductors; verify order (e.g., T568A/T568B for RJ45).	Miswire / crossed pairs.	Color order check before crimp; do not rely on “memory.”
5	Crimp fully; allow the ratchet cycle to complete.	Half-crimp / under-crimp.	Uniform pin set; no wobble; latch intact.
6	Test: continuity for all; for critical jobs add certification testing per plan.	Hidden opens/shorts; intermittent contact.	Document pass/fail for traceability and acceptance.

Production-Process-658x1024

■ 7) Procurement Notes (Cost & Risk)

For purchasing, the tool is not just a “hand tool item”—it affects labor efficiency, scrap, and SLA risk. Define the requirements in the PO to avoid mismatches.

Field reality

The most expensive crimper is the one that causes repeated re-terminations and truck rolls.

Key takeaway

Confirm the connector set (4P/6P/8P) and whether you need pass-through support before committing to large quantities.

Procurement item	Recommended requirement	Why it reduces cost/risk
SKU confirmation	Confirm SKU as ZCCS003-Y (and any listing suffix like YB if used).	Prevents wrong-item receiving and delays on site.
Handle color	Standard: yellow PP; custom color available (MOQ: 3000 pcs).	Supports team standardization and internal asset control.
QC method	Define minimum test: continuity; define escalation: certification testing for critical links.	Aligns tool selection with acceptance criteria and reduces callbacks.
Spare strategy	Keep 1 spare tool per crew for time-sensitive rollouts.	Avoids downtime when a tool is lost/damaged mid-project.

Widely-used-in-engineering-home-improvement-843x1024

■ 8) Conclusion + Final CTA

If your field work includes a mix of handset/telephone/Ethernet modular terminations, a 4P+6P+8P normal type crimper is a practical way to simplify tool kits while improving termination consistency. Standardize the workflow, enforce basic QC (continuity testing), and you’ll reduce rework costs and improve long-term maintainability.

FINAL CTA — Send Your Parameters for Fast Quoting

Share your plug types (RJ11/RJ12/RJ45), cable type (round/flat, UTP/STP), quantity, and any customization needs (handle color / branding) to receive the right recommendation.

Request Datasheet / Quote Back to Top
