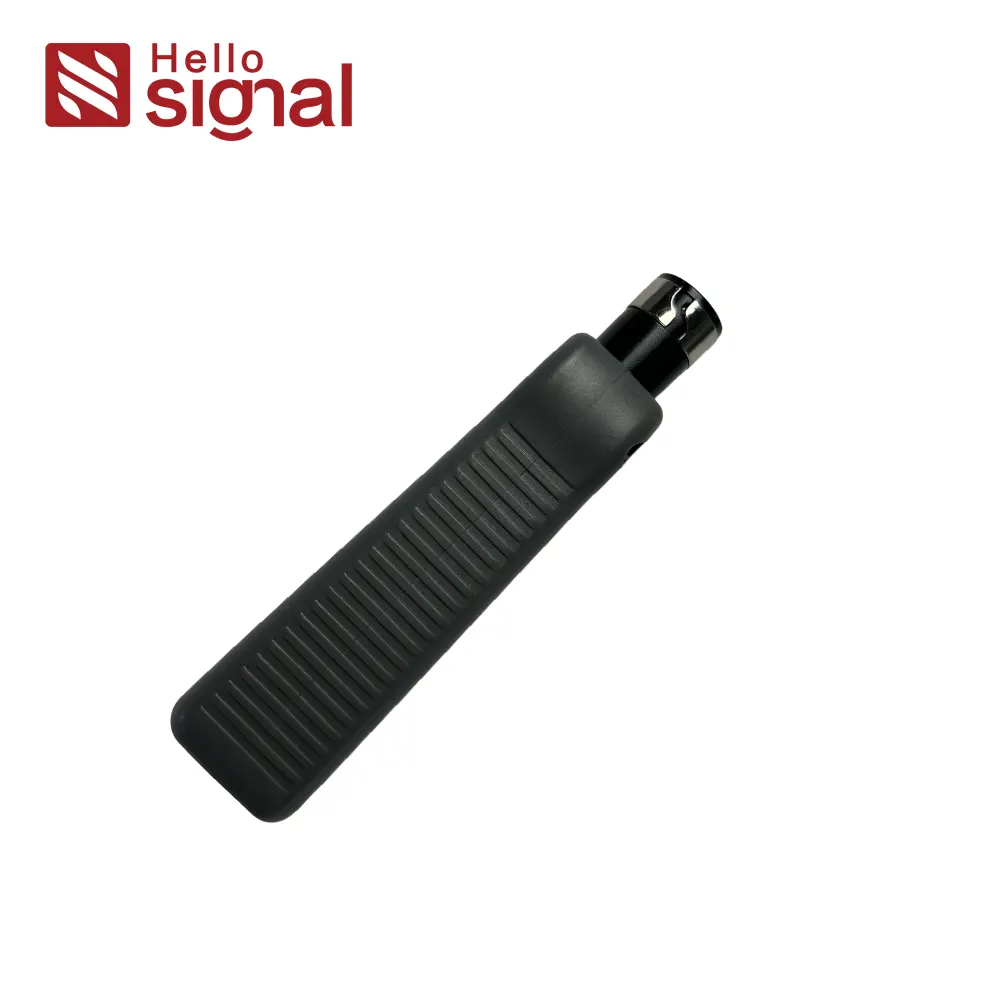

Punch Down Tool ZCPDT002-G | 110 Blade IDC Termination Tool for Patch Panels & Modules

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Copper Cabling Infrastructure • Networking Tools & Accessories

Punch Down Tool – Network Impact Block Termination Tool with 110 Blade (ZCPDT002-G)

A compact punch-down tool for fast, repeatable IDC terminations on network/telephone distribution frames and modules—focused on lower rework, clean trims, and predictable acceptance results.

Structured Cabling Engineer Network Installer Telecom Technician MRO / Maintenance Procurement Project Lead

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

110 blade type impact termination for stable seating on IDC terminals.
105±5g lightweight body reduces fatigue for high-count terminations and service calls.
Designed for fast cutting + flat trims to minimize shorts, residue, and rework risk.

Contents

What This Tool Solves On Site
Key Specifications
Features That Matter (Field View)
Applications & Compatibility
Decision Rules / Engineer’s Shortcut
Workflow + QA Checklist
Procurement Notes (Cost & Risk)
Conclusion + Final CTA

■ 1) What This Tool Solves On Site

IDC termination quality directly drives your network’s stability. Most “random” link issues start at the termination: incomplete seating, uneven cuts, or insulation damage. A dedicated impact punch-down tool helps crews deliver consistent seating force and clean trims—reducing troubleshooting time and future maintenance risk.

Field reality

A termination can pass a quick visual check yet fail later. Partial seating and messy trims often show up as intermittent faults after vibration, heat cycles, or cabinet rearrangement.

Key takeaway

Treat punch-down tools as a quality control lever: better seating + cleaner cuts typically reduces callbacks far more than the tool’s unit price.

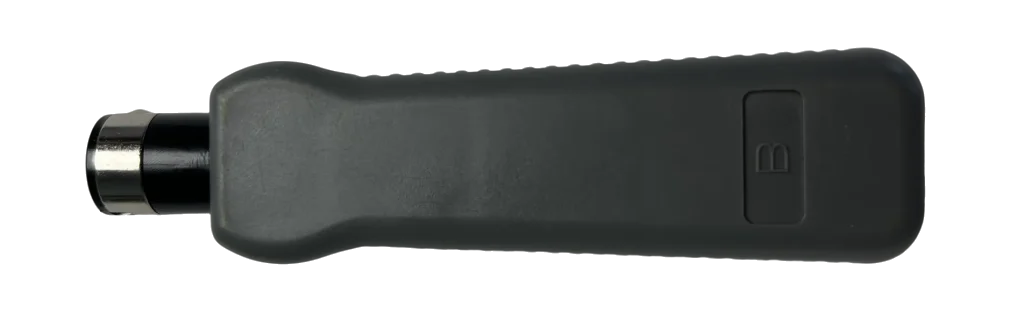

ZCPDT002-G2-1024x313

■ 2) Key Specifications

Item	Value	Why It Matters
SKU	ZCPDT002-G	Locks your BOM identity and avoids mixed tools across crews.
Model / Name	ZCPDT002-G Punch Down Tool	Clarifies this is an IDC termination tool (not a crimper).
Blade type	110 blade type	Aligns with common data IDC terminations and acceptance standards.
Application	Network distribution frame, telephone distribution frame, network module, telephone module	Supports structured cabling + telecom cross-connect work.
Net weight	105 ± 5 g	Lower fatigue and fewer operator errors during high-count terminations.
Material	Body: ABS + TPR; Color: Orange	Grip control improves seating accuracy; durable for field use.
Size	11.8 × 3 × 2.8 cm	Compact for wiring closets, cabinets, and tool pouches.

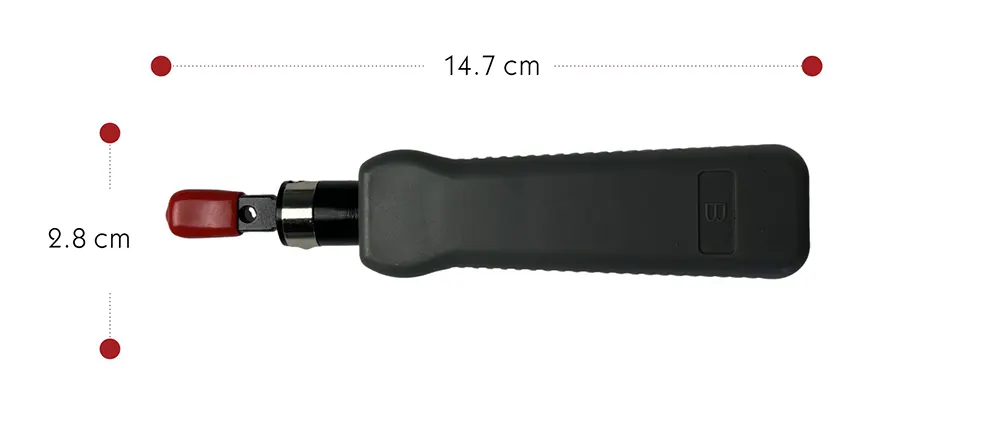

Punch-Down-Tool-Product-Size

■ 3) Features That Matter (Field View)

ZCPDT002-G focuses on the two outcomes that matter in the field: accurate wire binding and clean, flat cutting with no excess tails. That combination reduces shorts, cabinet clutter, and long-term intermittent issues.

Practical rule

If your project has acceptance testing (or strict callback targets), standardize the punch-down tool model per crew and replace worn blades early—blade condition is a hidden driver of failure rate.

Feature highlights

Compact impact punch-down tool designed around 110 blade type workflows.
ABS + TPR body improves grip and control during repeated terminations.
Optimized for fast cutting and flat trims (no residue) to reduce shorting risk.
Alloy steel “double bit” concept supports punch + tangential cutting tasks (field efficiency).

2-in-1-knife-head Threading-bunk

■ 4) Applications & Compatibility

This tool is built for common IDC termination tasks across distribution frames and modules. Use it where speed, repeatability, and trim cleanliness directly affect commissioning time and maintainability.

Scenario	Typical components	Why it’s used	Main risk it reduces
Network distribution frame	IDC terminals, cross-connect points	Repeatable seating and fast trimming for multiple pairs	Intermittent opens due to partial seating
Telephone distribution frame	Telephone modules / terminal blocks	Cleaner wiring with flat trims	Shorts/instability caused by conductor tails
Network & telephone modules	Modules in cabinets and wall boxes	Compact form factor for tight spaces	Rework labor during commissioning

■ 5) Decision Rules / Engineer’s Shortcut

Use this quick table to decide whether ZCPDT002-G is the right choice for your termination method and risk profile.

Decision factor	Choose ZCPDT002-G when…	Choose other punchdown types when…	Cost / risk impact
Termination standard	Your site uses 110 blade type IDC terminations and you need consistent results.	Your blocks require 66, Krone, or a dedicated system blade.	Wrong blade type increases scrap and failure rate.
Work volume	You terminate many pairs and want a lightweight tool (105±5g) to reduce fatigue.	You need adjustable impact force for very hard/soft IDC terminals.	Less fatigue = fewer errors and faster delivery.
Acceptance & maintenance	You care about clean trims (flat, no residue) to reduce future shorts and callbacks.	Your process uses fixed bench tools or specialized modules with proprietary tools.	Cleaner trims reduce intermittent failures and troubleshooting time.
Standardization	You want one compact punchdown tool model for mixed network/telephone module tasks.	You want separate tools per subsystem and keep them at fixed wiring stations.	Standardization reduces training time and variance between technicians.

Practical rule

Lock the IDC standard + tool + SOP together. Most rework spikes happen when crews mix standards (110/66/Krone) or change tools mid-project.

Key takeaway

Procurement should evaluate punchdown tools by installed cost (labor + rework + callbacks), not unit price.

■ 6) Workflow + QA Checklist

Use a simple, repeatable punch-down SOP to avoid hidden defects. The checklist below is suitable for most distribution frame and module terminations.

Step	Action	Common failure mode	QC check
1	Prepare cable: strip jacket carefully; keep pair twist as close as practical to IDC.	Over-untwist; damaged insulation; crossed pairs.	Visual check: clean insulation, correct routing.
2	Place each conductor into the correct IDC slot (follow module/frame labeling).	Wrong slot/color order; conductor not centered.	Confirm conductor sits fully in the slot before punching.
3	Punch down straight: apply firm, even force; complete seat and cut action.	Angled punch → partial seat; cracked plastic around IDC.	Uniform seat line; conductor stable with no wobble.
4	Inspect trim: ensure cutting is flat with no excess conductor tails.	Excess tails cause shorts; incomplete cuts leave residue.	Check under good lighting; remove debris immediately.
5	Test: continuity/verification per project plan (basic tester minimum; certification if required).	Hidden opens/shorts from poor seating or wire damage.	Record pass/fail for traceability and acceptance.

■ 7) Procurement Notes (Cost & Risk)

To avoid mismatches, procurement should explicitly define the IDC standard (110 blade type), application, and acceptance method. For multi-crew projects, standardize tools to reduce variance and training overhead.

Field reality

“Tool mismatch” is a hidden schedule killer: the wrong blade standard creates scrap, rework, and delays at the termination stage when the job is already time-critical.

Key takeaway

Define the standard and stock spares: one punchdown tool per installer plus one spare per crew is usually cheaper than downtime.

Procurement item	Recommended requirement	Why it reduces cost/risk
SKU lock	ZCPDT002-G	Avoids mixed models and inconsistent results across crews.
Standard statement	110 blade type	Prevents wrong tool purchases and scrap spikes.
Application scope	Network/telephone distribution frames + modules	Aligns with installation reality and avoids under-spec tools.
Acceptance method	Continuity verification minimum; certification plan if required	Aligns install SOP with commissioning and reduces callbacks.

■ 8) Conclusion + Final CTA

If your workflow involves IDC terminations on distribution frames and modules, ZCPDT002-G is a practical 110 blade type punch-down tool to improve seating consistency and deliver flat, clean trims. Standardize the tool per crew, follow a basic punch-down SOP, and validate with testing to reduce commissioning delays and long-term maintenance risk.

FINAL CTA — Send Your Parameters for Fast Quoting

Please share your IDC standard (110), application (frame/module type), cable category (UTP/STP), quantity, and any acceptance requirement (basic verification vs certification).
