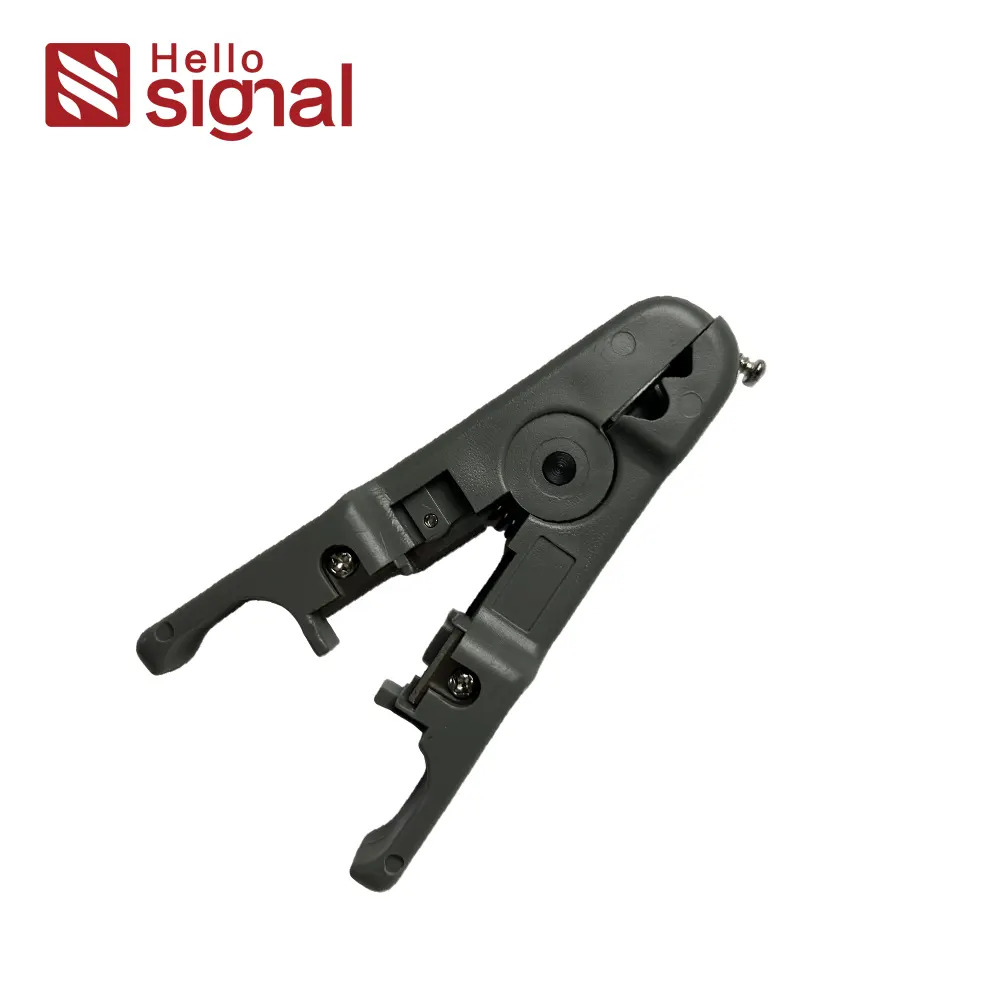

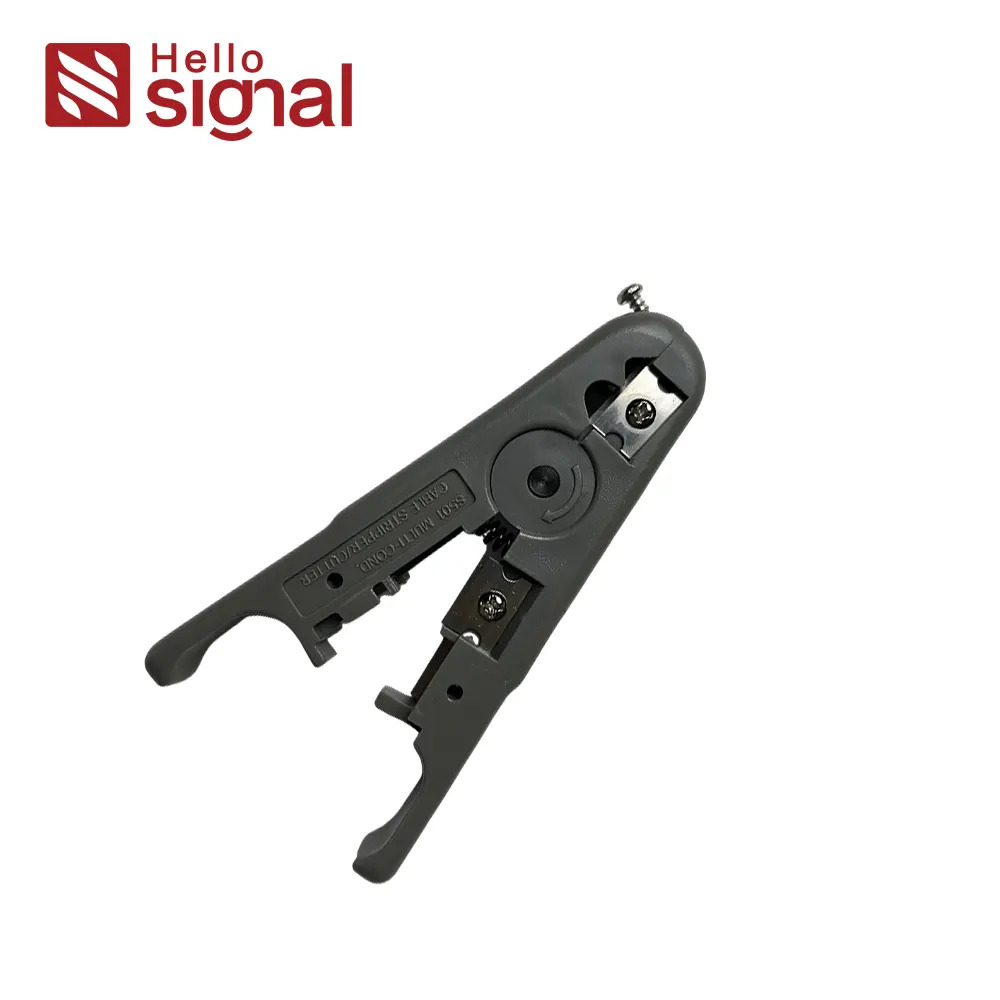

Wire Stripper Tool ZCWST001-G | UTP/STP Cable Stripper for Round & Flat Cable (Ø3.2–9mm)

Wire Stripper Tool ZCWST001-G | UTP/STP Cable Stripper for Round & Flat Cable (Ø3.2–9mm)

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Copper Cabling Infrastructure • Networking Tools & Accessories

Professional Wire Stripper Tool for UTP/STP (Round or Flat Cable) — Ø3.2–9 mm (ZCWST001-G)

A compact cable stripper engineered for repeatable jacket removal on UTP/STP—helping installers reduce insulation damage, cut rework, and keep termination quality consistent across teams.

Structured Cabling Engineer Network Installer Telecom Technician MRO / Maintenance Procurement Project Lead

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

Designed for stripping UTP/STP cable jackets within Ø3.2–9 mm (round or flat).
Twist-lock blade holder enables fast blade changes and reduces pullout during work.
Built-in spare blade storage and security lock for stable output and safer transport.

Contents

Why a dedicated UTP/STP stripper matters
Key specifications
Features & what they prevent
Use cases & cable compatibility
Decision Rules / Engineer’s Shortcut
Workflow + QA checklist
Procurement notes (cost & risk)
Conclusion + final CTA

■ 1) Why a dedicated UTP/STP stripper matters

In structured cabling, stripping quality is a reliability gate. Over-cutting can nick insulation and force early untwisting, while under-cutting slows down work and creates technician-to-technician variation. A purpose-built stripper helps teams keep jacket removal consistent—so terminations pass acceptance and remain stable over time.

Field reality / Practical rule

If stripping is done with knives or mixed tools, your defect rate becomes “operator dependent.” Standardizing one stripper model plus a simple SOP is one of the lowest-cost ways to reduce re-termination.

Key takeaway

Evaluate by installed cost: labor minutes saved + fewer failed terminations usually outweigh unit price in the first project.

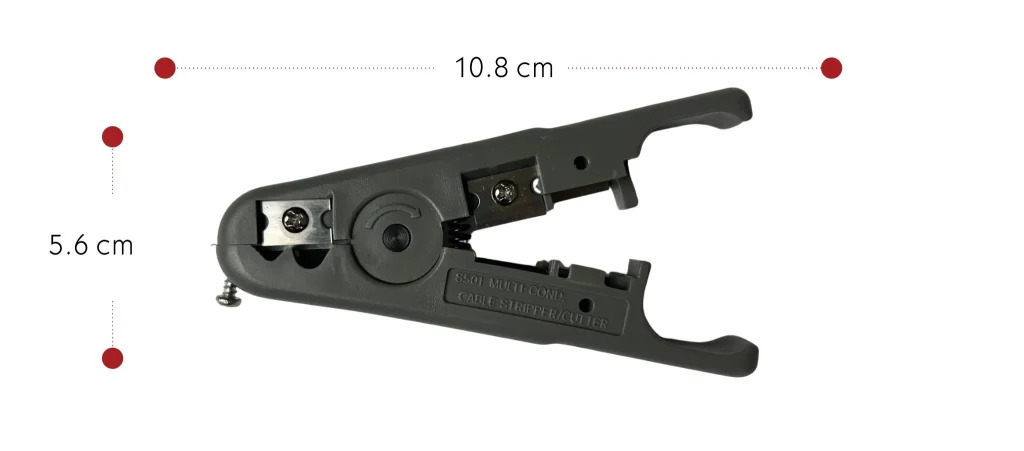

Professional-Wire-Stripper-Tool1-1024x451

■ 2) Key specifications

Item	Value	Decision impact (engineer/procurement)
Model / Name	ZCWST001-G Wire Stripper Tool	Locks your work method and avoids mixed tools across crews.
Application	Suitable for strips UTP/STP from Ø3.2–9 mm	Covers common data cable jacket diameters used on site.
Net weight	40 ± 5 g	Lower fatigue during high-count termination tasks and service calls.
Material	Product body: ABS	Durability and stable handling under field conditions.
Colour	Grey	Standard look for easy tool control and site management.
Size	10.8 × 5.6 × 1.7	Compact for tool pouches; practical for tight cabinets and wall boxes.

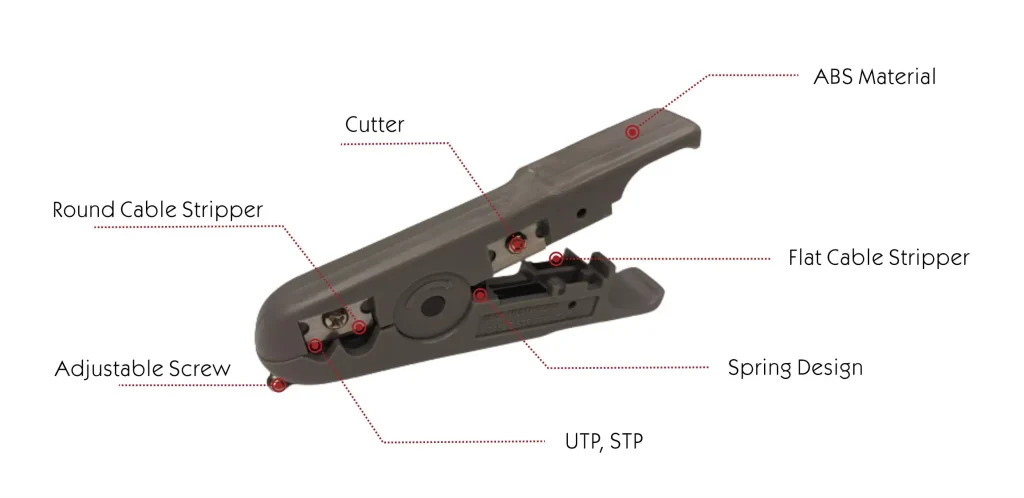

Wire-Stripper-Tool-Production-Function-1024x498

■ 3) Features & what they prevent

The best stripper is the one that keeps workmanship consistent under schedule pressure. The features below map directly to common field failure modes.

Feature	What it does in practice	Risk it reduces
Spare blade storage chamber (with cover)	Stores spare blades on-tool and keeps them protected.	Downtime, inconsistent results when blades wear, on-site improvisation.
Twist-lock style holder	Quick blade changes and prevents pullout during use.	Blade movement that causes uneven stripping or cable damage.
Smooth ratcheting mechanism	Delivers controlled action and repeatability across technicians.	Operator variance; inconsistent jacket cut and exposed length.
Rubber grip handle	Improves control in cabinets, ladders, or when wearing gloves.	Slipping that can nick insulation or over-strip.
Built-in security lock	Locks tool for safer storage and transport.	Safety incidents and tool damage in pouches.
Compact, rugged design	Portable for service calls and tight installations.	Loss of productivity in distributed work areas.
Parallel action & force saving	Helps maintain stable output with less fatigue over long shifts.	Quality drop under high-count termination days.

Field reality / Practical rule

When blades wear, crews compensate by squeezing harder—this increases insulation damage and inconsistent strip length. Keep spare blades available and define a replacement rhythm in your SOP.

Key takeaway

A stripper is a quality standardization tool. Lock the tool model + SOP early to protect schedule and acceptance performance.

■ 4) Use cases & cable compatibility

ZCWST001-G is designed for UTP/STP cable jacket preparation across common jobsite tasks. It supports stripping within the stated diameter range and helps keep exposed length consistent—especially useful for large-scale terminations.

Scenario	Typical work	What to control	Why it matters
Patch panel termination	Strip jacket to expose pairs for IDC punch-down	Keep jacket close to termination; avoid early untwist	Higher pass rate in commissioning/certification testing
Keystone jack / outlet	Fast prep in wall boxes and tight spaces	Consistent exposed length across technicians	Fewer revisits and re-terminations after handover
Field repair / MAC	Re-terminate cables during maintenance	Blade condition; lock tool for transport	Minimizes downtime and accidental cable damage
Mixed site inventory	Standardize stripping method across round/flat cable usage	Confirm OD within Ø3.2–9 mm	Keeps one tool model across projects and teams

■ 5) Decision Rules / Engineer’s Shortcut

Use the table below to decide quickly whether ZCWST001-G matches your project constraints and acceptance targets.

Decision factor	Choose ZCWST001-G when…	Choose other solutions when…	Cost / risk signal
Cable scope	Your UTP/STP cable jackets fall within Ø3.2–9 mm.	You handle micro cables below range or oversized industrial jackets.	Out-of-range tools increase scrap and termination variance.
Work volume	You have high termination count and want lightweight handling (40±5g).	You need bench stripping for production lines with adjustable stations.	Lighter tools reduce fatigue and error rates across shifts.
Standardization	You want spare blade storage + quick changes + security lock for crews.	You allow mixed knives/hand tools based on preference.	Mixed methods increase troubleshooting labor and callbacks.
Acceptance requirements	You want lower risk of insulation nicks impacting link stability/testing.	Acceptance is purely functional and rework cost is low.	Stricter acceptance favors controlled, standardized stripping.

■ 6) Workflow + QA checklist

A repeatable stripping SOP reduces rework and protects cable performance. Use this checklist as a baseline for installation and maintenance teams.

Step	Action	Typical defect	QC check
1	Confirm cable type (UTP/STP) and jacket OD is within Ø3.2–9 mm.	Wrong tool range → uneven cuts.	Visual: tool fits properly; no crushing marks.
2	Strip jacket with controlled pressure; avoid over-rotation and over-squeeze.	Insulation nicks; damaged shielding layer (STP).	Inspect: insulation intact; foil/braid not torn.
3	Keep pair twist close to termination point; expose only what you need.	Over-untwist increases performance variability.	Check: consistent exposed length across samples.
4	Terminate per spec; remove debris; engage security lock for storage.	Debris in cabinet; safety incidents in tool pouch.	Housekeeping + verify tool is locked.
5	Test per project plan (continuity minimum; certification if required).	Intermittent failures from hidden damage near strip point.	Record results for traceability.

■ 7) Procurement notes (cost & risk)

The procurement objective is to prevent variation and rework. Define the OD range, tool SKU, and a spare plan (blades) so crews don’t improvise on site.

Field reality / Practical rule

Blade wear is a hidden cost driver. If crews report “harder to strip,” defects rise quickly. Keep spare blades available and replace before quality drops.

Key takeaway

Typical field setup: 1 tool per installer + 1 spare tool per crew is cheaper than downtime and re-termination labor.

Procurement item	Recommended requirement	Why it reduces cost/risk	What to include in RFQ
SKU lock	ZCWST001-G	Prevents mixed tool performance across crews and sites.	SKU + quantity + delivery requirement.
Compatibility statement	UTP/STP stripping for Ø3.2–9 mm	Avoids under/over-range tools that increase scrap.	List your cable categories + typical OD range.
Spares plan	Spare blades + replacement interval in SOP	Keeps quality stable and reduces hidden defect rate.	Monthly termination volume; request spare ratio.
Storage & safety	Security lock required for transport/storage	Reduces incident risk and protects tool condition.	Specify safety expectations (lock, labeling).

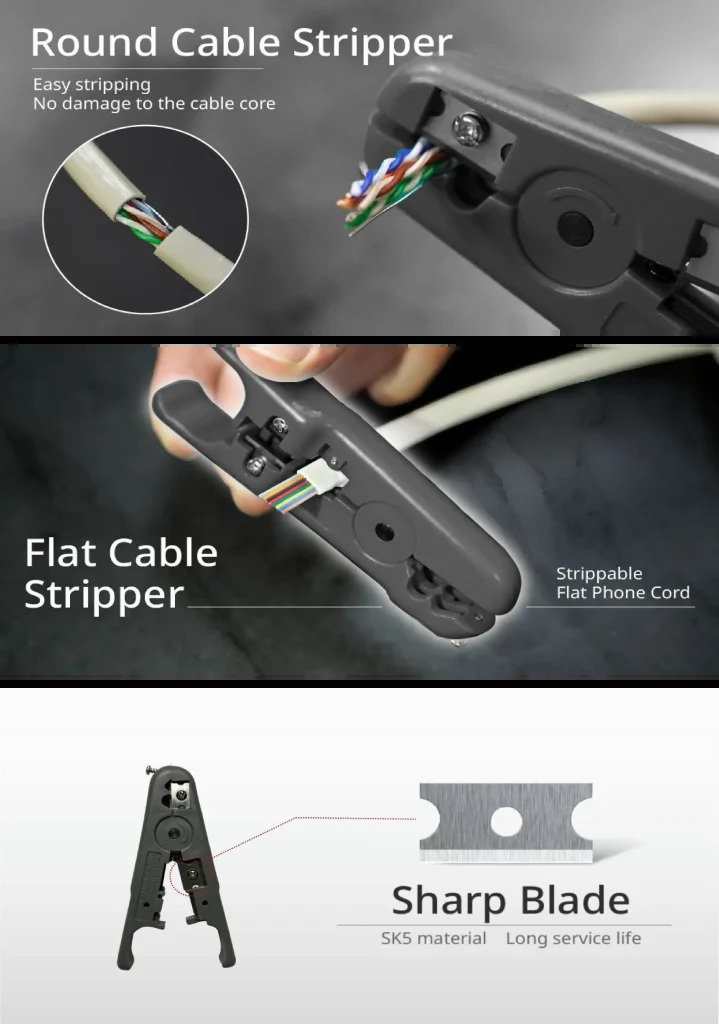

Professional-Wire-Stripper-Tool2-719x1024

■ 8) Conclusion + final CTA

For teams terminating UTP/STP regularly, ZCWST001-G is a compact, lightweight wire stripper that supports common jacket sizes (Ø3.2–9 mm) and improves stripping consistency. Standardize the tool model per crew, document a short stripping SOP, and keep spare blades available—this is one of the simplest ways to reduce rework and protect network reliability.

FINAL CTA — Send Your Parameters for Fast Quoting

Please share your cable type (UTP or STP), typical jacket OD range, quantity, and your installation scenario (patch panel / keystone / maintenance). We’ll match the tool and provide datasheet/quotation quickly.

Request Datasheet / Quote Back to Top
