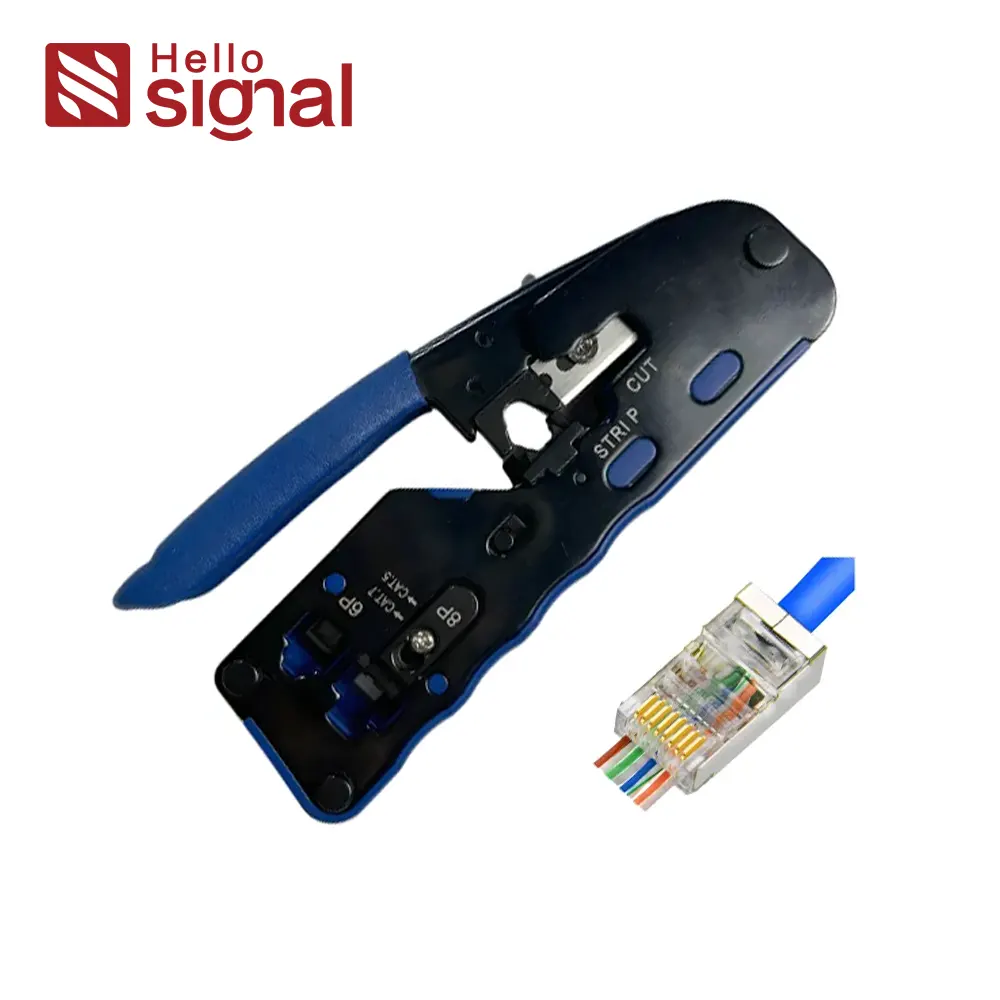

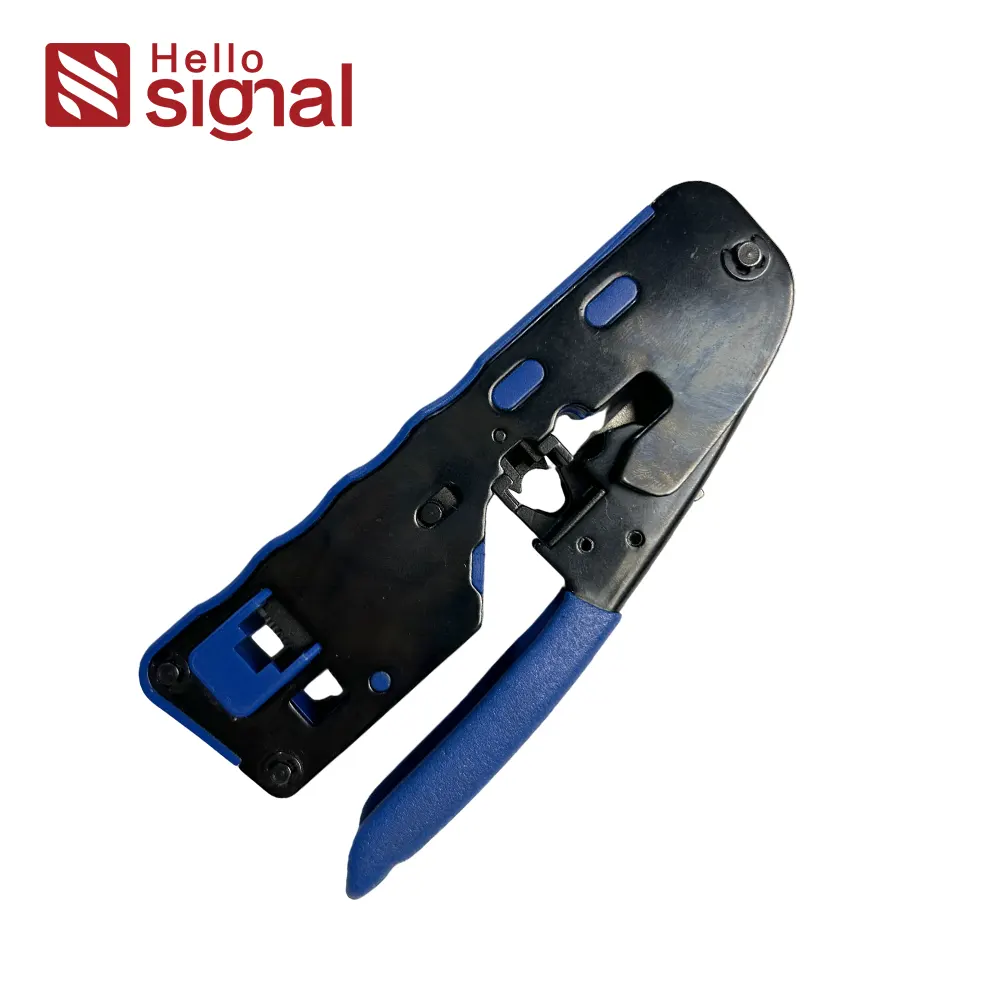

Modular Plug Crimping Tool EZ / Pass Through ZCMPCT001-BBE | RJ45 Crimper

Modular Plug Crimping Tool EZ / Pass Through ZCMPCT001-BBE | RJ45 Crimper

Model:
Networking tools & Accessories
Brand:
hellosignal
Categories:
Networking tools & Accessories

Availability:



Inquire

Product Description

Copper Cabling Infrastructure • Networking Tools & Accessories

Modular Plug Crimping Tool – EZ / End Pass Through (ZCMPCT001-BBE)

A purpose-built crimper for pass-through RJ45 (8P8C) terminations—designed to reduce rework, control scrap rate, and improve termination consistency across field crews.

Structured Cabling Engineer Network Installer Data Center Ops Telecom Technician Procurement Project Lead

Request Datasheet / Sample More Ethernet Networking tools & Accessories

Quick Takeaway

Optimized for EZ / pass-through RJ45 terminations to shorten assembly time and improve first-pass success.
Integrated cut + strip + crimp workflow helps reduce plug waste and rework labor.
Ratcheting + parallel action improves crimp consistency (critical for QA and maintenance).

Contents

What This Tool Solves On Site
Key Specifications
Features That Matter (Field View)
Compatibility & Use Cases
Decision Rules / Engineer’s Shortcut
How to Use (EZ Pass-Through)
Procurement Notes (Cost & Risk)
Conclusion + Final CTA

■ 1) What This Tool Solves On Site

In Ethernet deployment, the termination point is the most frequent failure origin. Pass-through RJ45 connectors can reduce wiring mistakes, but only if the tool reliably trims excess conductors and completes a full crimp cycle. This is why EZ / End Pass Through crimpers are commonly selected for high-volume field termination.

Field reality

The cost of a bad crimp is rarely the connector itself. It is the re-termination time, failed QA checks, and the truck roll when links drop intermittently.

Key takeaway

A dedicated pass-through crimper is a low-cost control to improve first-pass yield when multiple technicians terminate under schedule pressure.

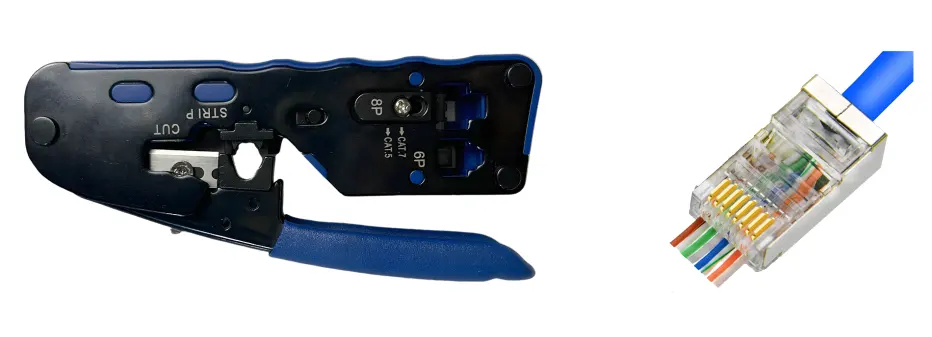

ZCMPCT001-BBE

■ 2) Key Specifications

Item	Value	Why It Matters
SKU	ZCMPCT001-BBE	Reference for RFQ, inventory, and project BOM consistency.
Model + Name	ZCMPCT001-BBE Modular Plug Crimping Tool – EZ / End Pass Through	Confirms it is intended for pass-through style terminations.
Application	8P8C (RJ45); CAT5E / CAT6 / CAT7	Aligns with the most common copper Ethernet deployments.
Net weight	320 ± 5 g	Lower fatigue in repeated terminations; easier overhead/ladder work.
Material	Body: carbon steel; Color: black + blue; Handle color customizable (MOQ: 3000 pcs)	Durability and standardization for multi-crew rollouts; customization supports asset control.

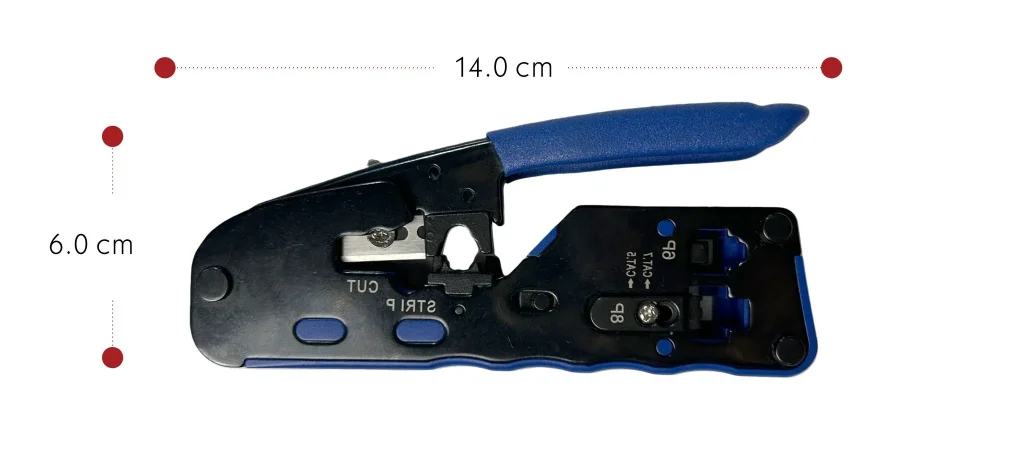

Size	14 × 6 × 2.4 cm	Compact for tool bags; balanced leverage for consistent crimp cycles.

ZCMPCT001-BBE-Product-Size-1024x450

ZCMPCT001-BBE-Product-Size2-1024x747

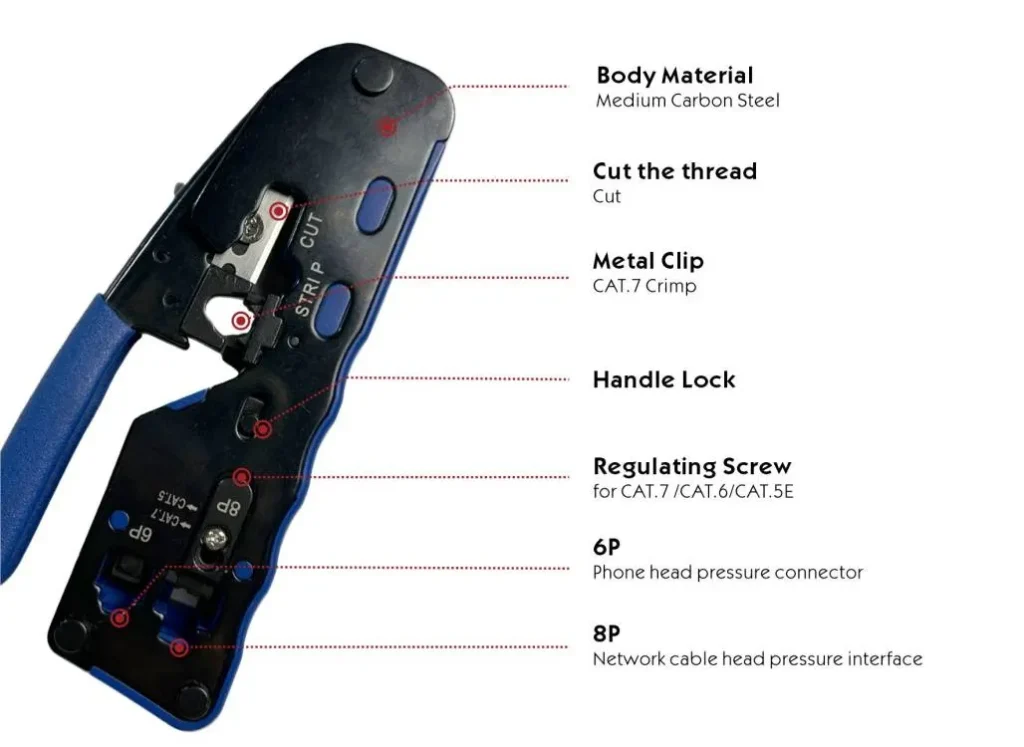

■ 3) Features That Matter (Field View)

Practical rule

If you use pass-through plugs, do not “make it work” with a standard crimper. Use a pass-through crimper to control cut quality and reduce intermittent contact issues.

Feature list (project-relevant)

For crimping modular plugs in a parallel action.
Cuts, strips, and crimps modular plugs without changing the modular (DIE) set.
Smooth ratcheting mechanism helps ensure positive connections.
Middle carbon steel frame, hardened and black oxide finished.
Lightweight, durable, and compact for daily carry.
Additional locker for storage after work.
Strips round cables.

■ 4) Compatibility & Use Cases

This tool is intended for pass-through RJ45 (8P8C) terminations. Confirm your connector design (pass-through vs standard) before standardizing across teams to avoid plug incompatibility and scrap.

Item	Supported	Typical scenario	Risk if mismatched
Connector	RJ45 (8P8C) pass-through	On-site patch cord fabrication, quick field terminations, maintenance swaps	Poor trim, incomplete pin set, higher intermittent failure rate
Cable categories	CAT5E / CAT6 / CAT7	Office IT, industrial network, security/IoT uplinks, PoE drops (per project spec)	Wrong plug/cable match increases scrap and time-to-fix
Application scope	Engineering and home improvement	Small renovations, on-site upgrades, repair work, technician kits	Low repeatability if tool is not standardized across users

■ 5) Decision Rules / Engineer’s Shortcut

Use this shortcut table to select the right crimper based on connector design and project acceptance risk.

Decision factor	Choose ZCMPCT001-BBE (EZ / Pass-Through) when…	Choose a standard crimper when…	Cost & risk impact
Connector design	Your RJ45 plugs are pass-through and require trimming flush after insertion.	Your plugs are standard (non pass-through).	Wrong choice increases scrap and intermittent failures.
Volume	You terminate many ends per day; you want higher first-pass yield across technicians.	Small job, low repetition, re-termination is acceptable.	High volume amplifies small defect rates into big labor costs.
Acceptance criteria	Project requires documented testing or low callback rate (maintenance-sensitive).	Temporary cabling or non-critical links.	Tool repeatability reduces post-install troubleshooting time.
Standardization	Multi-team rollout; you want one pass-through model per crew (plus spare).	Single technician work with controlled materials.	Standardization reduces training cost and tech-to-tech variability.

Practical rule

Lock your standard early: pick one pass-through plug + one pass-through crimper model for the entire job. Mixing plug types is a common source of scrap and delays.

Key takeaway

Your target metric is first-pass termination success. A dedicated EZ crimper is often cheaper than repeated re-termination.

■ 6) How to Use (EZ Pass-Through)

Use a standardized workflow to avoid hidden defects. The steps below are the typical EZ pass-through termination process.

Step	Action	Common failure mode	QC check
1	Prepare the cable; arrange wires to T568A or T568B; straighten and align.	Wrong order; excessive untwist.	Visual color-order check before insertion.
2	Insert wires into pass-through RJ45; conductors protrude through the front.	Incomplete insertion; jacket not captured.	Confirm full seating and strain relief position.
3	Trim excess conductors flush (use tool cutter/blade feature).	Protruding wire ends; uneven cut.	Front face clean and flush; no burrs.
4	Crimp fully; allow the ratchet cycle to complete for consistent pin set.	Half-crimp; weak pin contact.	Uniform pin depth; latch intact.
5	Inspect and test with a cable tester (continuity minimum; certification per project).	Hidden opens/shorts; intermittent contact.	Document pass/fail for traceability.

Production-Process-658x1024

■ 7) Procurement Notes (Cost & Risk)

For purchasing, define the connector design and project acceptance method upfront. This prevents tool mismatch and avoids scrap spikes during installation.

Field reality

A low-cost crimper can become the most expensive line item once rework time and callbacks are counted.

Key takeaway

Specify: RJ45 pass-through, cable category, handle color needs, and testing requirement in the PO to avoid mismatches.

Procurement item	Recommended requirement	Why it reduces risk
SKU lock	ZCMPCT001-BBE	Prevents wrong tooling arriving on site.
Connector statement	Pass-through RJ45 (8P8C) only	Avoids incompatibility and high connector scrap.
Testing requirement	Continuity minimum; certification plan if required	Aligns quality expectations with tool selection and SOP.
Handle color	Standard black/blue; customization available (MOQ: 3000 pcs)	Supports asset control and team standardization across sites.

Widely-used-in-engineering-home-improvement-843x1024

■ 8) Conclusion + Final CTA

For projects using pass-through RJ45 connectors, a dedicated EZ crimper like ZCMPCT001-BBE improves termination consistency, reduces connector waste, and lowers rework probability. Standardize the connector type, enforce a simple QC workflow (continuity testing minimum), and your installed cost and maintenance risk will drop measurably.

FINAL CTA — Send Your Parameters for Fast Quoting

Please share your connector design (pass-through RJ45), cable category (CAT5E/CAT6/CAT7), quantity, and any customization needs (handle color / branding) to receive the right recommendation.

Request Datasheet / Quote Back to Top
