RG6 CATV CABLE PRODUCTS CATEGORY

 RG6 S
 RG6 Tri

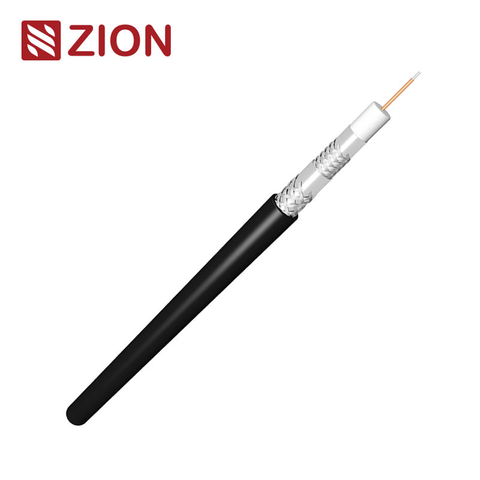

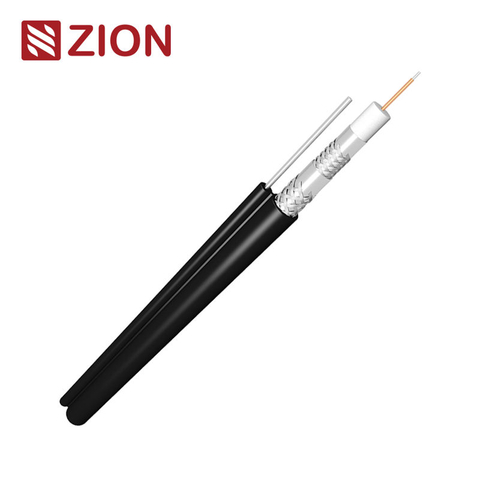

 RG6 Q
 RG6 Dual
 CATV CABLE-RG cable



Coaxial cable is used as a transmission line for radio frequency signals. Common applications of coaxial cable include video and CATV distribution, RF and microwave transmission, and computer and instrumentation data connections. The RG  designation stands for Radio Guide; the U designation stands for Universal.  There are different types of coaxial cable, which vary by gauge and impedance. Gauge refers to the cable’s thickness and is measured by the radio guide measurement or RG number. The higher the RG number, the thinner the central conductor core is. The most commons sizes of coaxial cable for CATV are RG-6, RG-11 and RG-59. For more about its key features and applications, please check our complete guide to CATV RG cable.



Construction and packaging

● Conductor:Solid Copper or Copper Clad Steel

● Insulation: Foam PE

● Shielding: Al/PET Foil, Al_Mg braiding

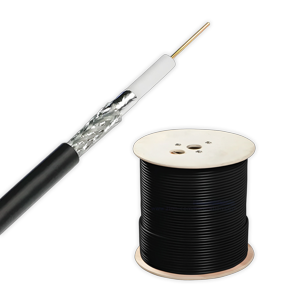

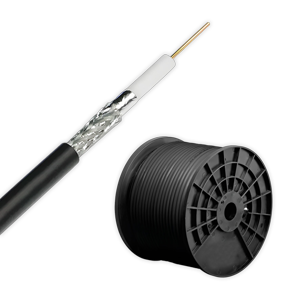

● Bulk cable mainly packed in 100M, 305M,300M,500M

● PVC, PE, LSZH, CM,CMR, CMP available chose for Jacket



Applications

● Rated 3.0 GHz Coaxial Cable

● Characteristic impedance:75 ohm

● CATV

● Schools/Hospitals/Hotels/Malls/Stations/Airports/Casinos/Prisons/Businesses/Personals



CATV Coaxial cable types:

● RG-6 cable have larger conductor (18AWG=1.02mm), so they provide better signal quality. They have thicker dielectric insulation and are made with a different kind of shielding (AL/PET Foil with Braiding) , allowing them to handle GHz level signals more effectively. As this type of cable is thin, it can also be easily installed in walls or ceilings. RG 6 most popular for TV.

● RG-59 cable is similar to the RG-6, but it has an even thinner centre conductor (20AWG=0.81mm). This makes it a good choice for short runs and low-frequency transmissions.

● RG-11 cable has largest conductor (14AWG=1.63mm)  which can make it more difficult to work with. However, it offers a lower attenuation level than RG-6 or RG-59, meaning it can carry data for longer distances.



Reference Standard and Certificates

● UL/ETL/CPR/CE/RoHS/REACH/ISO9001/ANATEL/SABS

● Connectors

● F type connectors available



Production Supplier Profile

● Zion Communication is one of the top manufacturer and exporter of RG coaxial cables.

● Extensive experience in manufacturing for export and problem-solving.

● Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and services, continue to create maximum value for customers!

● Zion Communication  has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.

● Our management and international sales teams are committed to our customers' utmost satisfaction.

 Quick inquiry
Are you looking for CATV Coaxial Cable?
ZION COMMUNICATION  provides CATV coaxial cables from short-run applications to the most critical long distance applications.
Our CATV coaxial cables offer optimum performance for main distribution use in video surveillance systems where extended cable runs are required.
 CATV CABLE-RG cable
Name Size Download
709 CATV Coaxial Cable.pdf 4.06MB download Download
