Why AI Data Centers Need a Coordinated Passive Layer
AI clusters increase pressure on rack density, link count, deployment speed and maintenance accuracy. The passive layer must support large numbers of parallel optical links while keeping every handoff traceable.
High-density MPO/MTP systems can reduce installation time and organize large fiber counts, but interface decisions must be settled early: fiber type, fiber count, Base-8/Base-12/Base-16 design, MPO gender, key orientation, polarity, connector polish and loss grade.
Routes between buildings, entrance rooms and meet-me areas, selected by duct, direct-buried or microduct pathway.
OS2 or OM4 trunks, MPO/MTP panels, cassettes, harnesses, fan-outs and LC patching.
RS485, Cat6A and sensor/actuator cables for controllers, valves, pumps, sensors and monitoring points.
IL/RL, continuity, polarity, end-face inspection, drum lists, port maps and packaging records.
Three-Layer Reference Architecture

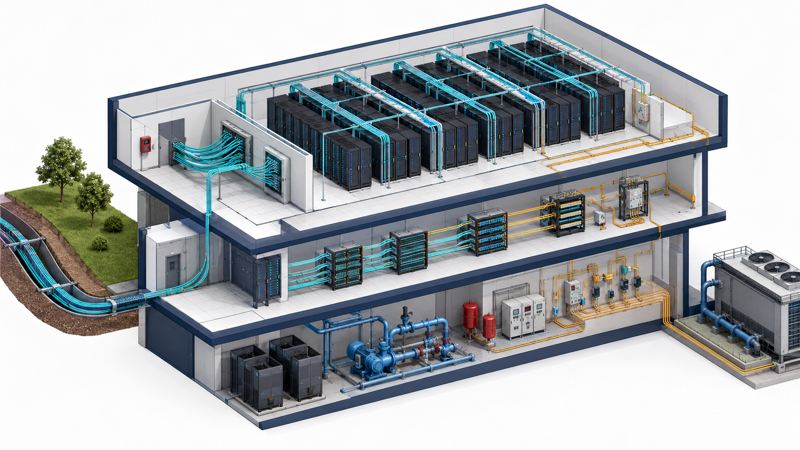

The reference architecture starts with outside-plant fiber at the campus or building entrance, moves through high-density distribution panels in the white space, and includes a separate passive control layer for facility systems.
| Layer | Role | Key Products | Selection Inputs |
|---|---|---|---|
| Campus OSP | Connects buildings, entrance rooms and meet-me areas. | Duct Fiber Optic Cable, Direct-Buried Fiber Optic Cable, Air-Blown Micro Cable | Route, pathway, fiber count, cable OD, pulling condition and drum plan. |
| High-density white space | Links distribution panels, racks and active equipment interfaces. | MPO Trunk Cables, MPO Patch Panels & Cassettes, MPO-LC Harness Cables | OS2/OM4, MPO platform, polarity, gender, loss budget and panel format. |
| Cooling and BMS | Connects controllers, sensors, actuators and management links. | RS485/232 Cable, Sensor & Actuator Cables, CAT6A Ethernet Cable | Protocol, pair count, shielding, jacket, voltage and exposure. |
Configurable Kit Levels
The kit should be sold as a configurable planning framework rather than a universal fixed SKU. Each level reflects a different combination of fiber density, pathway control and facility-control cabling.
| Kit Level | Recommended Scope | Best For | Main Design Inputs |
|---|---|---|---|
| Fiber Core | Campus OSP cable, OS2 trunks, LC patching and modular panels. | Standard data halls and inter-building links. | Route, fiber count, connector, length and fire boundary. |
| High-Density MPO | MPO trunks, cassettes, harnesses, fan-outs and LC patching. | AI rows, high-port-count zones and rapid deployment. | PMD, Base-8/12/16, polarity, gender and loss budget. |
| Fiber + Cooling Control | High-density fiber package plus RS485, Cat6A and sensor/actuator cables. | AI rooms with coordinated facility-control procurement. | Device list, protocol, pair/core count, shield, jacket and voltage. |

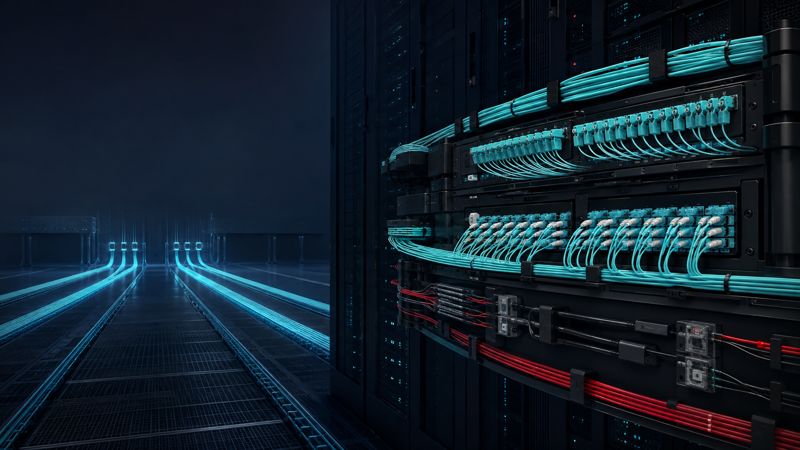

MPO Interface and Route Control

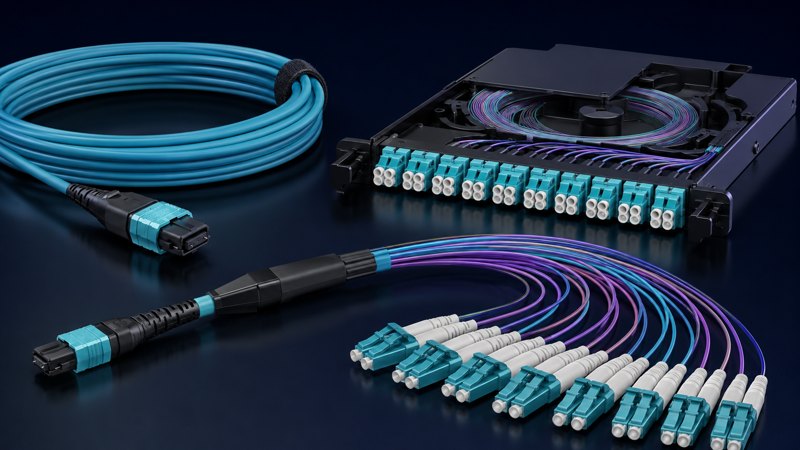

A generic MPO cable specification is incomplete. The quotation should include interface platform, pinning, key orientation, gender, polarity, breakout length and cassette compatibility.
- Assign separate cable IDs, drum IDs and packing lists for Route A and Route B.
- Keep near-end and far-end port records aligned with the physical assembly labels.
- Use the agreed loss budget to choose standard or low-loss assemblies.
- Confirm connector polish before mixing LC, SC, UPC and APC interfaces.
FAQ
Should an AI data center use OS2 or OM4 fiber?
The answer depends on reach, transceiver interface, migration plan and operating model. OS2 is commonly considered for longer-reach and broad migration flexibility, while OM4 remains relevant for selected short-reach multimode architectures.
What must be confirmed before ordering an MPO trunk?
Confirm fiber type, total fiber count, MPO-12/16/24 platform, gender, key orientation, polarity, polish, low-loss requirement, breakout length, pulling-eye requirement and test documentation.
Can the same cable be used for RS485 and Ethernet?
No. Ethernet normally uses a 100-ohm balanced channel, while RS485 projects commonly specify 120-ohm communication cable. Select each cable according to the protocol and equipment requirements.
Can Route A and Route B use the same product?
They may use the same technical construction, but their cable IDs, packaging, port maps, drums and test records should remain independently controlled.
Configure Your AI Data Center Passive Cabling Kit
Send the route plan, port schedule, MPO interface definition and cooling-control device list. ZION can organize the requested passive products into a reviewable BOM.
