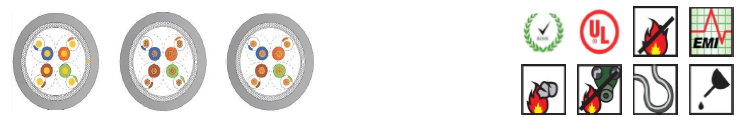

CAT5e
hellosignal
859107-859114
| ◆Application | |||||||||||
| Apply to complex industrial environment and moved installation. Can be used in the system of EtherCAT and EtherNET/IP. Application in electric power transportation metallurgy,water treatment and other industries. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||
| .-40℃ to 80℃ | |||||||||||
| ● Test voltage | |||||||||||
| ◆Cable Construction | 1000V | ||||||||||
| Conductor: Solid or stranded copper wire | ● Peak voltage | ||||||||||
| Insulation: PO | (Data transmission application)125V | ||||||||||
| Shield: AL/Mylar screen and copper wire braid | ● Characteristic impedance | ||||||||||
| Jacket: see attached list | 100±15 Ohm | ||||||||||
| Color: grey(similar to RAL 7035) | ● Min bending radius | ||||||||||
| ◆Product Feature | Fixed installation：8x cable diameter | ||||||||||
| Professional design,reduce the using cost. | Occasional movement：10x cable diameter | ||||||||||
| Double shielded cable,excellent Anti-EMI performance and | Power Chain：12x cable diameter | ||||||||||
| Reliable transmission | ● Other characteristics | ||||||||||
| PUR jacket is resistant to oil,abrasion and hydrolysis | According to ANSI/TIA-568 and IEC11801 | ||||||||||
| Fire resistance meets IEC60332-1 | |||||||||||
| UV resistance | |||||||||||
| LSZH jacket have good performance of low smoke,halogen-free and high security | |||||||||||
| Product List | |||||||||||
| Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx(kg/km) | Application | |||||
| 859107 | 4*2*AWG24/1 | LSZH | 6.8 | 32 | 54 | Fixed installation | |||||
| 859108 | 4*2*AWG24/1 | PUR | 6.8 | 32 | 52 | ||||||
| 859109 | 4*2*AWG24/1 | PVC | 6.8 | 32 | 54 | ||||||
| 859110 | 4*2*AWG26/7 | LSZH | 6.1 | 26 | 56 | Occasional movement | |||||
| 859111 | 4*2*AWG26/7 | PUR | 6.1 | 26 | 54 | ||||||
| 859112 | 4*2*AWG26/7 | PVC | 6.1 | 26 | 56 | ||||||
| 859113 | 4*2*AWG26/19 | PVC | 6.3 | 27 | 54 | Power Chain | |||||
| 859114 | 4*2*AWG26/19 | PUR | 6.3 | 27 | 54 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL CAT5e Cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
