PROFIBUS-DP Cable

Conductor: Solid or Stranded copper wire
Insulation: Foam PE
Filler: Optional
Shield: AL/Mylar screen and TC braid
Color: Purple(similar to RAL 4001)
  • PROFIBUS-DP

  • hellosignal

  • 859127-859135

  • Categories:: Factory Automation Cable
  • Length:: by customers' inquire
  • Packing:: roll, spool
  • MOQ:: 30KM
  • Delivery time:: Normally 25 days
  • Port of Loading:: NINGBO, SHANGHAI
  • Term of payment:: T/T, L/C, D/P at sight

Product Description

PROFIBUS-DP

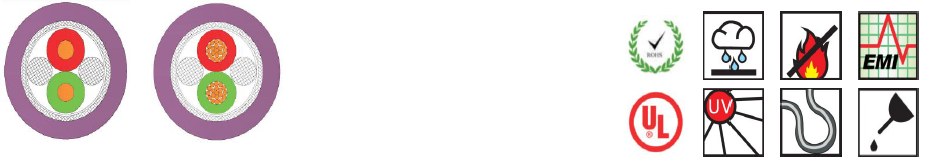

PROFIBUS-DP cable

◆Application
PROFIBUS-DP cable designed for industrial field bus systems
automation and communication,Fixed installs in many places,
specially designed flexible cable used in many applications,
such as,manufacture,process control and buliding automation
(power chains,moving machine parts)etc.
◆Technical data
Temperature range
   .-40℃ to 80℃
Peak voltage
◆Cable Construction     300V
Conductor:  Solid or Stranded copper wire Characteristic impedance
Insulation: Foam PE    150±15 Ohm
Filler:(Optional) Min bending radius
Shield: AL/Mylar screen and TC braid     Fixed installation:8x cable diameter
Jacket: see attached list     Moved installation:15x cable diameter
Color: Purple(similar to RAL 4001) Loop conductor DC resistance at 20℃
◆Product Feature     ≤76 ohm/km
AL/Mylar and tinned copper braid,excellent Anti-EMI performance
Oil resistance,Abrasion resistance,Anti-hydrolysis
Fire resistance meets IEC60332-1
Easy bending
UV resistance

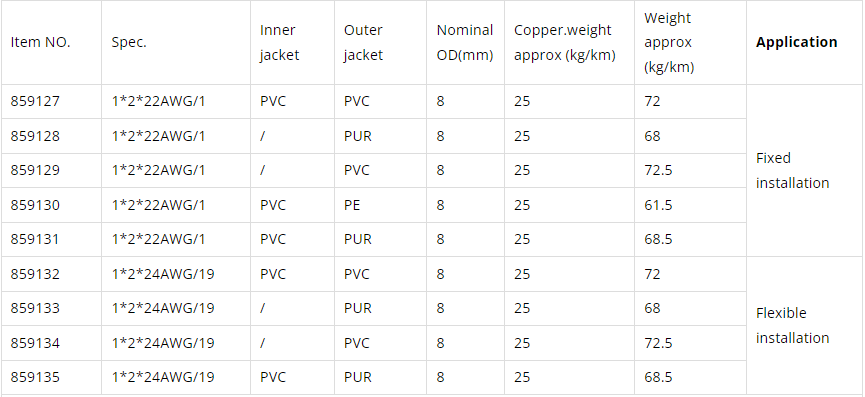

Product List
Item NO. Spec. Inner  jacket Outer jacket Nominal OD(mm) Copper.weight approx (kg/km) Weight approx (kg/km) Application
859127 1*2*22AWG/1 PVC PVC 8 25 72 Fixed installation
859128 1*2*22AWG/1 / PUR 8 25 68
859129 1*2*22AWG/1 / PVC 8 25 72.5
859130 1*2*22AWG/1 PVC PE 8 25 61.5
859131 1*2*22AWG/1 PVC PUR 8 25 68.5
859132 1*2*24AWG/19 PVC PVC 8 25 72 Flexible installation
859133 1*2*24AWG/19 / PUR 8 25 68
859134 1*2*24AWG/19 / PVC 8 25 72.5
859135 1*2*24AWG/19 PVC PUR 8 25 68.5
Order Informations:
  Marking HELLOSIGNAL PROFIBUS-DP Cable XXXFT/M
  Package 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
  Delivery time Normally 20-25 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNALTM OR OEM

Production Process Flow

# 1  Insulation Line
1

# 2 Twisting Line
2

# 3 Braiding Line
IMG_0683

# 4 Jacket Line
100_7876

# 5 Testing
CTS650对称数字通信电缆测试系统-3副本

# 6 Testing
635585795134459266623
