DeviceNet Cable

DeviceNet Cable

■ Application:

Used in DeviceNet Bus system, connect industrial equipment automation process.lt is a lower cost network solution

with opening network standards.

■ Construction:

Conductor: Stranded tinned copper wire

Insulation: Foam PE

Insulation2: PVC

Shield: AL/Mylar screen and TC brain

Drain wire: Tinned copper wire

Jacket: see attached list

■ Features:

Oil and grease resistance

Torsion resistance, Easy bending

Fire resistance meets lEC60332-1High braiding coverage,

excellent Anti-EMl performance UV and Abrasion resistance, Anti-hydrolysis

■ Technical data:

Temperature range: -40℃ to 80°C

Characteristic impedance: 120+15 0hm

Min bending radius: 10x cable diameter

Conductor resistance at 20°C: 24AWGs91.8 ohm/km

Test voltage: 1500v 1min,no breakdown

Insulation resistance at 20°C: 24AWG21000M2.Km

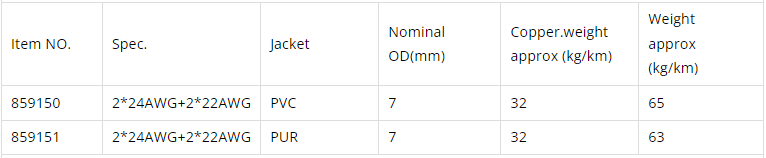

■ Product List:

■ Order Information:

Marking: HELLOSIGNAL DeviceNet Cable XXXFT/M

Package: 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet

Delivery time: Normally 20-25 days after receiving the deposit.

For more information: please contact us.

Brand: HELLOSIGNALTM OR OEM
