INTERBUS
hellosignal
859152-859155
Product Description
| ◆Application | |||||||||||
| Cable widely used in many industrial field bus system, such as automobile,tobacco,warehouse,papermaking,food&beverage. | ◆Technical data | ||||||||||
| ● Temperature range | |||||||||||

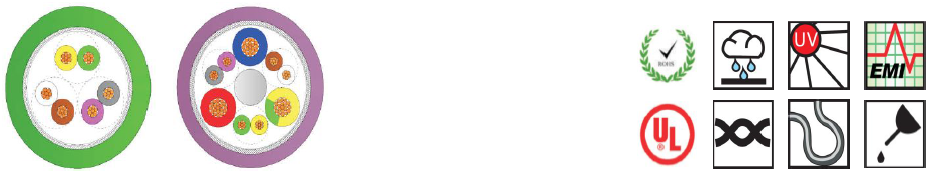

| ◆Cable Construction | .-40℃ to 80℃ | ||||||||||
| Conductor: Stranded bare copper wire | ● Characteristic impedance | ||||||||||
| Insulation: PE | 110±15 Ohm | ||||||||||
| Shield: BC braid | ● Min bending radius | ||||||||||
| Jacket: see attached list | 10x cable diameter | ||||||||||
| Color: Green or purple | ● Test voltage | ||||||||||
| ◆Product Feature | 1500V 1min,no breakdown | ||||||||||
| Oil and grease resistance | ● Loop conductor DC resistance at 20℃ | ||||||||||
| Torsion resistance,Easy bending | 3P≤159.8 ohm/km | ||||||||||
| High braiding coverage,excellent Anti-EMI performance | 3C≤44 ohm/km | ||||||||||
| UV and Abrasion resistance,Anti-hydrolysis | | ||||||||||
| | |||||||||||

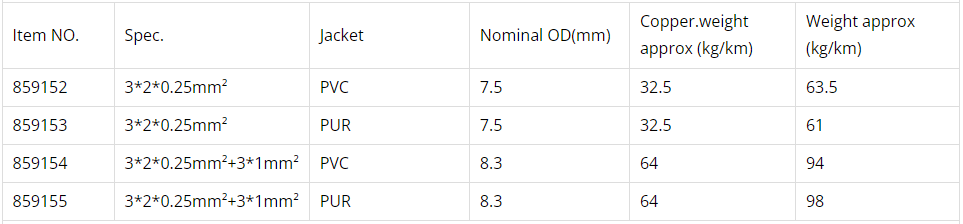

| Product List | |||||||||||
| Item NO. | Spec. | Jacket | Nominal OD(mm) | Copper.weight approx (kg/km) | Weight approx (kg/km) | ||||||
| 859152 | 3*2*0.25mm⊃2; | PVC | 7.5 | 32.5 | 63.5 | ||||||
| 859153 | 3*2*0.25mm⊃2; | PUR | 7.5 | 32.5 | 61 | ||||||
| 859154 | 3*2*0.25mm⊃2;+3*1mm⊃2; | PVC | 8.3 | 64 | 94 | ||||||
| 859155 | 3*2*0.25mm⊃2;+3*1mm⊃2; | PUR | 8.3 | 64 | 98 | ||||||
| Order Informations: | |||||||||||
| Marking | HELLOSIGNAL INTERBUS Cable XXXFT/M | ||||||||||
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | ||||||||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||||||||
| More informations | please contact with us. | ||||||||||
| Brand | HELLOSIGNALTM OR OEM | ||||||||||
