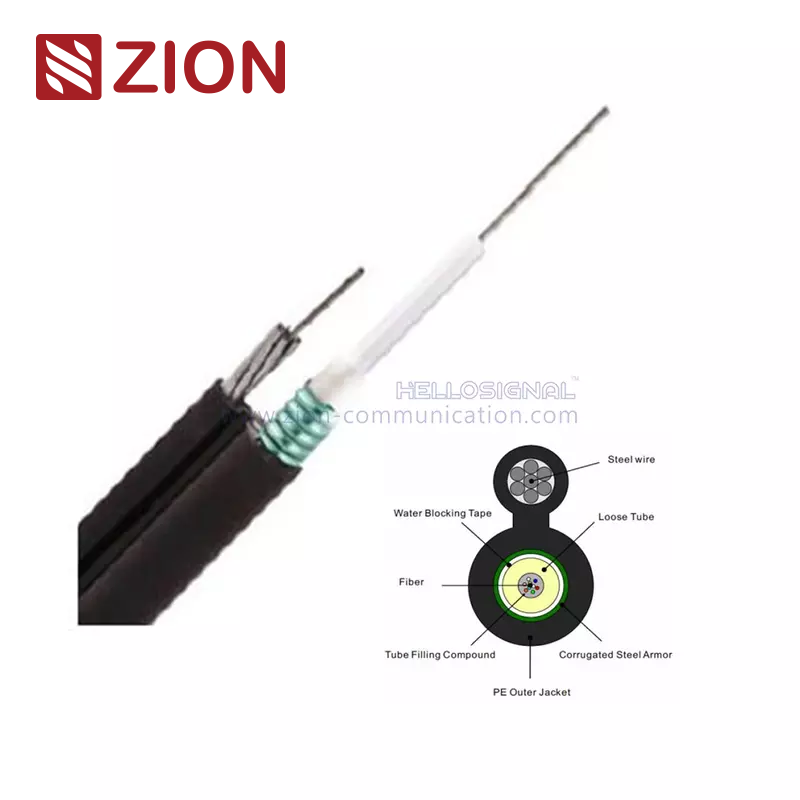

GYXTC8S PSP Armored Uni-tube Aerial Installation Figure-8 Self-supporting Optical Cable

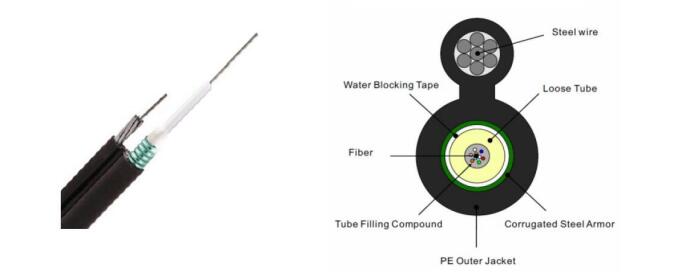

GYXTC8S

PSP Armored Uni-tube Aerial Installation Optical Fiber Cable
Figure-8 Self-supporting

Application:

Good mechanical and environmental Performances.

Small size and light weight, easy for installation.

Self-supporting aerial installation.

Characteristics:

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization
mode
dispersion

lndividual fibre

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value
(M=20,Q=0.01%)

≤0.1 ps/√km

≤0.1 ps/√km

-

-

Technical Data:

Item

Contents

Value

Fiber Count

2

4

6

12

18

24

Loose Tube

Outer diameter (mm)

3.0

3.0

3.0

3.0

3.2

3.2

Steel Wire

Material

galvanized steel wire

Diameter (mm)

7*1.2

Sheath

Thickness (mm)

Nominal:0.8

Cable diameter(mm)Approx.

6.3*15.0mm

Cable weight(kg/km)Approx.

125KG

Operating temperature range(℃)

-40~+70

Tensile Strength Term(N)

7000

Crush resistanoe(N/100mm)

1500

The colour arrangement of fibre and tube is specified in the colour identification table.

Other structure and fibre count are also available according to customer requirements.
