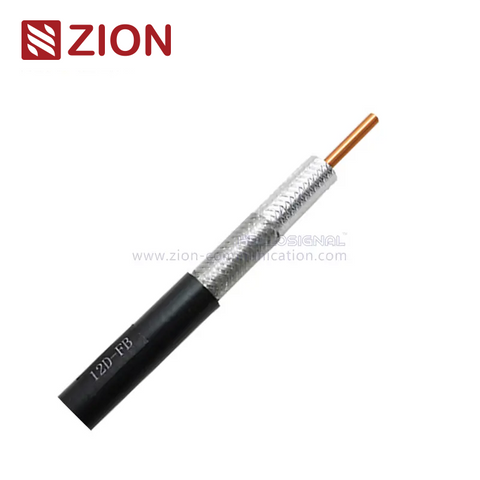

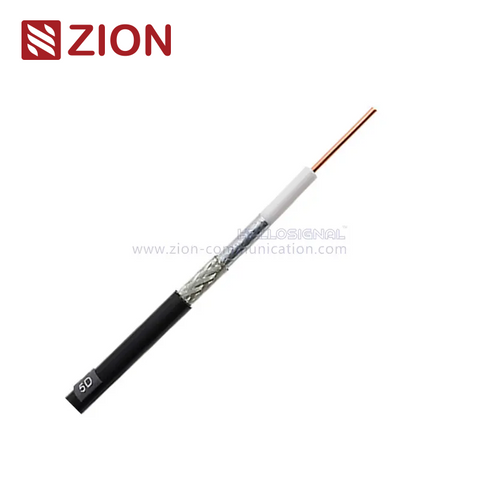

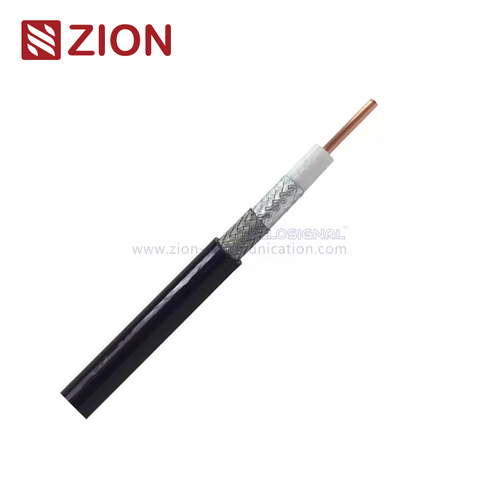

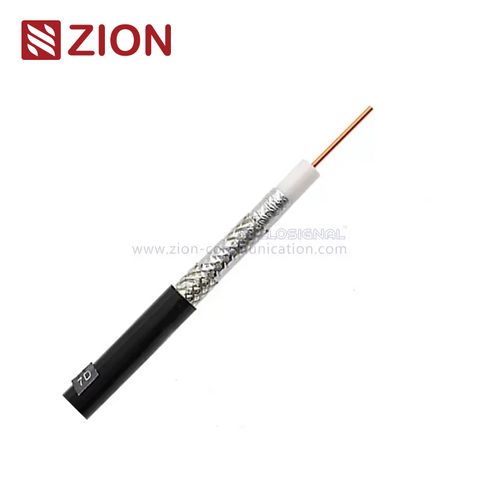

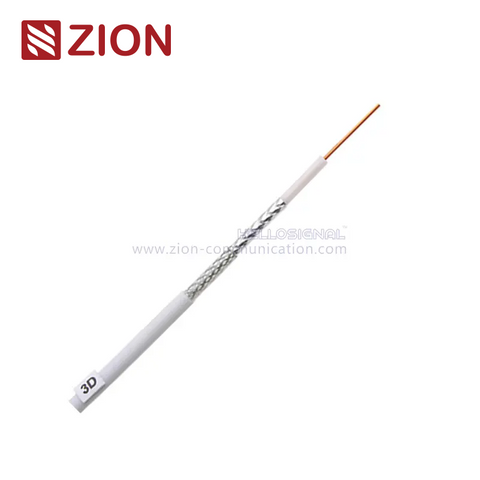

Including 3D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB, and 12D-FB, all have a characteristic impedance of 50 ohms. The high-velocity gas injected foamed polyethylene dielectric provides the lowest dielectric loss of any practical dielectric. It has an excellent performance in wireless communication, such as an antenna feeder for ground mobile communication, wireless communication, ground paging system, base station, equipment room, and connection line of the base station.
● ideal choice
● excellent performance
● high quality
● lowest loss
● effective shielding
● Wireless communication
● Antenna feeder of mobile communication
● Terrestrial paging system
● Base station
● Equipment Room
Construction Parameters
Structure | Material | 3D-FB | 5D-FB | 7D-FB | 8D-FB | 10D-FB | 12D-FB |
Inner Conductor | Copper | 1.07mm | 1.80mm | 2.60mm | 2.80mm | 3.50mm | 4.40mm |
Dielectric | Foamed PE | 3.00mm | 4.95mm | 7.30mm | 7.80mm | 10.00mm | 12.40mm |
Outer Conductor | Tinned Copper Braid | 3.55mm | 5.70mm | 8.00mm | 8.60mm | 10.80mm | 13.20mm |
Jacket | PE Black | 5.4mm | 7.5mm | 10.30mm | 11.10mm | 13.00mm | 15.60mm |
