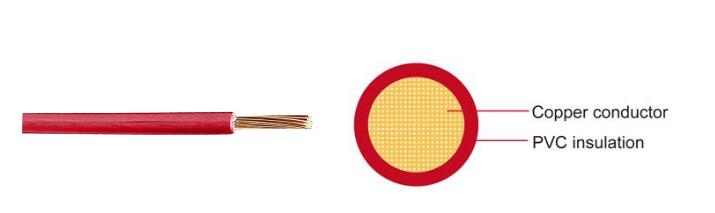

FLYW Automotive Cable

FLYW Automotive Cable

Product Description:

Conductor

Cu-ETP1 bare according to DIN EN13602

Insulation

PVC

Standard Compliance

ISO 6722 Class C

Technical Parameters

Operating temperature:–40 °C to 105 °C

Application:

Automotive PVC insulated single-core wire is used for automobiles, motorcycles and other motor vehicles. It has good heat resistant.

Zion's Hot Types of FLYW Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter
Max.

Electrical resistance at 20°C  max.

Thickness
wall Nom.

Overall diameter min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.50

16 /0.20

1.00

37.10

0.48

2.00

2.30

8.00

1x0.75

24/0.20

1.20

24.70

0.48

2.20

2.50

11.00

1x1.00

32/0.20

1.35

18.50

0.48

2.40

2.70

15.00

1x1.50

30/0.25

1.70

12.70

0.48

2.70

3.00

20.00

1x2.50

50/0.25

2.20

7.60

0.56

3.30

3.60

32.00

1x4.00

56/0.31

2.75

4.71

0.64

4.00

4.40

48.00

1x6.00

84/0.31

3.30

3.14

0.64

4.60

5.00

68.00

1x10.00

80/0.40

4.50

1.82

0.80

6.00

6.50

117.00

1x16.00

126/0.40

5.20

1.16

0.80

8.00

8.30

193.00

1x25.00

196/0.40

6.50

0.70

1.04

10.10

10.40

274.00

1x35.00

276/0.40

7.70

0.50

1.04

11.30

11.60

397.00

1x50.00

396/0.40

9.20

0.30

1.20

13.20

13.50

547.00

1x70.00

556/0.40

11.00

0.20

1.20

15.20

15.50

769.00

1x95.00

741/0.40

14.80

0.20

1.28

17.00

18.00

990.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
