Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

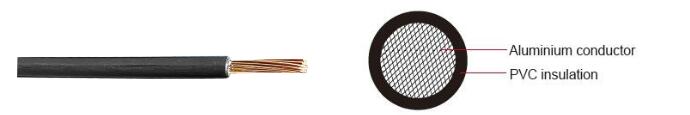

FLALRYW Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Aluminium 99.7%≥1.25 mm2 | |||||||
Insulation | PVC | |||||||
Standard Compliance | ISO 6722 Class C | |||||||
Special properties | Hot pressure resistance | |||||||
Technical Parameters | Operating temperature:–40°C to +125°C | |||||||
Application: | ||||||||
This PVC insulated automotive cable is suitable for application inside the engine compartment. | ||||||||
 | ||||||||
Zion's Hot Types of FLALRYW Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.75 | 11/0.3 | 1.30 | 43.60 | 0.24 | 1.70 | 1.90 | 4.00 | |
1x1.00 | 16/0.29 | 1.50 | 32.70 | 0.24 | 1.90 | 2.10 | 5.00 | |
1x1.25 | 16/0.32 | 1.70 | 24.80 | 0.24 | 2.10 | 2.30 | 6.00 | |
1x1.50 | 16/0.35 | 1.80 | 21.20 | 0.24 | 2.20 | 2.40 | 7.00 | |
1x2.0 | 15/0.42 | 2.00 | 15.70 | 0.28 | 2.50 | 2.80 | 9.00 | |
1x2.5 | 19/0.43 | 2.20 | 12.70 | 0.28 | 2.70 | 3.00 | 12.00 | |
1x3.0 | 23/0.42 | 2.40 | 10.20 | 0.32 | 3.10 | 3.40 | 14.00 | |
1x4.0 | 30/0.42 | 2.80 | 7.85 | 0.32 | 3.40 | 3.70 | 17.00 | |
1x5.0 | 36/0.42 | 3.10 | 6.57 | 0.32 | 3.90 | 4.20 | 19.00 | |
1x6.0 | 45/0.42 | 3.40 | 5.23 | 0.32 | 4.00 | 4.30 | 23.00 | |
1x8.0 | 59/0.42 | 4.30 | 3.97 | 0.32 | 4.60 | 5.00 | 29.00 | |
1x10.0 | 50/0.52 | 4.50 | 3.03 | 0.48 | 5.30 | 6.00 | 43.00 | |
1x12.0 | 60/0.52 | 5.40 | 2.53 | 0.48 | 5.80 | 6.50 | 50.00 | |
1x16.0 | 78/0.52 | 5.80 | 1.93 | 0.52 | 6.40 | 7.20 | 63.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
FLALRYW Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Aluminium 99.7%≥1.25 mm2 | |||||||
Insulation | PVC | |||||||
Standard Compliance | ISO 6722 Class C | |||||||
Special properties | Hot pressure resistance | |||||||
Technical Parameters | Operating temperature:–40°C to +125°C | |||||||
Application: | ||||||||
This PVC insulated automotive cable is suitable for application inside the engine compartment. | ||||||||
| ||||||||
Zion's Hot Types of FLALRYW Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.75 | 11/0.3 | 1.30 | 43.60 | 0.24 | 1.70 | 1.90 | 4.00 | |
1x1.00 | 16/0.29 | 1.50 | 32.70 | 0.24 | 1.90 | 2.10 | 5.00 | |
1x1.25 | 16/0.32 | 1.70 | 24.80 | 0.24 | 2.10 | 2.30 | 6.00 | |
1x1.50 | 16/0.35 | 1.80 | 21.20 | 0.24 | 2.20 | 2.40 | 7.00 | |
1x2.0 | 15/0.42 | 2.00 | 15.70 | 0.28 | 2.50 | 2.80 | 9.00 | |
1x2.5 | 19/0.43 | 2.20 | 12.70 | 0.28 | 2.70 | 3.00 | 12.00 | |
1x3.0 | 23/0.42 | 2.40 | 10.20 | 0.32 | 3.10 | 3.40 | 14.00 | |
1x4.0 | 30/0.42 | 2.80 | 7.85 | 0.32 | 3.40 | 3.70 | 17.00 | |
1x5.0 | 36/0.42 | 3.10 | 6.57 | 0.32 | 3.90 | 4.20 | 19.00 | |
1x6.0 | 45/0.42 | 3.40 | 5.23 | 0.32 | 4.00 | 4.30 | 23.00 | |
1x8.0 | 59/0.42 | 4.30 | 3.97 | 0.32 | 4.60 | 5.00 | 29.00 | |
1x10.0 | 50/0.52 | 4.50 | 3.03 | 0.48 | 5.30 | 6.00 | 43.00 | |
1x12.0 | 60/0.52 | 5.40 | 2.53 | 0.48 | 5.80 | 6.50 | 50.00 | |
1x16.0 | 78/0.52 | 5.80 | 1.93 | 0.52 | 6.40 | 7.20 | 63.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
