FLALRY Automotive Cable

FLALRY Automotive Cable

Product Description:

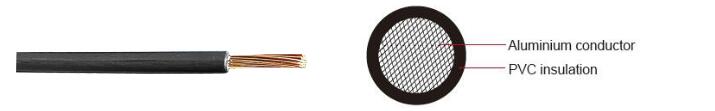

Conductor

Aluminium 99.7%≥1.25 mm²
Aluminium alloy < 1.25 mm²

Insulation

PVC

Standard Compliance

 ISO 6722 Class B

Special properties

Cables with cross-sections > 10 mm2 can be used as battery cables Considerable weight savings compared to copper

Technical Parameters

Operating temperature:–40°C to +105°C

Application:

This PVC insulated automotive cable is designed for telecommunication overhead contract line and electronics.

Zion's Hot Types of FLALRY Automotive cable

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x075

11/0.3

1.30

43.60

0.24

1.70

1.90

4.00

1x1.00

16/0.29

1.50

32.70

0.24

1.90

2.10

5.00

1x1.25

16/0.32

1.70

24.80

0.24

2.10

2.30

6.00

1x1.50

16/0.35

1.80

21.20

0.24

2.20

2.40

7.00

1x2.0

15/0.42

2.00

15.70

0.28

2.50

2.80

9.00

1x2.5

19/0.43

2.20

12.70

0.28

2.70

3.00

12.00

1x3.0

23/0.42

2.40

10.20

0.32

3.10

3.40

14.00

1x4.0

30/0.42

2.80

7.85

0.32

3.40

3.70

17.00

1x5.0

36/0.42

3.10

6.57

0.32

3.90

4.20

19.00

1x6.0

45/0.42

3.40

5.23

0.32

4.00

4.30

23.00

1x8.0

59/0.42

4.30

3.97

0.32

4.60

5.00

29.00

1x10.0

50/0.52

4.50

3.03

0.48

5.30

6.00

43.00

1x12.0

60/0.52

5.40

2.53

0.48

5.80

6.50

50.00

1x16.0

78/0.52

5.80

1.93

0.52

6.40

7.20

63.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
