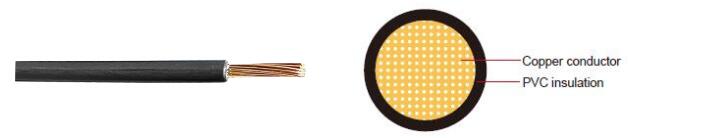

FLRYWd Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare or tinned according to DIN EN 13602 | |||||||
Insulation | PVC | |||||||
Standard Compliance | ISO 6722 Class B | |||||||
Technical Parameters | Operating temperature:–40°C to +105°C | |||||||
Application: | ||||||||
This PVC insulated single-core cable is used for vehicle constructions. | ||||||||
 | ||||||||
Zion's Hot Types of FLRYWd Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.35 | 7/0.26 | 0.80 | 52.00 | 0.20 | 1.30 | 1.40 | 4.48 | |
1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.22 | 1.40 | 1.70 | 6.60 | |
1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 11.00 | |
1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 16.00 | |
1x2.00 | 30/0.31 | 1.90 | 9.42 | 0.28 | 2.40 | 2.80 | 22.00 | |
1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.28 | 2.70 | 3.00 | 6.00 | |
1x3.00 | 45/0.31 | 2.40 | 6.15 | 0.32 | 2.90 | 3.40 | 32.50 | |
1x4.00 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.40 | 3.80 | 42.00 | |
1x6.00 | 84/0.31 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 61.00 | |
1x10.00 | 80/0.41 | 4.50 | 1.82 | 0.48 | 5.40 | 6.00 | 108.00 | |
1x16.00 | 126/0.41 | 6.30 | 1.16 | 0.52 | 7.30 | 7.90 | 170.00 | |
1x25.00 | 196/0.41 | 7.80 | 0.74 | 0.52 | 8.60 | 9.40 | 265.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
FLRYWd Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare or tinned according to DIN EN 13602 | |||||||
Insulation | PVC | |||||||
Standard Compliance | ISO 6722 Class B | |||||||
Technical Parameters | Operating temperature:–40°C to +105°C | |||||||
Application: | ||||||||
This PVC insulated single-core cable is used for vehicle constructions. | ||||||||
| ||||||||
Zion's Hot Types of FLRYWd Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.35 | 7/0.26 | 0.80 | 52.00 | 0.20 | 1.30 | 1.40 | 4.48 | |
1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.22 | 1.40 | 1.70 | 6.60 | |
1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 11.00 | |
1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 16.00 | |
1x2.00 | 30/0.31 | 1.90 | 9.42 | 0.28 | 2.40 | 2.80 | 22.00 | |
1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.28 | 2.70 | 3.00 | 6.00 | |
1x3.00 | 45/0.31 | 2.40 | 6.15 | 0.32 | 2.90 | 3.40 | 32.50 | |
1x4.00 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.40 | 3.80 | 42.00 | |
1x6.00 | 84/0.31 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 61.00 | |
1x10.00 | 80/0.41 | 4.50 | 1.82 | 0.48 | 5.40 | 6.00 | 108.00 | |
1x16.00 | 126/0.41 | 6.30 | 1.16 | 0.52 | 7.30 | 7.90 | 170.00 | |
1x25.00 | 196/0.41 | 7.80 | 0.74 | 0.52 | 8.60 | 9.40 | 265.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
