AESSXF Automotive Cable

AESSXF Automotive Cable

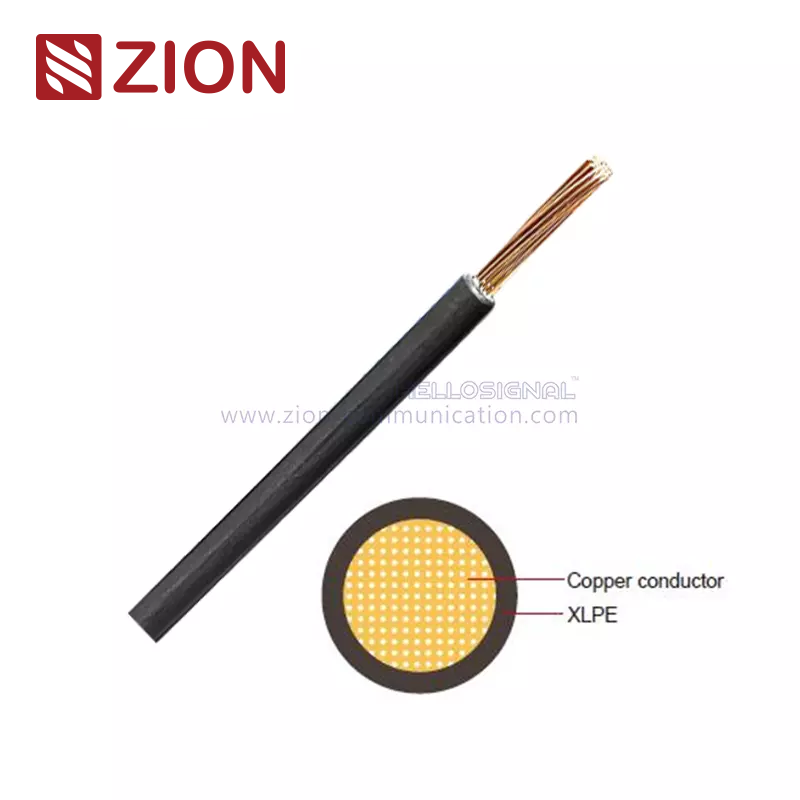

Product Description:

Conductor

Annealed standed copper

Insulation

Cross-linked Polyethylene (XLPE)

Standard Compliance

JASO D611 ;ES SPEC

Technical Parameters

Operating temperature:–45 °C to +120 °C
Rated temperature: 120°C
Rated voltage up to 60V

Application:

This XLPE insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles).

Zion's Hot Types of  AESSXF Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.22

7/0.2

0.60

84.40

0.30

1.20

1.30

3.30

1x0.30

19/0.16

0.80

48.80

0.30

1.40

1.50

5.00

1x0.50

19/0.19

1.00

34.60

0.30

1.60

1.70

6.90

1x0.75

19/0.23

1.20

23.60

0.30

1.80

1.90

10.00

1x1.25

37/0.21

1.50

14.60

0.30

2.10

2.20

14.30

1x2.00

27/0.26

1.80

9.50

0.40

2.60

2.70

22.20

1x2.50

50/0.26

2.10

7.60

0.40

2.90

3.00

28.50

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
