Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

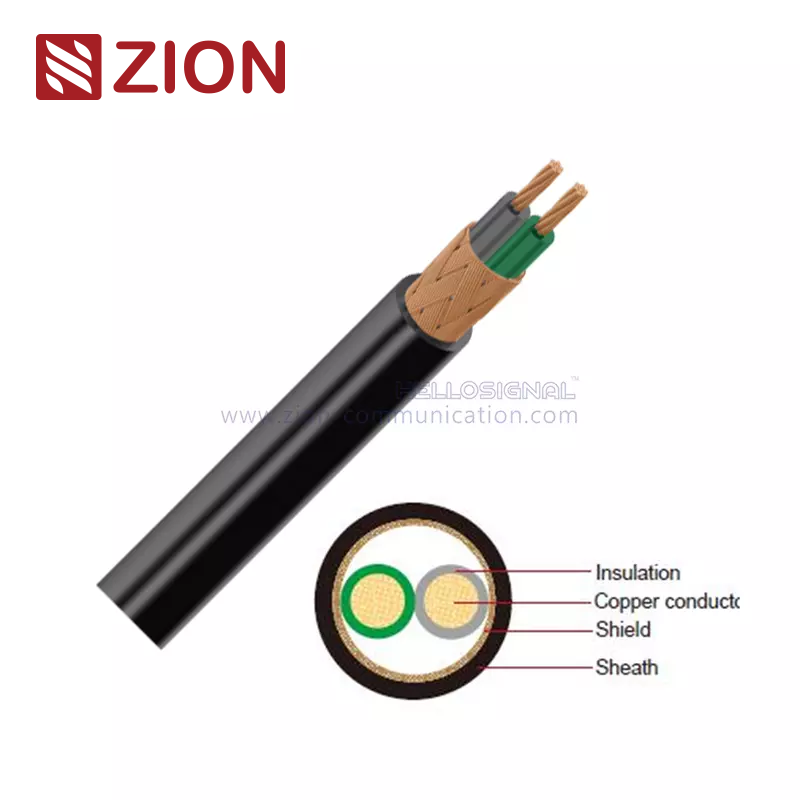

AEX-BS Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Annealed stranded copper | |||||||
Insulation | Cross-Linked Polyethylene | |||||||
Shield | Tin coated annealed copper | |||||||
Sheath | Polyvinyl Chloride | |||||||
Standard Compliance | JASO D608; HMC ES SPEC | |||||||
Technical Parameters | Operating temperature:–40°C to +120 °C | |||||||
Application: | ||||||||
This XLPE insulated cable is used in low voltage signal circuits in automobiles. superior heat resistance with irradiated PE. Suitable for the consideration or the shielding characteristic. | ||||||||
 | ||||||||
Zion's Hot Types of AEX-BS Automotive cable | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
0.5f | 20/0.18 | 1.00 | 0.04 | 0.60 | 4.00 | 4.20 | 25.00 | |
0.85f | 34/0.18 | 1.20 | 0.02 | 0.60 | 7.00 | 7.20 | 62.00 | |
1.25f | 50/0.18 | 1.50 | 0.02 | 0.60 | 4.50 | 4.70 | 40.00 | |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||

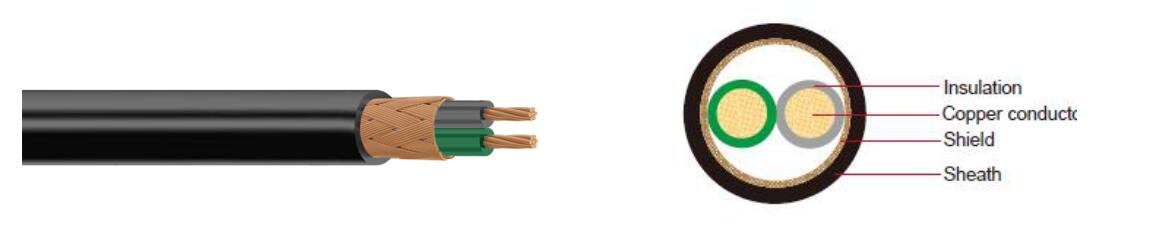

AEX-BS Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Annealed stranded copper | |||||||
Insulation | Cross-Linked Polyethylene | |||||||
Shield | Tin coated annealed copper | |||||||
Sheath | Polyvinyl Chloride | |||||||
Standard Compliance | JASO D608; HMC ES SPEC | |||||||
Technical Parameters | Operating temperature:–40°C to +120 °C | |||||||
Application: | ||||||||
This XLPE insulated cable is used in low voltage signal circuits in automobiles. superior heat resistance with irradiated PE. Suitable for the consideration or the shielding characteristic. | ||||||||
| ||||||||
Zion's Hot Types of AEX-BS Automotive cable | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
0.5f | 20/0.18 | 1.00 | 0.04 | 0.60 | 4.00 | 4.20 | 25.00 | |
0.85f | 34/0.18 | 1.20 | 0.02 | 0.60 | 7.00 | 7.20 | 62.00 | |
1.25f | 50/0.18 | 1.50 | 0.02 | 0.60 | 4.50 | 4.70 | 40.00 | |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
