Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

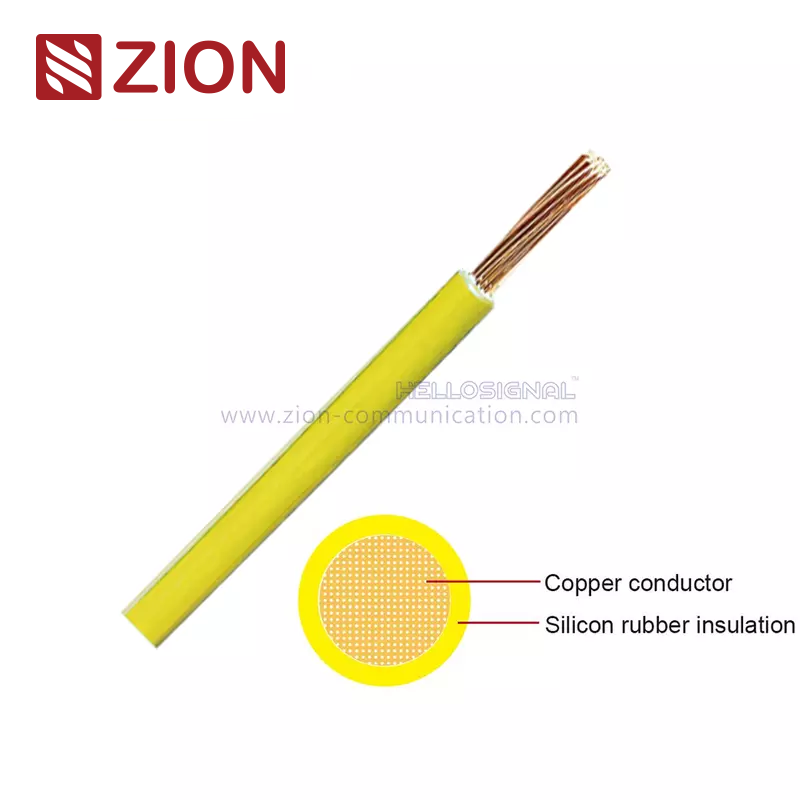

FL2G Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare or tinned according to DIN EN 13602 | |||||||
Insulation | Silicon rubber Standard:ISO 6722 Class F | |||||||
Technical Parameters | Operating temperature: –40°C to +200°C | |||||||
Application: | ||||||||
This silicon rubber insulated single core cable is used in battery lead-wire for automobiles. | ||||||||
 | ||||||||
Zion's Hot Types of FL2G Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
0.50 | 16/0.21 | 1.10 | 37.10 | 0.48 | 2.00 | 2.30 | 8.00 | |
0.75 | 24/0.21 | 1.30 | 24.70 | 0.48 | 2.20 | 2.50 | 10.60 | |
1.00 | 32/0.21 | 1.50 | 18.50 | 0.48 | 2.40 | 2.70 | 13.50 | |
1.50 | 30/0.26 | 1.80 | 12.70 | 0.48 | 2.70 | 3.00 | 17.90 | |
2.50 | 50/0.26 | 2.20 | 7.60 | 0.56 | 3.30 | 3.60 | 29.50 | |
4.00 | 56/0.31 | 2.80 | 4.71 | 0.64 | 4.00 | 4.40 | 46.70 | |
6.00 | 84/0.31 | 3.40 | 3.14 | 0.64 | 4.60 | 5.00 | 66.00 | |
10.00 | 80/0.41 | 4.50 | 1.82 | 0.80 | 5.90 | 6.50 | 113.00 | |
16.00 | 126/0.41 | 6.30 | 1.16 | 0.80 | 7.70 | 8.30 | 173.00 | |
25.00 | 196/0.41 | 7.80 | 0.74 | 1.04 | 9.00 | 10.00 | 266.00 | |
35.00 | 276/0.41 | 9.00 | 0.53 | 1.04 | 10.40 | 11.00 | 361.00 | |
50.00 | 396/0.41 | 10.50 | 0.37 | 1.25 | 12.40 | 13.50 | 526.00 | |
70.00 | 360/0.51 | 12.50 | 0.26 | 1.25 | 14.20 | 15.50 | 750.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||

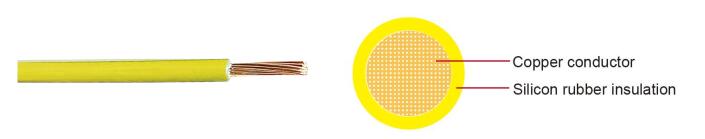

FL2G Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare or tinned according to DIN EN 13602 | |||||||
Insulation | Silicon rubber Standard:ISO 6722 Class F | |||||||
Technical Parameters | Operating temperature: –40°C to +200°C | |||||||
Application: | ||||||||
This silicon rubber insulated single core cable is used in battery lead-wire for automobiles. | ||||||||
| ||||||||
Zion's Hot Types of FL2G Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
0.50 | 16/0.21 | 1.10 | 37.10 | 0.48 | 2.00 | 2.30 | 8.00 | |
0.75 | 24/0.21 | 1.30 | 24.70 | 0.48 | 2.20 | 2.50 | 10.60 | |
1.00 | 32/0.21 | 1.50 | 18.50 | 0.48 | 2.40 | 2.70 | 13.50 | |
1.50 | 30/0.26 | 1.80 | 12.70 | 0.48 | 2.70 | 3.00 | 17.90 | |
2.50 | 50/0.26 | 2.20 | 7.60 | 0.56 | 3.30 | 3.60 | 29.50 | |
4.00 | 56/0.31 | 2.80 | 4.71 | 0.64 | 4.00 | 4.40 | 46.70 | |
6.00 | 84/0.31 | 3.40 | 3.14 | 0.64 | 4.60 | 5.00 | 66.00 | |
10.00 | 80/0.41 | 4.50 | 1.82 | 0.80 | 5.90 | 6.50 | 113.00 | |
16.00 | 126/0.41 | 6.30 | 1.16 | 0.80 | 7.70 | 8.30 | 173.00 | |
25.00 | 196/0.41 | 7.80 | 0.74 | 1.04 | 9.00 | 10.00 | 266.00 | |
35.00 | 276/0.41 | 9.00 | 0.53 | 1.04 | 10.40 | 11.00 | 361.00 | |
50.00 | 396/0.41 | 10.50 | 0.37 | 1.25 | 12.40 | 13.50 | 526.00 | |
70.00 | 360/0.51 | 12.50 | 0.26 | 1.25 | 14.20 | 15.50 | 750.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
