Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

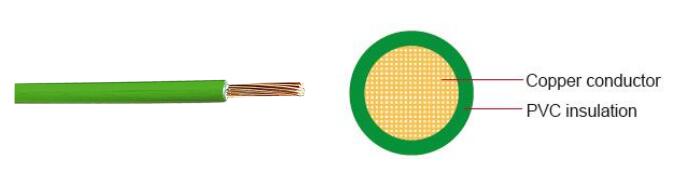

FLYK Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||
Insulation | PVC insulation(Cold resistant) | |||||||
Standard Compliance | ISO 6722 Class B | |||||||
Special properties | Cold bending test according to ISO 6722 at –50 °C. Short-term and long-term ageing according to ISO 6722, Class B. | |||||||
Technical Parameters | Operating temperature:–50°C to +105°C | |||||||
Application: | ||||||||
This PVC insulated automotive cable is used for cars, trucks and other vehicles. | ||||||||
 | ||||||||
Zion's Hot Types of FLYK Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.50 | 28 /0.16 | 1.10 | 37.70 | 0.60 | 2.00 | 2.30 | 9.00 | |
1x0.75 | 42/0.16 | 1.30 | 25.10 | 0.60 | 2.20 | 2.50 | 12.00 | |
1x1.00 | 57/0.16 | 1.50 | 18.80 | 0.60 | 2.40 | 2.70 | 15.00 | |
1x1.50 | 84/0.16 | 1.80 | 12.70 | 0.60 | 2.70 | 3.00 | 20.00 | |
1x2.50 | 140/0.16 | 2.30 | 7.54 | 0.70 | 3.50 | 3.90 | 32.00 | |
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x4.00 | 196/0.16 | 3.30 | 4.71 | 0.80 | 4.50 | 4.90 | 53.00 | |
1x4.5 | 84/0.16 | 1.80 | 12.70 | 0.60 | 2.70 | 3.00 | 23.00 | |
1x6.00 | 294/0.16 | 4.20 | 3.14 | 0.80 | 5.30 | 6.00 | 76.00 | |
1x10.00 | 455/0.16 | 5.20 | 1.85 | 1.00 | 6.70 | 7.30 | 124.00 | |
1x16.00 | 490/0.21 | 6.70 | 1.16 | 1.00 | 8.20 | 8.80 | 198.00 | |
1x25.00 | 798/0.21 | 8.00 | 0.74 | 1.20 | 9.90 | 10.50 | 298.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
