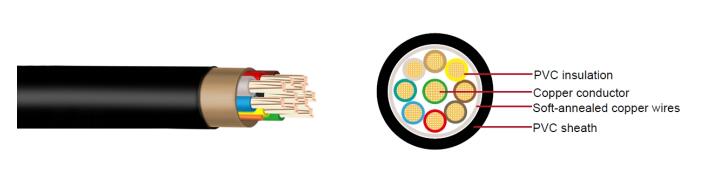

FLRYCY Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 according to DIN EN 13602 | |||||||||
Insulation | PVC | |||||||||
Shielding | Soft-annealed copper wires CU-ETP1 or with tin coated soft-annealed copper wires specified in DIN 40500 and DIN EN 13602 Optical coverage of approximately 85% is reflected in very efficient shield attenuation. | |||||||||
Sheath | PVC | |||||||||
Standard Compliance | ISO 6722 Class B | |||||||||
Technical Parameters | Operating temperature:–40 °C to +105 °C | |||||||||
Application: | ||||||||||
Automotive PVC insulated,PVC sheathed multi-cores cable is used for car communication cable. | ||||||||||
 | ||||||||||
Zion's Hot Types of FLRYCY Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires. | Diameter | Electrical resistance at 20℃ Bare/tinned Max. | Thickness | Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
9 x0.08 | 10/0.11 | 0.45 | 35.30/36.50 | 0.20 | 0.80 | 0.60 | 4.60 | 4.90 | 38.00 | |
10 x0.25 | 14/0.16 | 0.70 | 84.80/86.50 | 0.20 | 1.10 | 0.60 | 5.80 | 6.20 | 68.00 | |
5 x0.35 | 19/0.16 | 0.80 | 52.00/54.50 | 0.25 | 1.30 | 0.50 | 4.70 | 5.10 | 47.00 | |
8 x0.35 | 19/0.16 | 0.80 | 52.00/54.50 | 0.25 | 1.25 | 0.65 | 5.90 | 6.30 | 75.00 | |
10 x0.35 | 19/0.16 | 0.80 | 52.00/54.50 | 0.25 | 1.25 | 0.65 | 6.50 | 6.90 | 83.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
