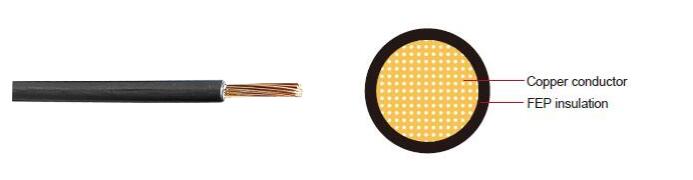

FLU6Y Automotive Cable

FLU6Y Automotive Cable

Product Description:

Conductor

Plain,tinned Silver or Nickel plated copper

Insulation

FEP Standard:ISO 6722 Class F

Technical Parameters

Operating temperature:–40°C to +200°C

Application:

This FEP insulated automotive cable is used for cable harnesses. Very good resistance to fuels and abrasion.

Zion's Hot Types of FLU6Y Automotive cable

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.13

7/0.16

0.5

140

0.16

0.85

0.95

2.3

1x0.14

7/0.16

0.5

140

0.16

0.85

0.95

2.3

1x0.22

7/0.21

0.7

86.5

0.16

0.95

1.05

2.9

1x0.35

7/0.26

0.7

55.5

0.16

1.10

1.20

4.3

1x0.50

19/0.19

1

38.2

0.16

1.30

1.40

6.4

1x0.75

19/0.23

1.2

25.4

0.16

1.50

1.60

8.8

1x1.00

19/0.26

1.4

19.1

0.16

1.65

1.75

10.8

1x1.50

19/0.32

1.7

13

0.16

1.90

2.10

15.8

1x2.50

19/0.41

2.2

7.82

0.2

2.45

2.75

25.8

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
