FLRYDY Automotive Cable | ||||||||||

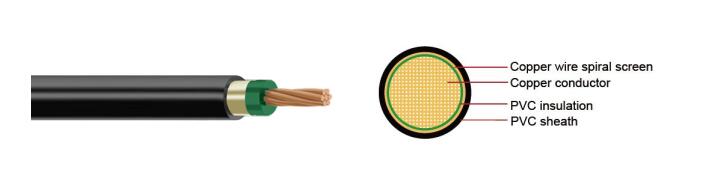

Product Description: | ||||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
Insulation | PVC | |||||||||
Screen | Copper wire spiral shield | |||||||||
Sheath | PVC | |||||||||
Standard Compliance | ISO 6722 Class B | |||||||||
Special properties | Flame retardant | |||||||||
Technical Parameters | Operating temperature:–40 °C to +105°C | |||||||||
Application: | ||||||||||
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits. | ||||||||||
 | ||||||||||
Zion's Hot Types of FLRYDY Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. | Nominal thickness | Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
1x075 | 24/0.21 | 1.20 | 24.70 | 0.30 | 1.75 | 0.30 | 2.50 | 2.70 | 20.00 | |
1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.30 | 1.95 | 0.30 | 2.70 | 2.90 | 23.00 | |
1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.30 | 2.25 | 0.30 | 3.00 | 3.20 | 29.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
