Product Description

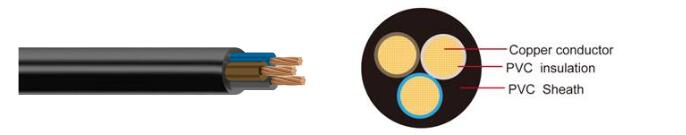

FLRYY Automotive Cable | ||||||
Product Description: | ||||||
Conductor | Cu-ETP1 bare or tinned according to DIN EN13602 | |||||
Insulation | PVC | |||||
Sheath | PVC | |||||
Standard Compliance | ISO 6722 Class B | |||||
Technical Parameters | Operating temperature: –40 °C to +105 °C | |||||
Application: | ||||||
This PVC insulated, PVC sheathed cable is used for low voltage electrical installations in vehicles. | ||||||
Zion's Hot Types of FLRYY Automotive cable | ||||||

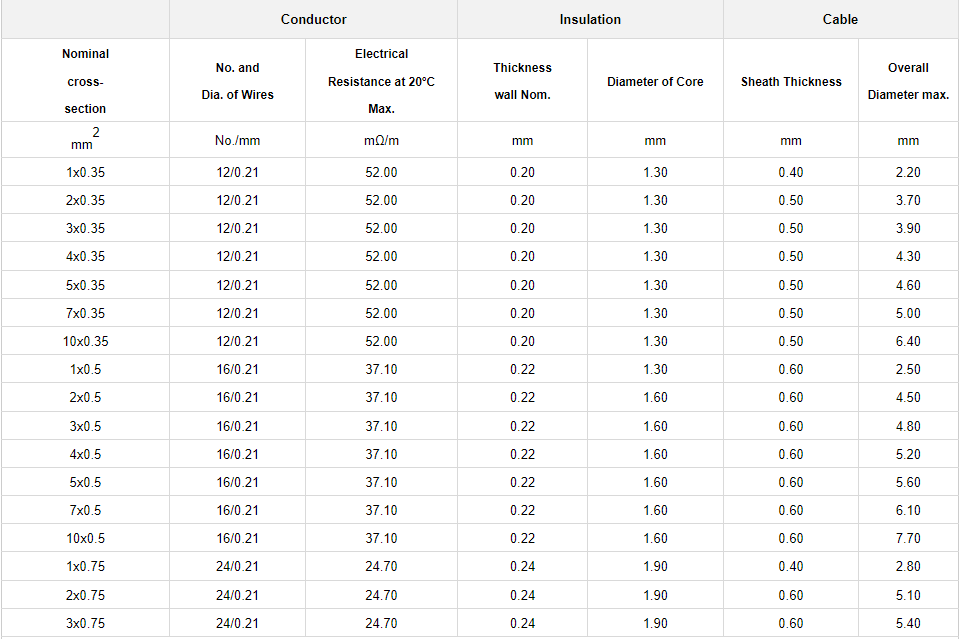

Conductor | Insulation | Cable | ||||
Nominal | No. and | Electrical | Thickness | Diameter of Core | Sheath Thickness | Overall Diameter max. |
mm2 | No./mm | mΩ/m | mm | mm | mm | mm |
1x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.40 | 2.20 |
2x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.50 | 3.70 |
3x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.50 | 3.90 |
4x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.50 | 4.30 |
5x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.50 | 4.60 |
7x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.50 | 5.00 |
10x0.35 | 12/0.21 | 52.00 | 0.20 | 1.30 | 0.50 | 6.40 |
1x0.5 | 16/0.21 | 37.10 | 0.22 | 1.30 | 0.60 | 2.50 |
2x0.5 | 16/0.21 | 37.10 | 0.22 | 1.60 | 0.60 | 4.50 |
3x0.5 | 16/0.21 | 37.10 | 0.22 | 1.60 | 0.60 | 4.80 |
4x0.5 | 16/0.21 | 37.10 | 0.22 | 1.60 | 0.60 | 5.20 |
5x0.5 | 16/0.21 | 37.10 | 0.22 | 1.60 | 0.60 | 5.60 |
7x0.5 | 16/0.21 | 37.10 | 0.22 | 1.60 | 0.60 | 6.10 |
10x0.5 | 16/0.21 | 37.10 | 0.22 | 1.60 | 0.60 | 7.70 |
1x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.40 | 2.80 |
2x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.60 | 5.10 |
3x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.60 | 5.40 |

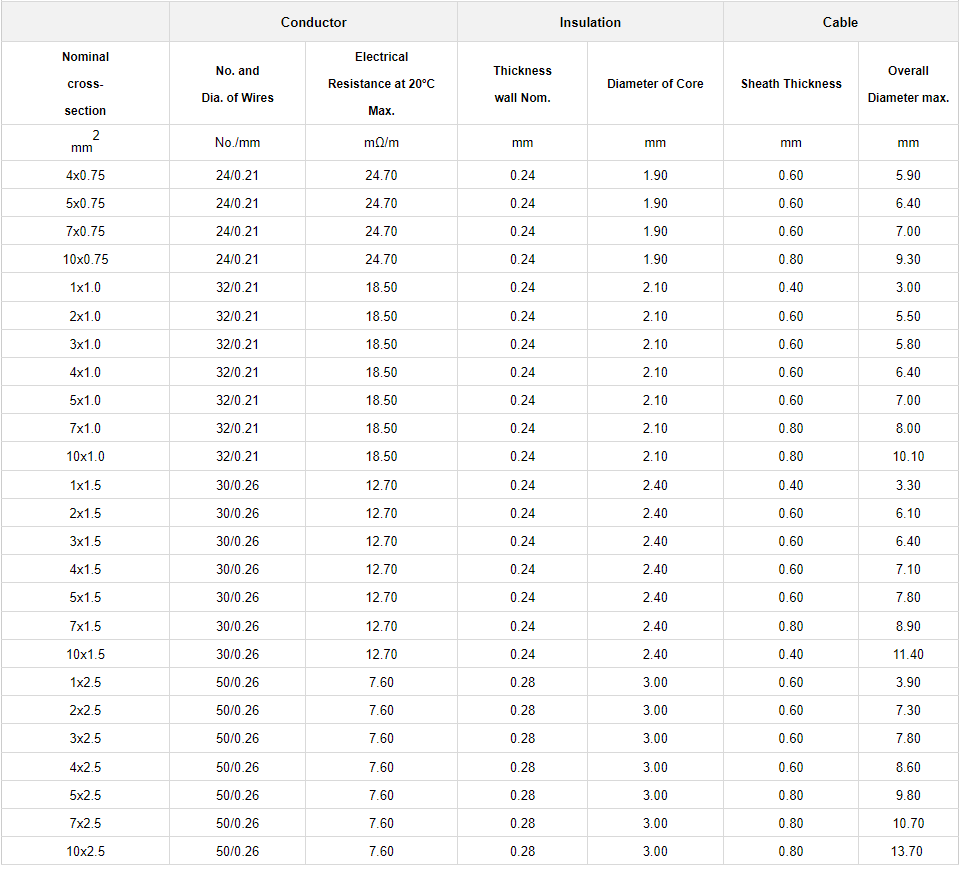

Conductor | Insulation | Cable | ||||
Nominal | No. and | Electrical | Thickness | Diameter of Core | Sheath Thickness | Overall Diameter max. |
mm2 | No./mm | mΩ/m | mm | mm | mm | mm |
4x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.60 | 5.90 |
5x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.60 | 6.40 |
7x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.60 | 7.00 |
10x0.75 | 24/0.21 | 24.70 | 0.24 | 1.90 | 0.80 | 9.30 |
1x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.40 | 3.00 |
2x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.60 | 5.50 |
3x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.60 | 5.80 |
4x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.60 | 6.40 |
5x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.60 | 7.00 |
7x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.80 | 8.00 |
10x1.0 | 32/0.21 | 18.50 | 0.24 | 2.10 | 0.80 | 10.10 |
1x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.40 | 3.30 |
2x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.60 | 6.10 |
3x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.60 | 6.40 |
4x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.60 | 7.10 |
5x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.60 | 7.80 |
7x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.80 | 8.90 |
10x1.5 | 30/0.26 | 12.70 | 0.24 | 2.40 | 0.40 | 11.40 |
1x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.60 | 3.90 |
2x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.60 | 7.30 |
3x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.60 | 7.80 |
4x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.60 | 8.60 |
5x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.80 | 9.80 |
7x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.80 | 10.70 |
10x2.5 | 50/0.26 | 7.60 | 0.28 | 3.00 | 0.80 | 13.70 |
