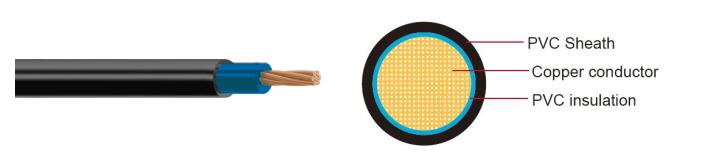

FLYOY FLYKOY Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
Insulation | PVC | |||||||||
Sheath | PVC, lead free | |||||||||
Standard Compliance | ISO 6722 Class B | |||||||||
Special properties | Flame retardant, Extra flexibility, Cold resistance | |||||||||
Technical Parameters | Operating temperature:–40 °C to +105 °C | |||||||||
Application: | ||||||||||
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits. | ||||||||||
 | ||||||||||
Zion's Hot Types of FLYOY FLYKOY Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter of | Electrical resistance at 20°C max. | Nominal thickness | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. | ||
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km | ||
1x4 | 56/0.31 | 2.75 | 4.70 | 0.80 | 2.00 | 8.00 | 8.40 | 123.00 | ||
1x6 | 84/0.31 | 3.30 | 3.10 | 0.80 | 2.00 | 8.60 | 9.00 | 149.00 | ||
1x10 | 80/0.41 | 4.50 | 1.82 | 1.00 | 3.00 | 12.20 | 12.80 | 267.00 | ||
1x16 | 126/0.41 | 6.30 | 1.16 | 1.00 | 2.00 | 11.50 | 12.10 | 279.00 | ||
1x50 | 396/0.41 | 10.50 | 0.37 | 0.80 | 1.40 | 14.50 | 15.10 | 587.00 | ||
1x50 | 1600/0.21 | 10.90 | 0.39 | 0.80 | 1.40 | 14.50 | 15.10 | 592.00 | ||
1x70 | 2200/0.21 | 13.30 | 0.27 | 1.00 | 1.60 | 17.50 | 18.30 | 870.00 | ||
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
FLYOY FLYKOY Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
Insulation | PVC | |||||||||
Sheath | PVC, lead free | |||||||||
Standard Compliance | ISO 6722 Class B | |||||||||
Special properties | Flame retardant, Extra flexibility, Cold resistance | |||||||||
Technical Parameters | Operating temperature:–40 °C to +105 °C | |||||||||
Application: | ||||||||||
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits. | ||||||||||
| ||||||||||
Zion's Hot Types of FLYOY FLYKOY Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter of | Electrical resistance at 20°C max. | Nominal thickness | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. | ||
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km | ||
1x4 | 56/0.31 | 2.75 | 4.70 | 0.80 | 2.00 | 8.00 | 8.40 | 123.00 | ||
1x6 | 84/0.31 | 3.30 | 3.10 | 0.80 | 2.00 | 8.60 | 9.00 | 149.00 | ||
1x10 | 80/0.41 | 4.50 | 1.82 | 1.00 | 3.00 | 12.20 | 12.80 | 267.00 | ||
1x16 | 126/0.41 | 6.30 | 1.16 | 1.00 | 2.00 | 11.50 | 12.10 | 279.00 | ||
1x50 | 396/0.41 | 10.50 | 0.37 | 0.80 | 1.40 | 14.50 | 15.10 | 587.00 | ||
1x50 | 1600/0.21 | 10.90 | 0.39 | 0.80 | 1.40 | 14.50 | 15.10 | 592.00 | ||
1x70 | 2200/0.21 | 13.30 | 0.27 | 1.00 | 1.60 | 17.50 | 18.30 | 870.00 | ||
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
