Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

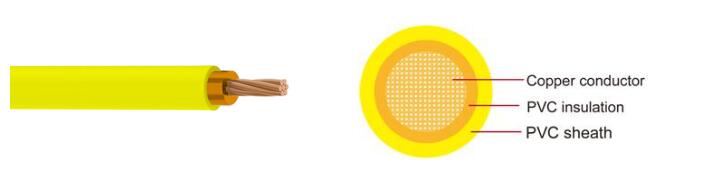

FLYY Single-core Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
Insulation | PVC | |||||||||
Sheath | PVC | |||||||||
Standard Compliance | ISO 6722 Class B | |||||||||
Technical Parameters | Operating temperature:–40 °C to 105 °C | |||||||||
Application: | ||||||||||
Automotive PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles. | ||||||||||
 | ||||||||||
Zion's Hot Types of FLYY Single-core Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. Dia. / Wire | Diameter | Electrical resistance at 20°C max. | Thickness | Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.60 | 2.10 | 0.40 | 2.70 | 3.10 | 14.00 | |
1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.60 | 2.30 | 0.40 | 3.00 | 3.30 | 17.00 | |
1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.60 | 2.50 | 0.40 | 3.20 | 3.60 | 20.00 | |
1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.60 | 2.80 | 0.50 | 3.70 | 4.10 | 28.00 | |
1x2.00 | 40/0.26 | 2.00 | 9.42 | 0.60 | 3.00 | 0.50 | 3.90 | 4.30 | 33.00 | |
1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.70 | 3.50 | 0.50 | 4.30 | 4.80 | 41.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
