Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

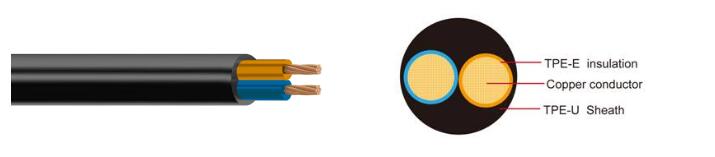

FLR31Y11Y Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||
Insulation | TPE-S Outer | |||||||||
Sheath | TPE-U | |||||||||
Standard Compliance | ISO 6722 Class C | |||||||||
Special properties | Flame retardant, Highly resistant against acids,lays,petrol and diesel | |||||||||
Technical Parameters | Operating temperature:–40 °C to +125 °C | |||||||||
Application: | ||||||||||
This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits. | ||||||||||
 | ||||||||||
Zion's Hot Types of FLR31Y11Y Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20℃ Max. | Nominal thickness | Diameter of Core | Sheath wall thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
2x0.50 | 28/0.16 | 1.00 | 37.10 | 0.30 | 1.50 | 0.70 | 4.30 | 4.70 | 38.00 | |
2x0.50 | 28/0.16 | 1.00 | 37.10 | 0.30 | 1.50 | 1.00 | 4.80 | 5.20 | 45.00 | |
2x0.75 | 42/0.16 | 1.20 | 24.70 | 0.30 | 1.80 | 1.20 | 6.00 | 6.40 | 64.00 | |
2x0.75 | 96/0.11 | 1.20 | 24.70 | 0.30 | 1.80 | 1.20 | 6.00 | 6.40 | 48.00 | |
3x0.5 | 19/0.19 | 1.00 | 37.10 | 0.30 | 1.60 | 0.80 | 5.00 | 5.20 | 47.00 | |
3x1.0 | 19/0.26 | 1.20 | 18.50 | 0.35 | 2.00 | 0.80 | 5.70 | 6.00 | 7.00 | |
4x0.5 | 28/0.16 | 1.00 | 37.00 | 0.30 | 1.50 | 1.20 | 6.00 | 6.40 | 76.00 | |
4x0.5 | 64/0. | 1.00 | 37.00 | 0.30 | 1.60 | 1.20 | 6.00 | 6.40 | 5.00 | |
5x0.5 | 64/0. | 1.00 | 37.00 | 0.30 | 1.60 | 1.00 | 6.00 | 6.40 | 54.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request | ||||||||||
