Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

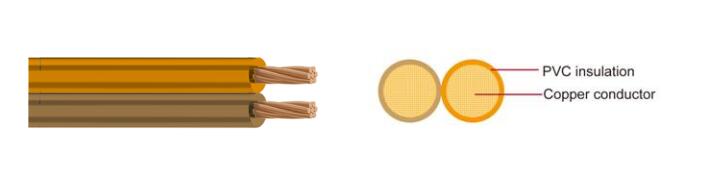

FLYZ Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 bare according to DIN EN13602 | |||||||||
Insulation | PVC | |||||||||
Standard Compliance | ISO 6722 Class B | |||||||||
Technical Parameters | Operating temperature:–40 °C to +105 °C | |||||||||
Application: | ||||||||||
Automotive PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo and mechanical strength are required | ||||||||||
 | ||||||||||
Zion's Hot Types of FLYZ Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter | Electrical resistance at 20°C max. | Thickness | Diameter of Core | Diameter Width | Diameter Height | Weight approx. | ||
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km | ||
2 x0.50 | 16 /0.21 | 1.00 | 37.10 | 0.50 | 2.10 | 4.40±0.20 | 2.10±0.15 | 20.00 | ||
2 x0.75 | 24 /0.21 | 1.20 | 24.70 | 0.60 | 2.35 | 4.70±0.30 | 2.35±0.15 | 23.00 | ||
2 x1.00 | 32/0.20 | 1.50 | 19.50 | 0.60 | 2.55 | 5.10±0.30 | 2.50±0.15 | 32.00 | ||
2 x1.50 | 48 /0.26 | 1.70 | 12.70 | 0.60 | 2.80 | 5.60±0.30 | 2.80±0.15 | 39.00 | ||
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
