FLYWK & FLRYWK Automotive Cable

FLYWK & FLRYWK Automotive Cable

Product Description:

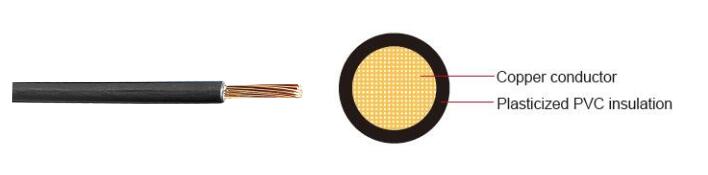

Conductor

Cu-ETP1 bare according to DIN EN 13602

Insulation

Plasticized PVC (heat and cold resistant)

Standard Compliance

 ISO 6722 Class B

Special properties

Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.
Flexible conductors with PVC Thin wall insulation with increased mechanical strength

Technical Parameters

Operating temperature:–50°C to +105°C

Application:

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits.

Zion's Hot Types of FLYWK & FLRYWK Automotive cable

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.5

16/0.20

1.00

37.10

0.28

1.40

1.60

6.00

1x0.75

24/0.20

1.20

24.70

0.60

2.20

2.50

33.00

1x1.00

32/0.20

1.40

18.50

0.30

1.80

2.10

57.00

1x1.50

30/0.25

1.70

12.70

0.30

2.20

2.40

111.00

1x2.50

50/0.25

2.10

7.60

0.70

3.30

3.70

278.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
