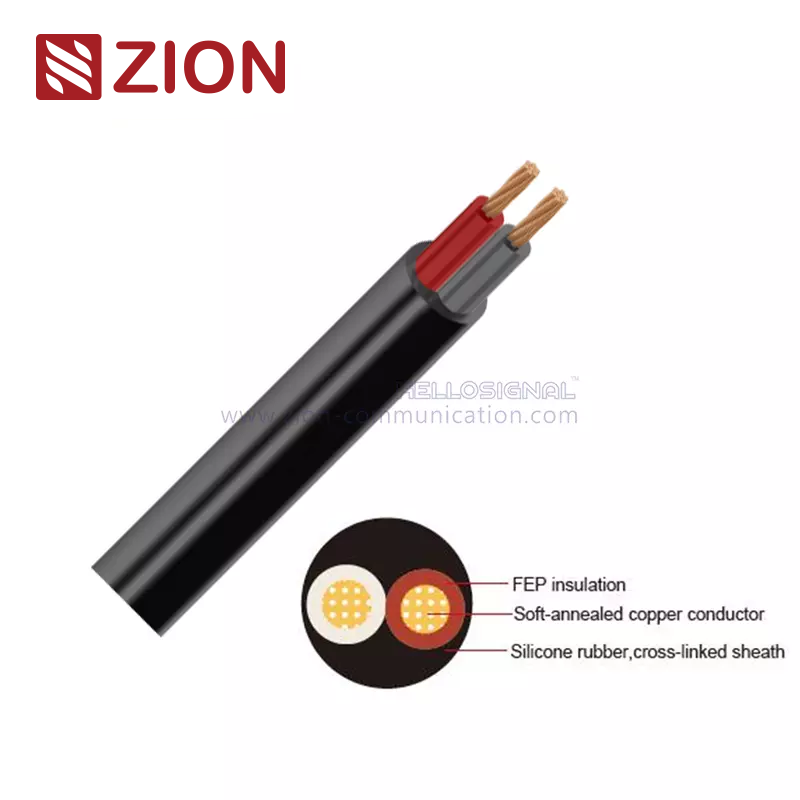

FL6Y2G Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 or bare according to DIN EN 13602 | |||||||||
Insulation | Fluorinated ethylene propylene(FEP) insulation | |||||||||
Standard Compliance | ISO 6722 Class F | |||||||||
Technical Parameters | Operating temperature:–40 °C to +210 °C | |||||||||
Application: | ||||||||||
Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment. | ||||||||||
 | ||||||||||
Zion's Hot Types of FL6Y2G Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter | Electrical resistance at 20°C max. | Thickness | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. | ||
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km | ||
2x0.35 | 12/0.21 | 0.80 | 52.00 | 0.40 | 0.53 | 4.60 | 5.00 | 32.00 | ||
2x0.25 | 24/0.16 | 0.70 | 86.50 | 0.40 | 0.53 | 3.40 | 3.80 | 24.00 | ||
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||

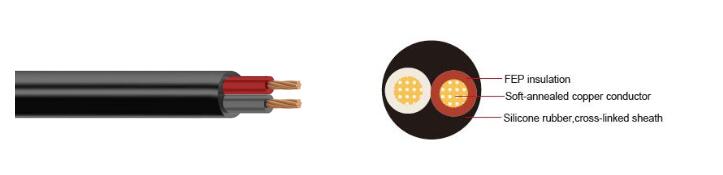

FL6Y2G Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 or bare according to DIN EN 13602 | |||||||||
Insulation | Fluorinated ethylene propylene(FEP) insulation | |||||||||
Standard Compliance | ISO 6722 Class F | |||||||||
Technical Parameters | Operating temperature:–40 °C to +210 °C | |||||||||
Application: | ||||||||||
Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment. | ||||||||||
| ||||||||||
Zion's Hot Types of FL6Y2G Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter | Electrical resistance at 20°C max. | Thickness | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. | ||
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km | ||
2x0.35 | 12/0.21 | 0.80 | 52.00 | 0.40 | 0.53 | 4.60 | 5.00 | 32.00 | ||
2x0.25 | 24/0.16 | 0.70 | 86.50 | 0.40 | 0.53 | 3.40 | 3.80 | 24.00 | ||
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
