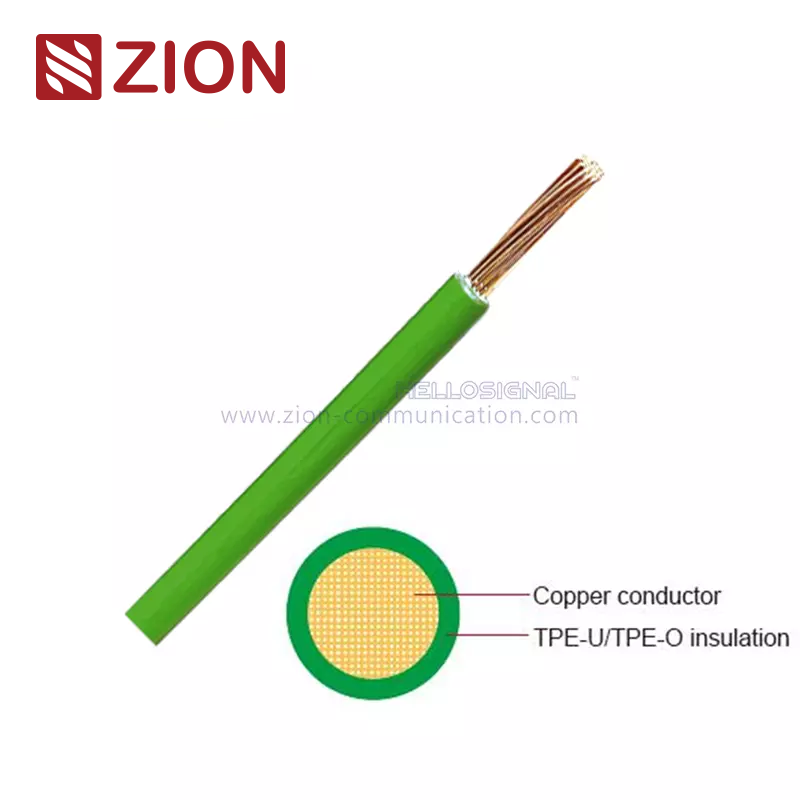

FL91Y Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||
Insulation | TPE-U (FL11Y) | |||||||
Standard Compliance | ISO 6722 Class B (FL11Y) | |||||||
Special properties | Flame retardant, Also available as aluminium battery cables. | |||||||
Technical Parameters | Operating temperature: –40°C to +110°C (FL11Y) | |||||||
Application: | ||||||||
This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits. | ||||||||
 | ||||||||
Zion's Hot Types of FL91Y Automotive cable | ||||||||
Conductor Construction | Insulation | Cable | ||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x6 | 84/0.31 | 3.30 | 3.10 | 0.80 | 4.60 | 5.00 | 73.00 | |
1x10 | 80/0.41 | 4.50 | 1.82 | 1.00 | 6.00 | 6.50 | 120.00 | |
1x16 | 126/0.41 | 6.30 | 1.16 | 1.00 | 7.00 | 8.10 | 177.00 | |
1x25 | 196/0.41 | 7.80 | 0.74 | 1.30 | 8.70 | 10.20 | 275.00 | |
1x35 | 276/0.41 | 9.00 | 0.53 | 1.30 | 10.00 | 10.70 | 373.00 | |
1x50 | 400/0.41 | 10.50 | 0.37 | 1.50 | 11.90 | 13.00 | 541.00 | |
1x70 | 560/0.41 | 12.50 | 0.30 | 1.50 | 14.00 | 15.00 | 734.00 | |
1x95 | 740/0.41 | 14.80 | 0.20 | 1.60 | 15.40 | 16.20 | 956.00 | |
1x120 | 960/0.41 | 16.50 | 0.15 | 1.60 | 18.70 | 19.70 | 1218.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
