FLR12Y-A FLR12Y-B Automotive Cable

FLR12Y-A FLR12Y-B Automotive Cable

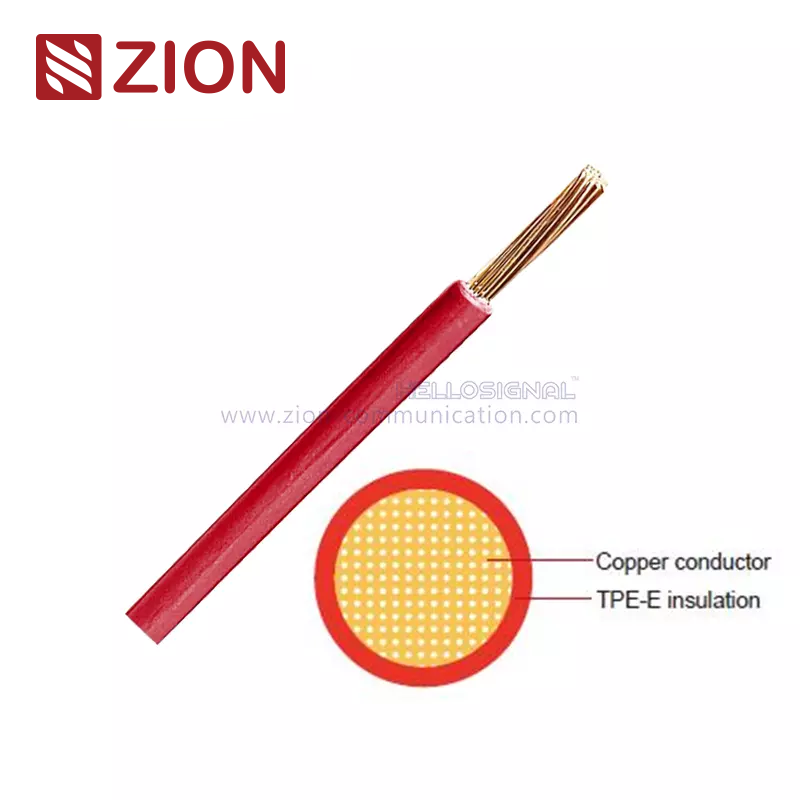

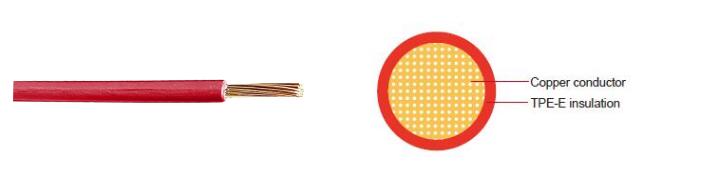

Product Description:

Conductor

Cu-ETP1 bare according to DIN EN 13602

Insulation

TPE-E

Standard Compliance

 ISO 6722 Class D

Technical Parameters

Operating temperature:–40°C to +150°C

Application:

This TPE-E insulated single-core cable is used for cable harnesses.

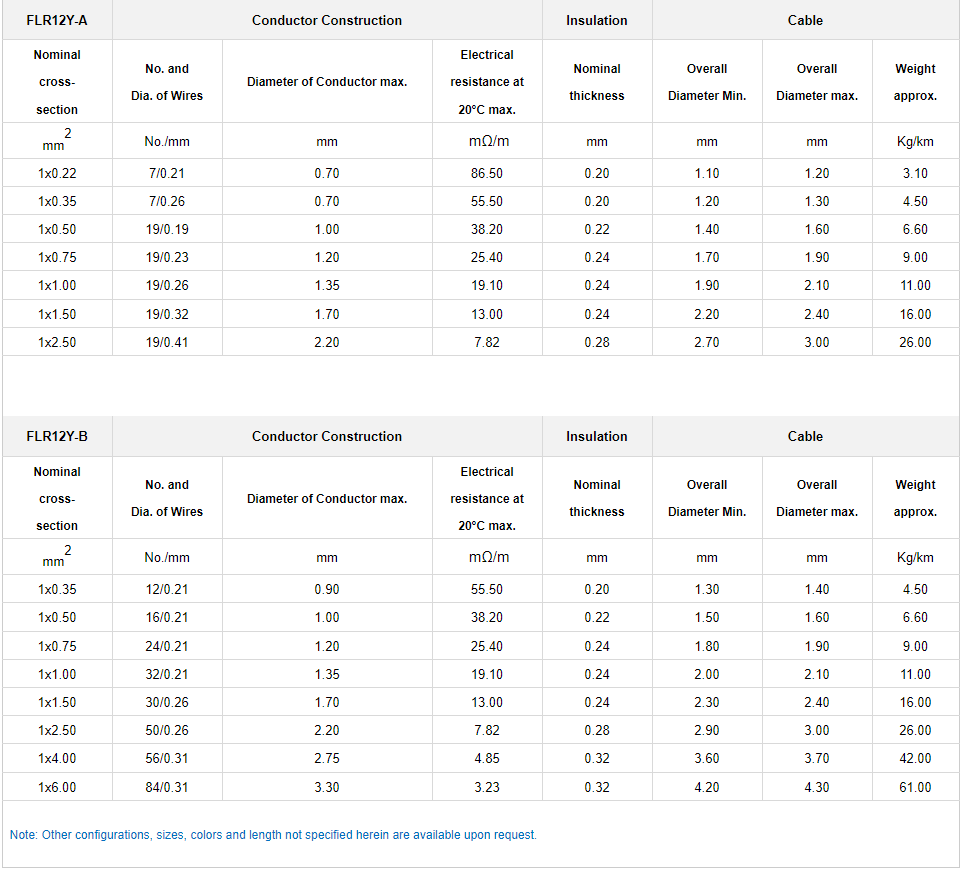

Zion's Hot Types of FLR12Y-A FLR12Y-B Automotive cable

FLR12Y-A

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.22

7/0.21

0.70

86.50

0.20

1.10

1.20

3.10

1x0.35

7/0.26

0.70

55.50

0.20

1.20

1.30

4.50

1x0.50

19/0.19

1.00

38.20

0.22

1.40

1.60

6.60

1x0.75

19/0.23

1.20

25.40

0.24

1.70

1.90

9.00

1x1.00

19/0.26

1.35

19.10

0.24

1.90

2.10

11.00

1x1.50

19/0.32

1.70

13.00

0.24

2.20

2.40

16.00

1x2.50

19/0.41

2.20

7.82

0.28

2.70

3.00

26.00

FLR12Y-B

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.35

12/0.21

0.90

55.50

0.20

1.30

1.40

4.50

1x0.50

16/0.21

1.00

38.20

0.22

1.50

1.60

6.60

1x0.75

24/0.21

1.20

25.40

0.24

1.80

1.90

9.00

1x1.00

32/0.21

1.35

19.10

0.24

2.00

2.10

11.00

1x1.50

30/0.26

1.70

13.00

0.24

2.30

2.40

16.00

1x2.50

50/0.26

2.20

7.82

0.28

2.90

3.00

26.00

1x4.00

56/0.31

2.75

4.85

0.32

3.60

3.70

42.00

1x6.00

84/0.31

3.30

3.23

0.32

4.20

4.30

61.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
