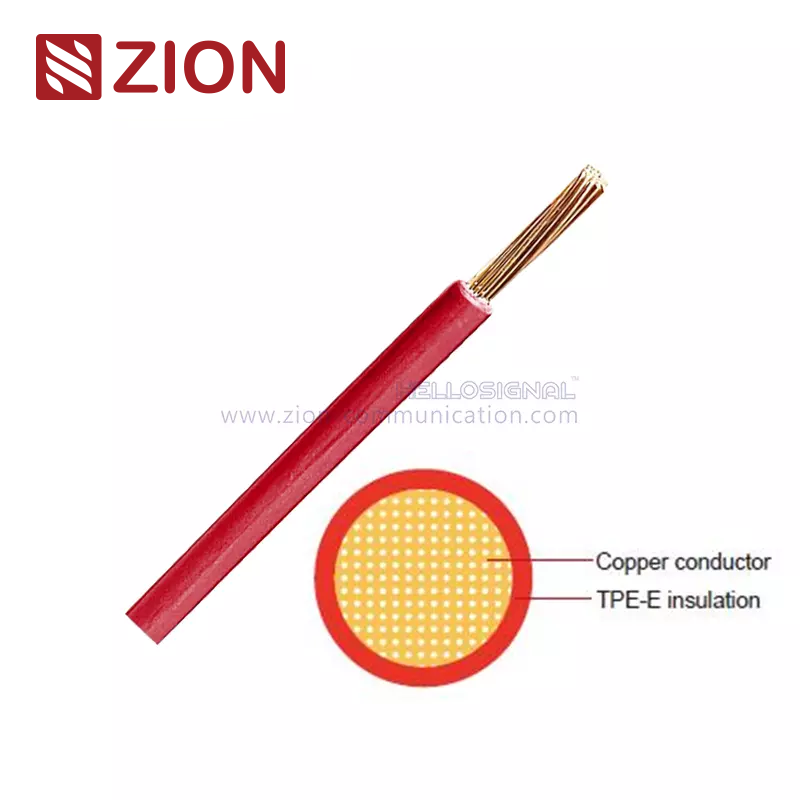

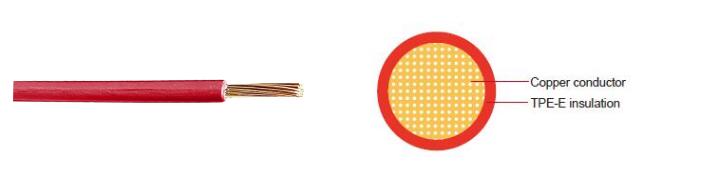

FLR13Y-A/B Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||
Insulation | TPE-E | |||||||
Standard Compliance | ISO 6722 Class D | |||||||
Special properties | Limited resistance to hydrolysis | |||||||
Technical Parameters | Operating temperature:–40°C to +150°C | |||||||
Application: | ||||||||
This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits. | ||||||||
 | ||||||||
Zion's Hot Types of FLR13Y-A/B Automotive cable | ||||||||
FLR13Y-A | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x 0.22 | 7/0.21 | 0.70 | 84.80 | 0.20 | 1.10 | 1.20 | 3.00 | |
1x 0.35 | 7/0.26 | 0.80 | 52.00 | 0.20 | 1.20 | 1.60 | 5.00 | |
1x 0. 5 | 19/0.19 | 1.00 | 37.10 | 0.22 | 1.40 | 1.60 | 6.00 | |
1x 0. 75 | 19/0.23 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1 | 19/0.26 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 11.00 | |
1x 1.5 | 19/0.32 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 17.00 | |
1x 2 | 19/0.37 | 2.00 | 9.42 | 0.28 | 2.50 | 2.80 | 21.00 | |
1x 2.5 | 19/0.41 | 2.20 | 7.60 | 0.28 | 2.70 | 3.00 | 26.00 | |
FLR13Y-B | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x 0.35 | 12/0.21 | 0.90 | 52.00 | 0.20 | 1.20 | 1.40 | 5.00 | |
1x 0. 5 | 16/0.21 | 1.00 | 37.10 | 0.22 | 1.40 | 1.60 | 6.00 | |
1x 0. 75 | 24/0.21 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1 | 32/0.21 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 12.00 | |
1x 1.5 | 30/0.26 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 16.00 | |
1x 2 | 30/0.31 | 2.00 | 9.42 | 0.28 | 2.50 | 2.80 | 23.00 | |
1x 2.5 | 50/0.26 | 2.20 | 7.60 | 0.28 | 3.70 | 3.00 | 26.00 | |
1x4 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.40 | 3.70 | 41.00 | |
1x6 | 84/0.31 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 60.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
FLR13Y-A/B Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||
Insulation | TPE-E | |||||||
Standard Compliance | ISO 6722 Class D | |||||||
Special properties | Limited resistance to hydrolysis | |||||||
Technical Parameters | Operating temperature:–40°C to +150°C | |||||||
Application: | ||||||||
This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits. | ||||||||
| ||||||||
Zion's Hot Types of FLR13Y-A/B Automotive cable | ||||||||
FLR13Y-A | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x 0.22 | 7/0.21 | 0.70 | 84.80 | 0.20 | 1.10 | 1.20 | 3.00 | |
1x 0.35 | 7/0.26 | 0.80 | 52.00 | 0.20 | 1.20 | 1.60 | 5.00 | |
1x 0. 5 | 19/0.19 | 1.00 | 37.10 | 0.22 | 1.40 | 1.60 | 6.00 | |
1x 0. 75 | 19/0.23 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1 | 19/0.26 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 11.00 | |
1x 1.5 | 19/0.32 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 17.00 | |
1x 2 | 19/0.37 | 2.00 | 9.42 | 0.28 | 2.50 | 2.80 | 21.00 | |
1x 2.5 | 19/0.41 | 2.20 | 7.60 | 0.28 | 2.70 | 3.00 | 26.00 | |
FLR13Y-B | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x 0.35 | 12/0.21 | 0.90 | 52.00 | 0.20 | 1.20 | 1.40 | 5.00 | |
1x 0. 5 | 16/0.21 | 1.00 | 37.10 | 0.22 | 1.40 | 1.60 | 6.00 | |
1x 0. 75 | 24/0.21 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1 | 32/0.21 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 12.00 | |
1x 1.5 | 30/0.26 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 16.00 | |
1x 2 | 30/0.31 | 2.00 | 9.42 | 0.28 | 2.50 | 2.80 | 23.00 | |
1x 2.5 | 50/0.26 | 2.20 | 7.60 | 0.28 | 3.70 | 3.00 | 26.00 | |
1x4 | 56/0.31 | 2.75 | 4.71 | 0.32 | 3.40 | 3.70 | 41.00 | |
1x6 | 84/0.31 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 60.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
