Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

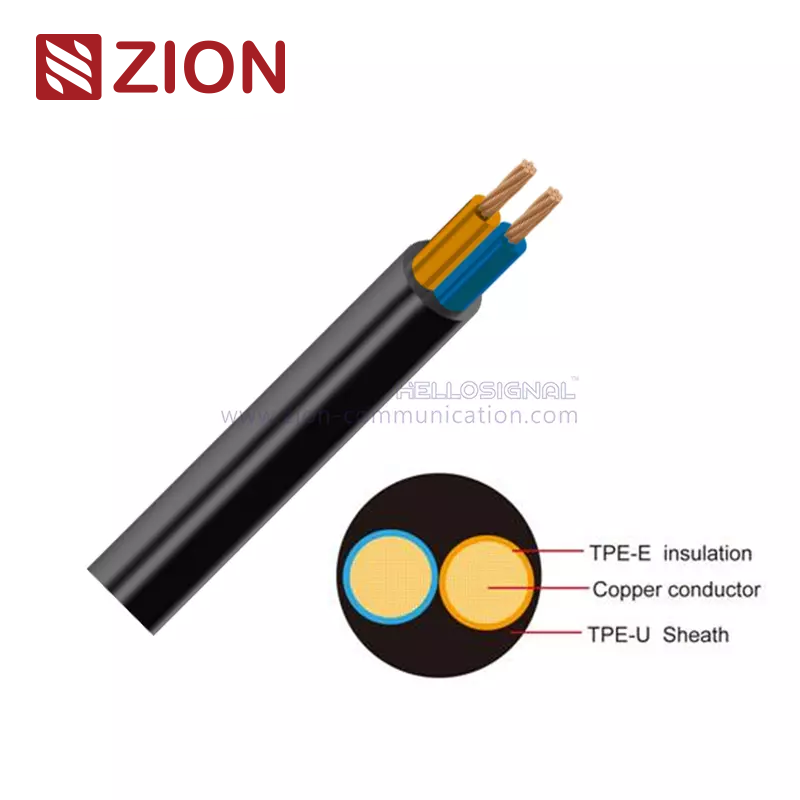

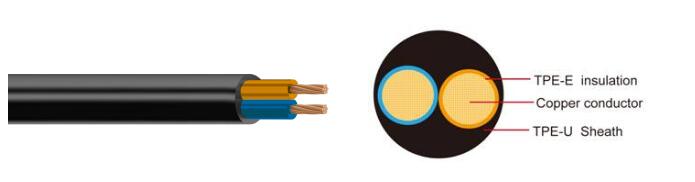

FLR13Y11Y Automotive Cable | ||||||||||
Product Description: | ||||||||||
Conductor | Cu-ETP1 according to DIN EN13602 | |||||||||
Insulation | Thermoplastic polyester (TPE-E) | |||||||||
Sheath | Thermoplastic polyurethane (TPE-U) | |||||||||
Standard Compliance | ISO 6722 Class C | |||||||||
Technical Parameters | Operating temperature:–40 °C to +125 °C | |||||||||
Application: | ||||||||||
Automotive TPE-E insulated ,TPE-U sheathed low tension multi-cores cable is used for ABS systems, it has excellent abrasion resistance and better resistance to bending fatigue. | ||||||||||
 | ||||||||||
Zion's Hot Types of FLR13Y11Y Automotive cable | ||||||||||
Conductor | Insulation | Cable | ||||||||
Nominal | No. and Dia. of Wires | Diameter | Electrical resistance at 20°C max. | Thickness | Diameter of Core | Sheath Thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km | |
2 x 0.50 | 28 /0.16 | 1.00 | 37.10 | 0.20 | 1.40 | 0.60 | 3.85 | 4.15 | 22.00 | |
2 x 0.50 | 28 /0.16 | 1.00 | 37.10 | 0.20 | 1.40 | 0.85 | 4.35 | 4.65 | 27.00 | |
2 x 0.50 | 28 /0.16 | 1.00 | 37.10 | 0.35 | 1.70 | 0.80 | 4.80 | 5.20 | 32.00 | |
2 x 0.60 | 80/0.11 | 1.20 | 24.70 | 0.20 | 1.45 | 0.80 | 4.35 | 4.65 | 28.00 | |
2 x 0.75 | 42/0.16 | 1.20 | 27.10 | 0.30 | 1.80 | 1.30 | 6.00 | 6.40 | 48.00 | |
2 x 0.75 | 96 /0.10 | 1.20 | 27.10 | 0.30 | 1.80 | 1.30 | 6.00 | 6.40 | 62.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||||
