FLR5Y-A FLR5Y-B Automotive Cable

FLR5Y-A FLR5Y-B Automotive Cable

Product Description:

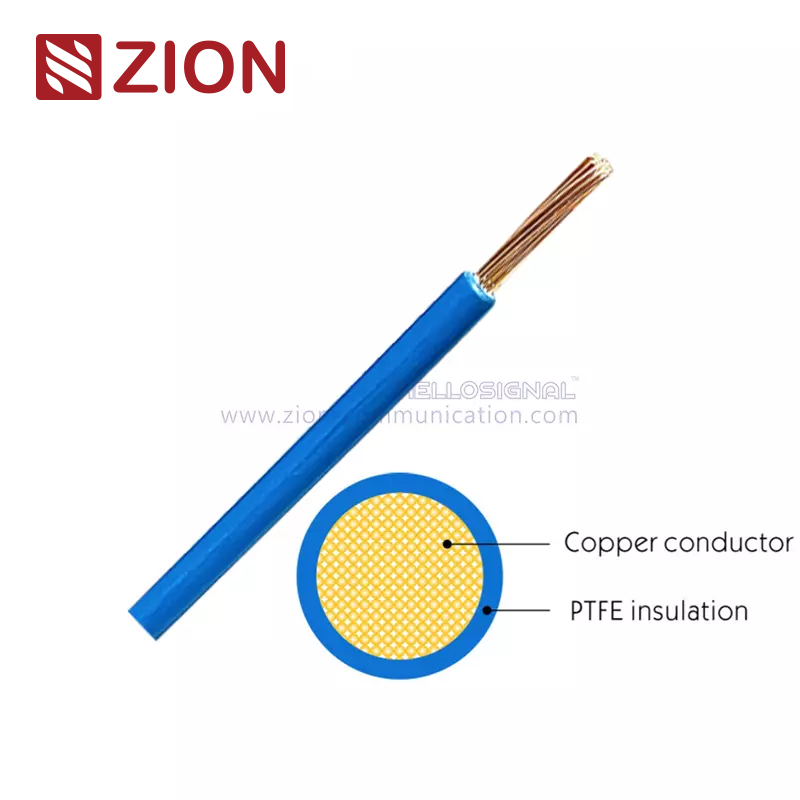

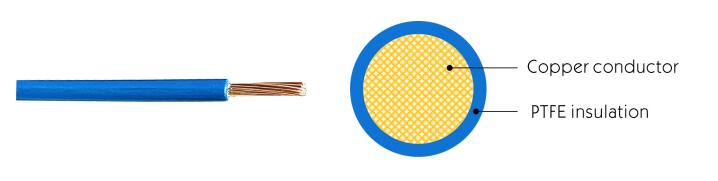

Conductor

FLR5Y-A FLR5Y-B PTFE

Insulation

PTFE

Standard Compliance

 ISO 6722 Class H

Special properties

Excellent resistance to chemicals

Technical Parameters

Operating temperature: –90°C to +260°C

Application:

This PTFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits.

Zion's Hot Types of FLR5Y-A FLR5Y-B Automotive cable

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x 0.22

7/0.21

0.70

87.90

0.20

1.10

1.20

3.00

1x 0.35

7/0.27

0.80

56.80

0.20

1.25

1.35

5.00

1x 0. 5

19/0.19

1.00

38.60

0.22

1.40

1.60

6.00

1x 0. 75

19/0.24

1.20

25.70

0.24

1.70

1.90

10.00

1x1

19/0.27

1.35

19.30

0.24

1.75

1.95

11.00

1x 1.5

19/0.33

1.70

13.20

0.24

2.10

2.30

17.00

1x 2.5

19/0.41

2.20

7.92

0.28

2.50

2.80

25.00

Conductor Construction

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of Conductor max.

Electrical
resistance at 20°C max.

Nominal thickness

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x 0.35

12/0.21

0.90

87.90

0.20

1.25

1.35

5.00

1x 0. 5

16/0.21

1.00

56.80

0.22

1.40

1.60

6.00

1x 0. 75

24/0.21

1.20

38.60

0.24

1.70

1.90

9.00

1x1

32/0.21

1.40

25.70

0.24

1.75

1.95

11.00

1x 1.5

30/0.26

1.70

19.30

0.24

2.10

2.30

16.00

1x 2.5

50/0.26

2.20

13.20

0.28

2.50

2.80

26.00

1x 4

56/0.31

2.75

4.91

0.32

3.05

3.35

40.00

1x 6

84/0.31

3.40

3.27

0.32

3.85

4.15

61.00

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
