Automotive Cable
hellosignal
Japanese Standard
Normally 25 working days
NINGBO, SHANGHAI

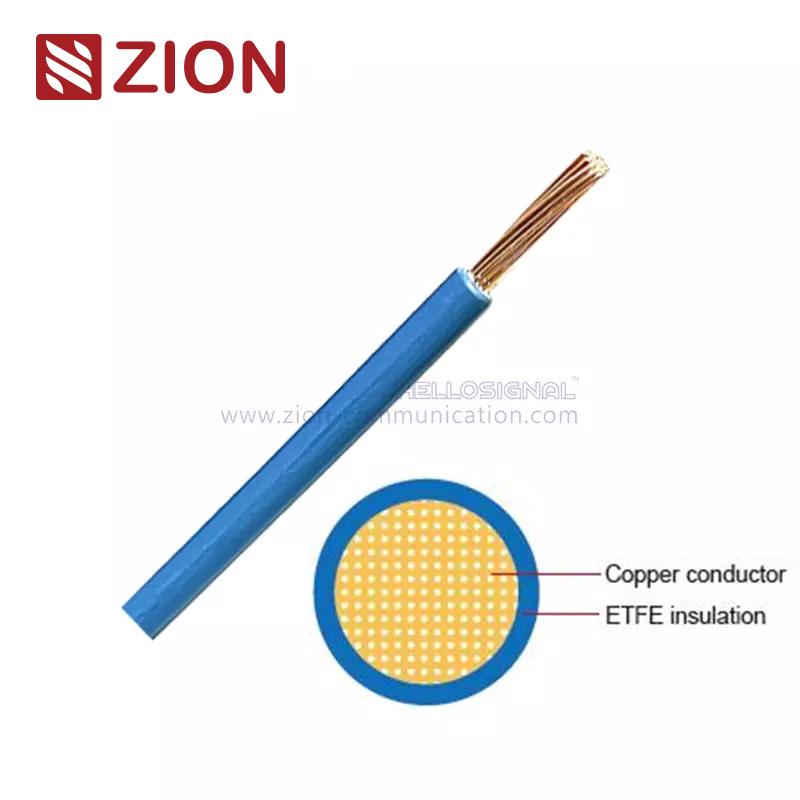

FLR7Y-A FLR7Y-B Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare/tinned according to DIN EN 13602 | |||||||
Insulation | ETFE | |||||||
Standard Compliance | ISO 6722 Class E | |||||||
Special properties | Highly resistant against acids,lyes,petrol and diesel/Excellent chmical resistance/Good mechanical & thermal properties | |||||||
Technical Parameters | Operating temperature:–45°C to +180°C | |||||||
Application: | ||||||||
This ETFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits. | ||||||||
 | ||||||||
Zion's Hot Types of FLR7Y-A FLR7Y-B Automotive cable | ||||||||
FLR7Y-A | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.35 | 7/0.23 | 0.80 | 52/53.5 | 0.20 | 1.20 | 1.30 | 5.00 | |
1x0.5 | 19/0.19 | 1.00 | 37.1/38.2 | 0.22 | 1.40 | 1.60 | 6.00 | |
1x0.75 | 19/0.23 | 1.20 | 24.7/25.4 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1 | 19/0.26 | 1.35 | 18.5/19.1 | 0.24 | 1.90 | 2.10 | 11.00 | |
1x1.5 | 19/0.32 | 1.70 | 12.7/13.0 | 0.24 | 2.20 | 2.40 | 17.00 | |
1x2.5 | 19/0.41 | 2.20 | 7.6/7.82 | 0.28 | 2.70 | 3.00 | 25.00 | |
FLR7Y-B | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.35 | 12/0.21 | 0.90 | 54/55.5 | 0.20 | 1.20 | 1.40 | 5.00 | |
1x0.5 | 16/0.21 | 1.00 | 37.1/38.2 | 0.22 | 1.40 | 1.60 | 7.00 | |
1x0.75 | 24/0.21 | 1.20 | 24.7/25.4 | 0.24 | 1.70 | 1.90 | 10.00 | |
1x1 | 32/0.21 | 1.35 | 18.5/19.1 | 0.24 | 1.90 | 2.10 | 12.00 | |
1x1.5 | 30/0.26 | 1.70 | 12.7/13.0 | 0.24 | 2.20 | 2.40 | 18.00 | |
1x2.5 | 50/0.26 | 2.20 | 7.6/7.82 | 0.28 | 2.70 | 3.00 | 30.00 | |
4.00 | 56/0.31 | 2.75 | 4.71/4.85 | 0.32 | 3.40 | 3.70 | 42.00 | |
6.00 | 84/0.31 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 62.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||

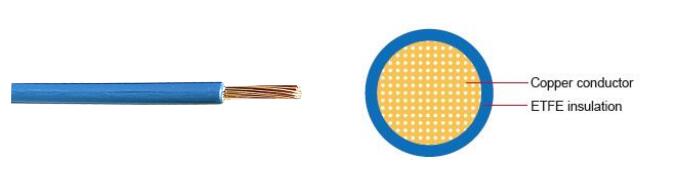

FLR7Y-A FLR7Y-B Automotive Cable | ||||||||
Product Description: | ||||||||
Conductor | Cu-ETP1 bare/tinned according to DIN EN 13602 | |||||||
Insulation | ETFE | |||||||
Standard Compliance | ISO 6722 Class E | |||||||
Special properties | Highly resistant against acids,lyes,petrol and diesel/Excellent chmical resistance/Good mechanical & thermal properties | |||||||
Technical Parameters | Operating temperature:–45°C to +180°C | |||||||
Application: | ||||||||
This ETFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging,lighting,signal and instrument panel circuits. | ||||||||
| ||||||||
Zion's Hot Types of FLR7Y-A FLR7Y-B Automotive cable | ||||||||
FLR7Y-A | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.35 | 7/0.23 | 0.80 | 52/53.5 | 0.20 | 1.20 | 1.30 | 5.00 | |
1x0.5 | 19/0.19 | 1.00 | 37.1/38.2 | 0.22 | 1.40 | 1.60 | 6.00 | |
1x0.75 | 19/0.23 | 1.20 | 24.7/25.4 | 0.24 | 1.70 | 1.90 | 9.00 | |
1x1 | 19/0.26 | 1.35 | 18.5/19.1 | 0.24 | 1.90 | 2.10 | 11.00 | |
1x1.5 | 19/0.32 | 1.70 | 12.7/13.0 | 0.24 | 2.20 | 2.40 | 17.00 | |
1x2.5 | 19/0.41 | 2.20 | 7.6/7.82 | 0.28 | 2.70 | 3.00 | 25.00 | |
FLR7Y-B | Conductor Construction | Insulation | Cable | |||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1x0.35 | 12/0.21 | 0.90 | 54/55.5 | 0.20 | 1.20 | 1.40 | 5.00 | |
1x0.5 | 16/0.21 | 1.00 | 37.1/38.2 | 0.22 | 1.40 | 1.60 | 7.00 | |
1x0.75 | 24/0.21 | 1.20 | 24.7/25.4 | 0.24 | 1.70 | 1.90 | 10.00 | |
1x1 | 32/0.21 | 1.35 | 18.5/19.1 | 0.24 | 1.90 | 2.10 | 12.00 | |
1x1.5 | 30/0.26 | 1.70 | 12.7/13.0 | 0.24 | 2.20 | 2.40 | 18.00 | |
1x2.5 | 50/0.26 | 2.20 | 7.6/7.82 | 0.28 | 2.70 | 3.00 | 30.00 | |
4.00 | 56/0.31 | 2.75 | 4.71/4.85 | 0.32 | 3.40 | 3.70 | 42.00 | |
6.00 | 84/0.31 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 62.00 | |
Note: Other configurations, sizes, colors and length not specified herein are available upon request. | ||||||||
