Fiber Optic Test Tools for FTTH, Telecom & Data Center Networks

These fiber optic test tools cover visible fault location and optical power measurement for installation, troubleshooting, and maintenance. Choose a 1 mW or 10 mW VFL when the job is to trace a fiber or find visible faults; choose the optical power meter when you need an absolute power reading across common multimode, single-mode, and PON wavelengths.

Which Fiber Optic Test Tool Fits the Job?

Start with the question you need the tool to answer. The two VFL models show continuity, routing, and visible light leakage at accessible faults; the optical power meter measures received power in dBm or mW. The range contains three focused options rather than a single all-in-one tester.



ZC-VFL-1

1 mW Visual Fault Locator

A 650 nm red-light locator rated for 3–5 km, with continuous and 2 Hz modes and a universal 2.5 mm interface. Consider it for short FTTH drops, patching, and local continuity checks.

View Product Details →

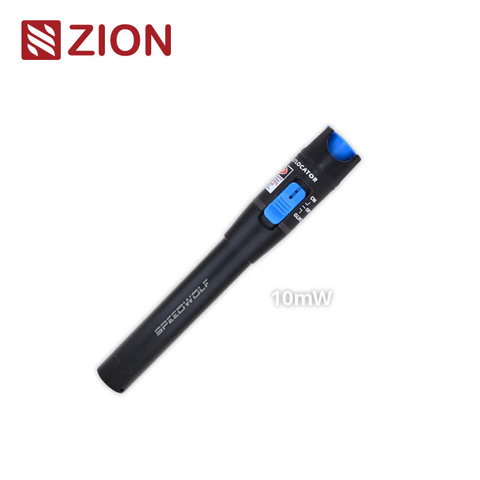

ZC-VFL-10

10 mW Visual Fault Locator

A 650 nm high-power locator rated for distances up to 10 km, with continuous and 2 Hz modes and a universal 2.5 mm interface. Consider it when the test distance is longer than the 1 mW model's range.

View Product Details →



OPTICAL POWER METER

Fiber Optic Power Meter

A handheld InGaAs meter covering 800–1700 nm and –70 to +3 dBm, calibrated at 850, 1300, 1310, 1490, 1550, and 1625 nm. Choose it when the task requires an absolute optical power reading.

View Product Details →

How Do I Choose a Fiber Tester?

Choose by test objective first, then check distance, wavelength, connector interface, and the acceptance method. A VFL and a power meter answer different questions, so one does not automatically replace the other.

Quick Comparison

The shortest selection rule is simple: use a VFL for visible continuity and fault tracing, and use the power meter for numerical power measurement. Confirm the exact connector adapter and project test method before purchase.

What Is a Practical Field Test Workflow?

Use a repeatable sequence: inspect and clean first, trace or localize the problem, take the required measurement, then record the result. This separates a dirty connection, a visible routing fault, and a power-level problem instead of treating them as the same failure.

1. Inspect and clean: follow the site's connector inspection and cleaning procedure before connection or measurement.

2. Trace and localize: on a disconnected fiber, use the selected VFL to verify route continuity and look for visible light leakage at accessible points.

3. Measure: select the correct calibrated wavelength on the power meter and follow the project's reference or receive-power method.

4. Record and label: save the power value, wavelength, route, equipment, and pass/fail limit used by the project.

Where Do These Tools Fit?

These tools fit routine installation, route verification, power checks, and first-line troubleshooting. They do not replace an OTDR, inspection microscope, calibrated light source, or certification system when the project requires event location, end-face grading, insertion-loss testing, or standards-based certification.

Frequently Asked Questions

RFQ Checklist

If you are not sure which tool to specify, send the test objective and network details first. The following information is enough to narrow the configuration without assuming capabilities that the project does not need.

• Test objective: continuity, visible fault location, receive-power check, insertion loss, or formal acceptance

• Fiber type and network: multimode, single-mode, FTTH, telecom, enterprise, or data center

• Required VFL distance and preferred 1 mW or 10 mW output

• Test wavelengths and expected optical power range

• Connector types and required 2.5 mm or 1.25 mm adapters

• Light source, reference method, pass/fail limits, and reporting requirements

• Quantity, packaging, labeling, and any project-specific certificate or test-document requirements
