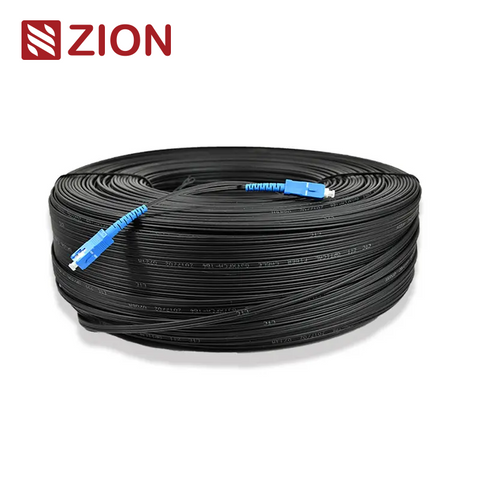

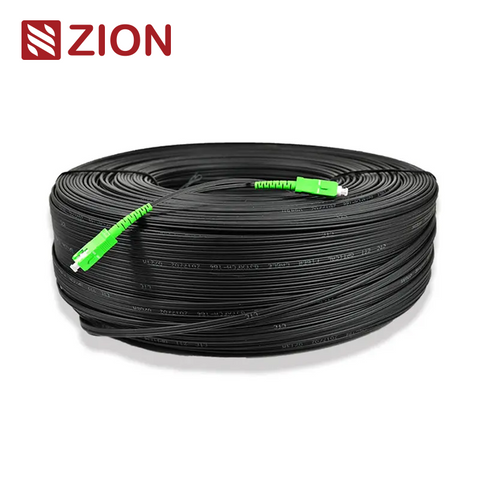

The SC AP/UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord is a specialized type of optical fiber patch cord used primarily in Fiber to the Home (FTTH) projects. Here's a breakdown of its components and features:
SC APC/UPC:
This refers to the type of connectors and the polishing style used on the fiber ends.
SC (Subscriber Connector):
A popular type of fiber optic connector with a push-pull latching mechanism, ensuring quick and stable connection.
APC (Angled Physical Contact) and UPC (Ultra Physical Contact):
These terms describe the polish on the fiber connectors. APC connectors have an 8-degree angled polish, reducing back reflection, which is crucial in high bandwidth applications. UPC connectors have a dome-shaped end-face, providing lower back reflection than flat polish connectors but higher than APC.
FTTH (Fiber to the Home):
This indicates that the cable is designed for installation in FTTH systems, where fiber optic lines are run directly to individual homes or buildings.
Drop Cable Singlemode Simplex:
Drop Cable:
A type of cable used to connect the main fiber optic line to individual homes or buildings. It is typically used for the "last mile" of installation in FTTH networks.
Singlemode:
Refers to the type of optical fiber. Singlemode fibers allow only one mode of light to propagate, making them suitable for high-speed and long-distance communication.
Simplex:
Indicates a single fiber within the cable, as opposed to duplex, which would have two fibers.
Butterfly Flat Indoor Design:
This describes the physical construction of the cable. "Butterfly flat" suggests a flat, thin profile, which is easier to install in indoor environments, particularly for running along baseboards, within walls, or in tight spaces.
FRP/KFRP Strength Members:
Fiber Reinforce Plastic or Kevlar Fiber Reinforce Plastic is used as strength members to provide mechanical strength and protection to the fiber optic within the cable.
LSZH Sheath:
LSZH (Low Smoke Zero Halogen) sheathing is used for the outer part of the cable, which is safer in terms of fire hazard as it emits low smoke and no halogen when exposed to high temperatures.
Customizable Connectors:
The ability for customers to specify the type of connectors they need based on their specific requirements.
In summary, the SC APC UPC FTTH Drop Cable Singlemode Simplex Butterfly Flat Indoor Patch Cord is a robust, high-performance optical fiber cable designed for last-mile connectivity in FTTH installations. It's characterized by its singlemode fiber, specialized connectors with precise polishing, flat and indoor-friendly design, reinforced strength, and safety-focused sheathing.
Connector Standards
SC Connectors:
Conform to multiple standards including TIA/EIA, FOCIS3, GR-326, NTT-SC, IEC61754-4, and JIS C5973. These standards ensure quality, performance, and interoperability in fiber optic communications.
LC Connectors:
Also adhere to various standards like TIA/EIA, FOCIS10, GR-326, EIA/TIA-604-10, IEC61754-20, and JIS C5973, which guarantee similar levels of reliability and efficiency.
Cable Specifications
Cable Type:
FTTH Drop Cable suitable for indoor applications.
Fiber Count:
1-2 fibers, offering flexibility in deployment.
Construction:
Butterfly Flat design for easier handling and installation.
Fiber Type:
Singlemode G.657A, optimized for FTTH networks.
Outer Jacket Material:
LSZH (Low Smoke Zero Halogen) available in black or white, enhancing safety in case of fire.
Strength Member Material:
FRP (Fiber Reinforced Plastic), providing robustness and crush resistance.
Cable Dimensions:
Approximately 2.0×3.0 mm, compact and manageable.
Weight:
10kg/km, indicating a relatively lightweight cable.
Tensile Strength:
100/200N for long/short term, showing good durability.
Crush Load:
300/1000 N/100mm for long/short term, indicating resilience under pressure.
Bending Radius:
10D/20D mm for long/short term, ensuring flexibility without damage.
Operating/Storage Temperature Range:
-40 to +85 °C, suitable for various environments.
Features
Good Mechanical and Environmental Characteristics:
Built to withstand various conditions.
Simple Structure, Light Weight:
Facilitates easy installation and maintenance.
Low Smoke Zero Halogen, Flame Retardant Sheath:
Enhances safety.
Novel Flute Design:
Simplifies stripping, splicing, and installation.
Two Parallel FRP Strength Members:
Improve electromagnetic interference resistance and mechanical strength.
Special Low-Bend-Sensitivity Fiber:
Provides high bandwidth and superior communication transmission properties.
Applications
Access Networks and LANs:
Ideal for local area network and wider access network deployments.
Fiber Optic Communication Systems:
Suitable for various fiber optic communication setups.
FTTH Indoor Building:
Specifically designed for indoor FTTH applications.
Optical Fiber Connected and Transmitted Equipment:
Compatible with a range of fiber optic equipment.
Ideal Solution for FTTH Indoor Fiber Patch Cable
The Butterfly Flat Indoor Drop Cable is particularly suited for FTTH networks. It's capable of directly connecting LAN to end users and is designed for indoor cabling and access networks. The use of low-bend-sensitivity fiber ensures high bandwidth and excellent communication transmission, making it a preferred choice for FTTH indoor applications.
